STA-RITE JWPA5C - REPAIR PARTS LIST - 1 & 1-1;2 HP; Key part numbers for 1 and 1-1;2 HP models.

13
JWPA5E-2A, -2A4
JWPA5E-230A, 230A2
JWPA5EL-2A
JWPA5EL-2A1, -2A2 JWPA5F-2A
JWPA5E7-2A4 JWPA5FL-A, -2A
JWPA5E7L-2A JWPA5FL-2A1, -2A2
JWPA5E7L-2A1, -2A2 JWPA5F7L-2A4, -2A1
JWPAXYE-A2* JWPA5YEL-A, -A1, -A2 JWPA5YFL-A, -A2
Key JWPAXYEL-A2* JWPA5YE7L-A1, -A2 JWPA5YF7L-A1, -A2
No. Description Qty. 1 HP/ 2 Speed 1 HP 1-1/2
1 Motor 115V/60H/1 Ph. 1 – AS920ELL AS920FLL
1 Motor, 115V, 2-Speed 62003-2021 62003-2021 62003-2032
1 Motor, 230V – AS923EL –
2 Water Slinger 1 C69-2 C69-2 C69-2
3 Collar, Union (†) 2 U11-182P1 U11-182P1 U11-182P1
4 Adapter, Union (†) 2 U11-201P1 U11-201P1 U11-201P1
5 O-Ring (†) 2 U9-226 U9-226 U9-226
6 Seal Plate 1 17301-0150 17301-0150 17301-0150
7 O-Ring 1 U9-357 U9-357 U9-357
8 Shaft Seal 1 U109-358SS U109-358SS U109-358SS
9 Impeller 1 C105-228PG C105-228PG C105-228PG
10 Front Plate Assembly (Includes Key No. 10A) 1 C101-272PS C101-272PS C101-272PS
10A Wear Ring** 1
11 Drain Plug, 1/4”, taped 2 WC78-40T WC78-40T WC78-40T
12 Trap Cover, W/ O-Ring 1 – C103-139P1 C103-139P1
12 Trap Cover (Biguanide Resistant) 1 – C103-139P3 C103-139P3
13 O-Ring, Trap Cover 1 – U9-229 U9-229
14 Strainer Basket 1 – C108-33P C108-33P
15 Trap Body 1 – C53-23P1 C53-23P1
16 Pipe Plug, 1/4” NPT (with O-Ring) 2 – U178-920P U178-920P
17 Bolt, Hx Head, 1/4-20 x 1-3/4” 6 30387-0005 30387-0005 30387-0005
18 Gasket, Suction 1 – C20-123 C20-123
19 Capscrew, 5/16-18x1-1/4” 4 – U30-64SS U30-64SS
20 Lockwasher, 5/16” 4 – U43-11SS U43-11SS
21 Washer, 5/16” Flat 4 – U43-41SS U43-41SS
• Cord Assembly, Straight Plug
(-A2,-230A2, -2A2) 1 U117-1117 U117-1117 U117-1117
• Cord Assembly, Twist-Lok Plug (-A1, -2A1) 1 – 31953-0101 31953-0101
• Cord Assembly, 6’ Non-UL (-2A4) 1 – 31953-0116 31953-0116
• Not Illustrated.
* Models JWPAXYE-A2 and JWPAXYEL-A2 do not include Suction Trap Assembly.
** Not available separately.
(†) Union Half Package is included with Models: JWPAXYE-A2, JWPAXYEL-A2, JWPA5D-230A, JWPA5DL-2A, JWPXYD-A2. JWPXYDL-A2, JWPA5E-
230A, JWPA5E-230A, JWPA5EL-2A, AND JWPA5FL-2A ONLY.
Model Numbers that have a number “7” in them, for example JWP5YE7L-A2 come with the seal plate discharge port in a horizontal positon. Part Numbers
without the number “7” in them, for example JWP5YEL-A2 come with the seal plate discharge port in a vertical position.
Model Numbers ending in “-230A”, “-2A”, or “-A” do not come with a cord. Model Numbers including the letter “Y” are 2-speed.
Order PKG 115 for a complete suction trap assembly.
2133 1195
10
10A
11
12
1
2
5
8
9
7
3
4
6
13
14
15
16
16
17
18
19
20
21
Union Half Package
(C198-17M)
Trap Basket Assembly
(Pkg 115)

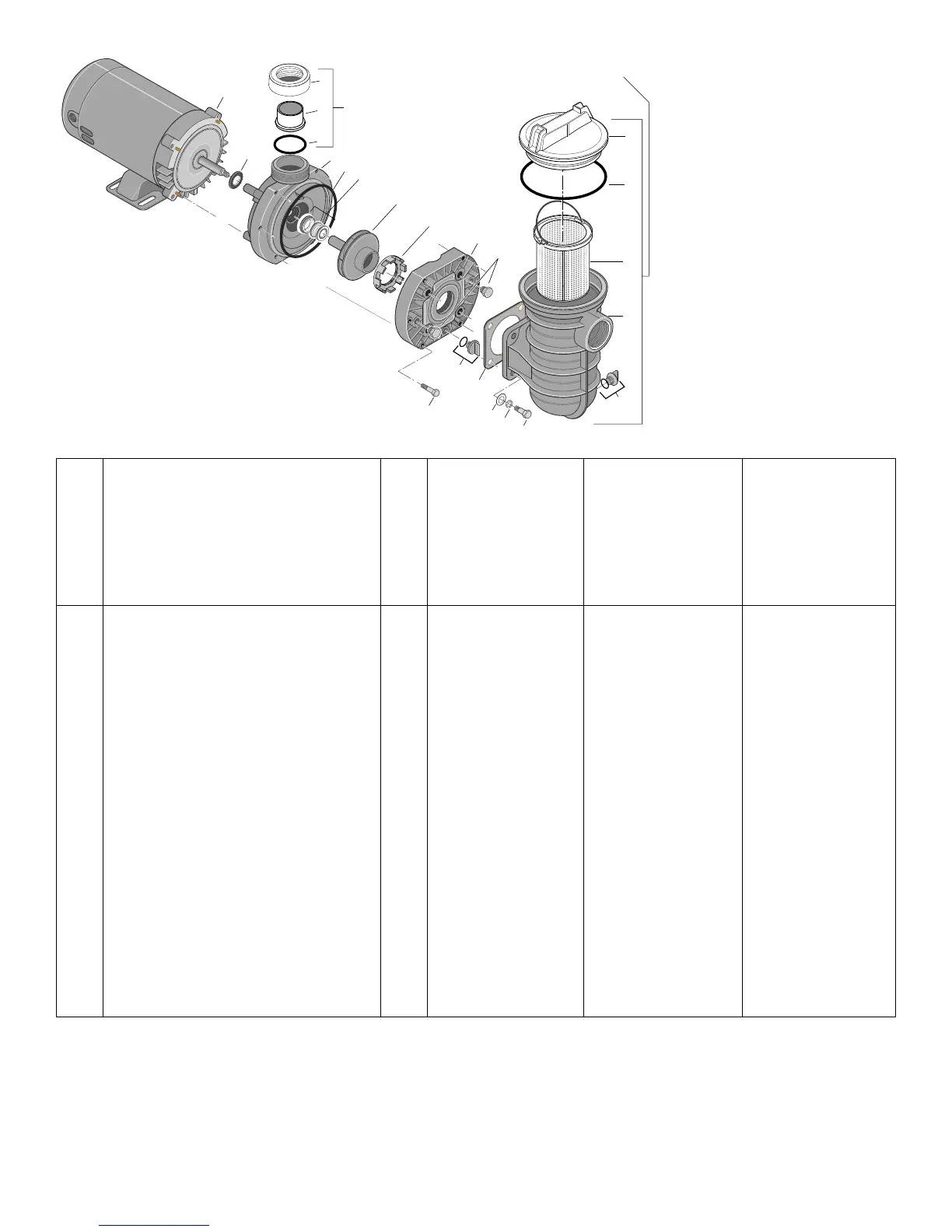

REPAIR PARTS LIST
1 and 1-1/2 HP
