STA-RITE MPE - Repair Parts List

13
1
2
3
4
5
6
7
8
8A
8B
See
Box A
See
Box A
11
12
13
14
15B
15A
16
17
18
19
20
21
22
23
24
9
10

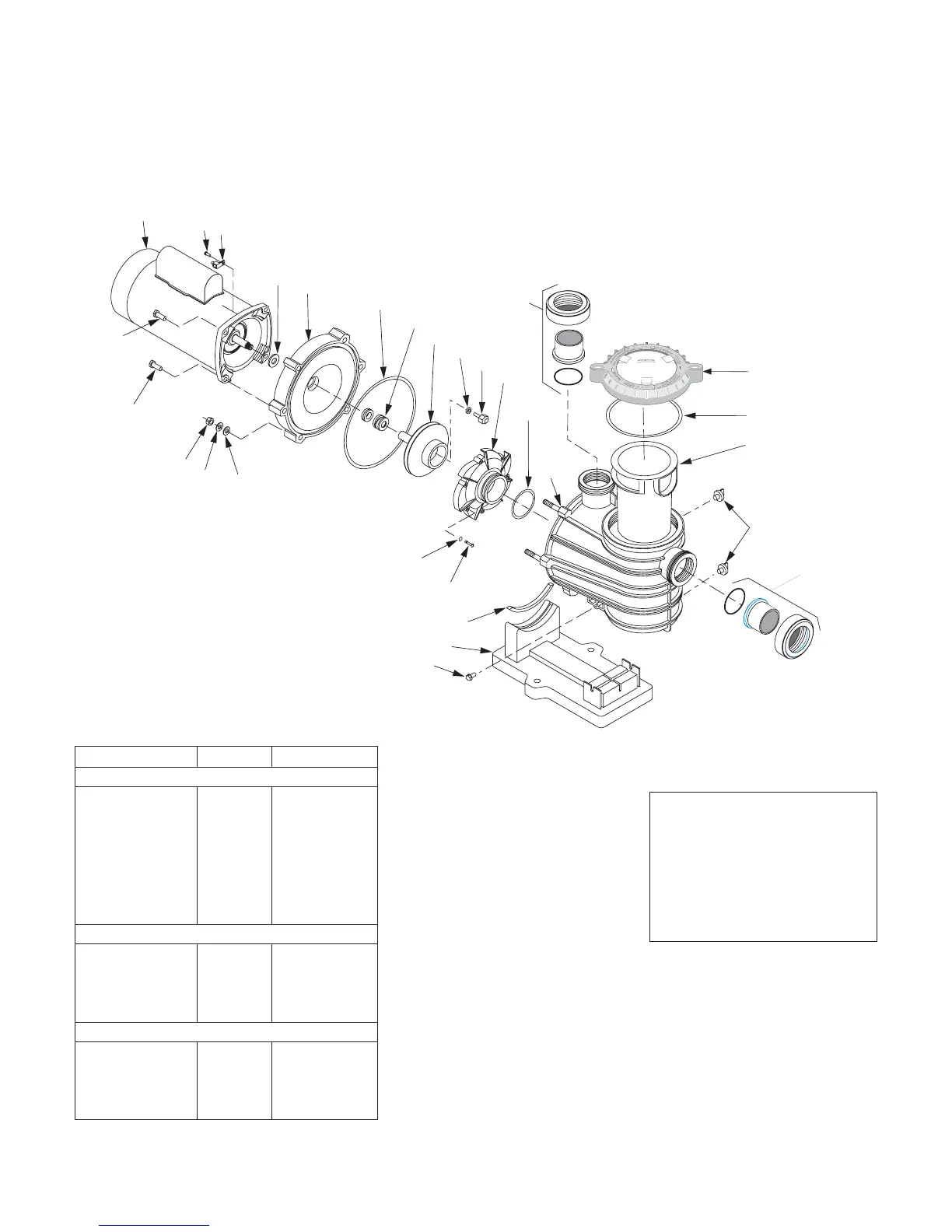

REPAIR PARTS LIST
DYNA-PRO™ POOL PUMP
1/2 through 2-1/2 HP Models
Single Speed and Two Speed
Model No. HP Motor (Key No. 1)
Single Speed 115/230/60/1
MPRA6D-204L 3/4 A100DLL
MPRA6E-205L 1 A100ELL
MPRA6F-206L 1-1/2 A100FLL
MPEA6D-204L 3/4 AE100DLL
MPEA6E-205L 1 AE100ELL
MPEA6F-206L 1-1/2 AE100FLL
MPE6C-204L 1/2 AE100CHL
MPE6D-205L 3/4 AE100DHL
MPE6E-206L 1 AE100EHL
230/60/1
MPRA6G-207L 2 A100GLL
MPEA6G-207L 2 AE100GLL
MPEAA6G-208L 2-1/2 AE100G5LL
MPE6F-207L 1-1/2 AE100FHL
MPE6G-208L 2 AE100G5HL
Two Speed 230/60/1
MPRA6YF-206L 1-1/2 A100FLL-Y
MPEA6YG-207L 2 AE100GLL-Y
MPEAA6YG-208L 2-1/2 AE100G5LL-Y
MPE6YF-207L 1-1/2 AE100GLL-Y
MPE6YG-208L 2 AE100G5LL-Y
For quick disconnect pipe connections,
purchase separately:
Pkg. 188 2" Slip 1/2 Union Kit or
Pkg. 189 2" NPT 1/2 Union Kit.
Includes:
U11-200PS Union Collar
U9-362 O-Ring
U11-196P 2" Slip adapter or
U11-199P 2" NPT adapter.
Box A
