STA-RITE MPFA6F-147L - Repair Parts List

12
1
2
3
4
5
6
7
8
8A
8B
See
Box A
See
Box A
11
12
13
14
15B
15A
16
17
18
19
20
21
22
23
24
9
10
1169 0794

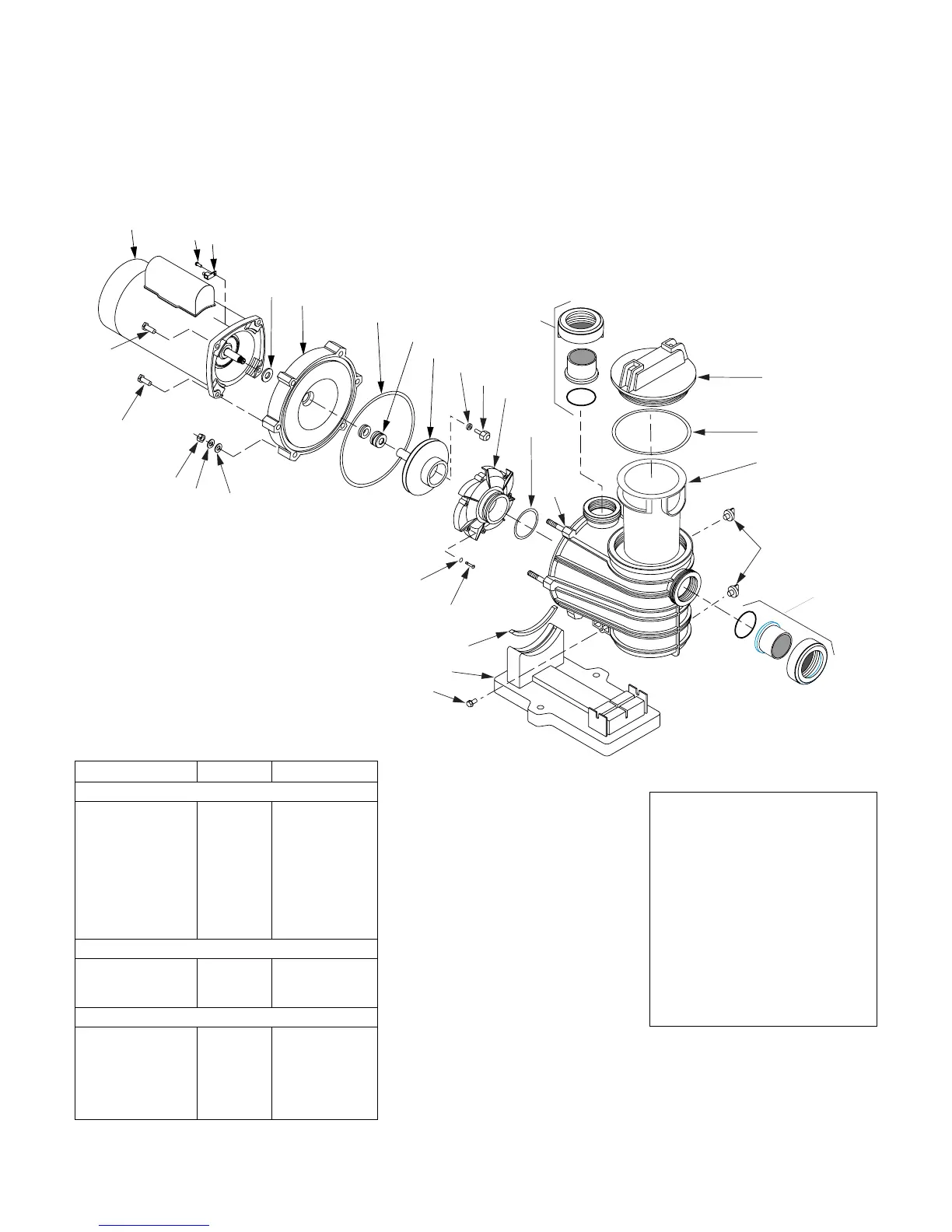

REPAIR PARTS LIST
DYNA-GLAS™ & DYNA-MAX™ POOL
PUMP
3/4 through 2-1/2 HP Models
Single Speed and Two Speed
Model No. HP Motor (Key No. 1)
Single Speed 115/230/60/1
MPRA6D-146L 3/4 A100DLL
MPRA6E-147L 1 A100ELL
MPRA6F-148L 1-1/2 A100FLL
MPEA6D-146L 3/4 AE100DLL
MPEA6E-147L 1 AE100ELL
MPEA6F-148L 1-1/2 AE100FLL
MPFA6D-176L 3/4 A100DLL
MPFA6E-146L 1 A100ELL
MPFA6F-147L 1-1/2 A100FLL
230/60/1
MPRA6G-155L 2 A100GLL
MPEA6G-155L 2 AE100GLL
MPEAA6G-168L 2-1/2 AE100G5LL
Two Speed 230/60/1
MPRA6YF-174L 1-1/2 A100FLL-Y
MPRA6YF-174LS 1-1/2 A100FLL-Y
MPEA6YG-175L 2 AE100GLL-Y
MPEA6YG-175LS 2 AE100GLL-Y
MPEAA6YG-168L 2-1/2 AE100G5LL-Y
MPEAA6YG-168LS 2-1/2 AE100G5LL-Y
For quick disconnect pipe
connections, purchase separately:
Pkg. 188 2" Slip 1/2 Union Kit
or
Pkg. 189 2" NPT 1/2 Union Kit.
Note that these kits include both the
inlet and outlet connectors.
Includes:
U11-200P Union Collar - Qty 2
U9-362 O-Ring - Qty 2
U11-196PS 2" Slip adapter - Qty 2
or
U11-199PS 2" NPT adapter. - Qty 2
Box A
