TABLE I - RECOMMENDED FUSING AND WIRING DATA – P6E MODELS
Serv. to Motor - Dist. in Ft. (M)
Motor Branch Fuse Max Load Voltage/ 0-100' 101-200' 201-300'
HP Rating Amps* Amps Hz/Phase (0-30 M) (30-60 M) (60-90 M)
P6E Models:
1/2 15 11.0 115/60/1 14(2) 10(5.5) 8(8.4)
3/4 20 13.8 115/60/1 12(3) 10(5.5) 8(8.4)
1 25 16.0 115/60/1 12(3) 8(8.4) 6(14)
1/2 15 5.5 230/60/1 14(2) 14(2) 14(2)
3/4 15 6.9 230/60/1 14(2) 14(2) 14(2)
1 15 8.0 230/60/1 14(2) 14(2) 14(2)
1-1/2 15 10.4 230/60/1 14(2) 12(3) 12(3)
2 15 11.2 230/60/1 14(2) 12(3) 12(3)
3 25 15.8 230/60/1 12(3) 12(3) 10(5.5)
* Time delay fuses are recommended instead of standard fuses in any motor circuit.

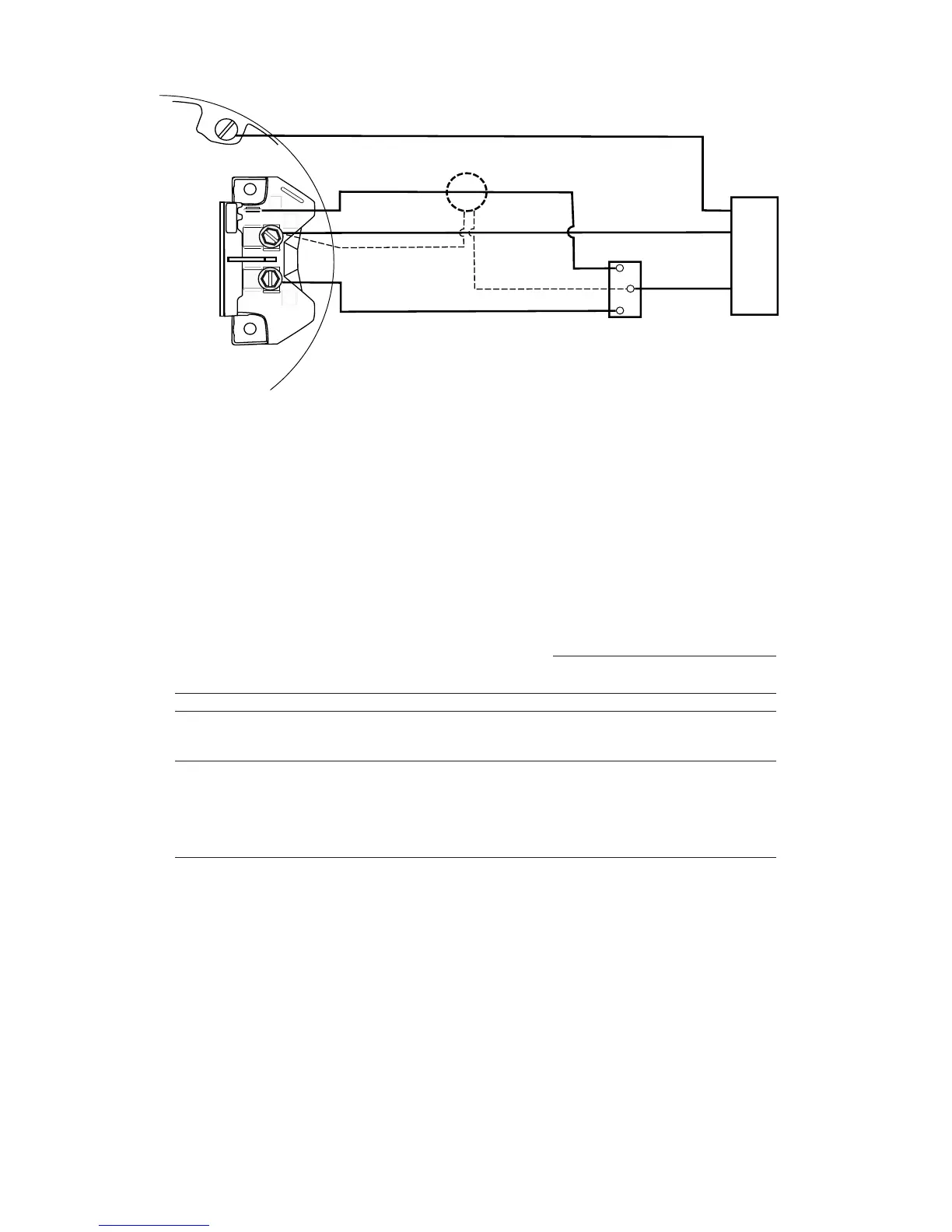

Figure 4C - 2-Speed Motor Wiring Diagram
L2=COM
L1=H
I
A=
LOW
A
L2
L1
Power Supply for
Optional Timer.
Low Speed
High Speed
Circuit
Protector
Remote
SPDT
Switch
Ground (Green)
Common
If using timer, Connect
Timer Motor to Low Speed Only
Minimum switch and timer amp rating must equal Branch Fuse
Rating given in "Recommended Fusing and Wiring Data" table.
230
Volt
Lines
Back of
motor
with
Terminal
Board
