15

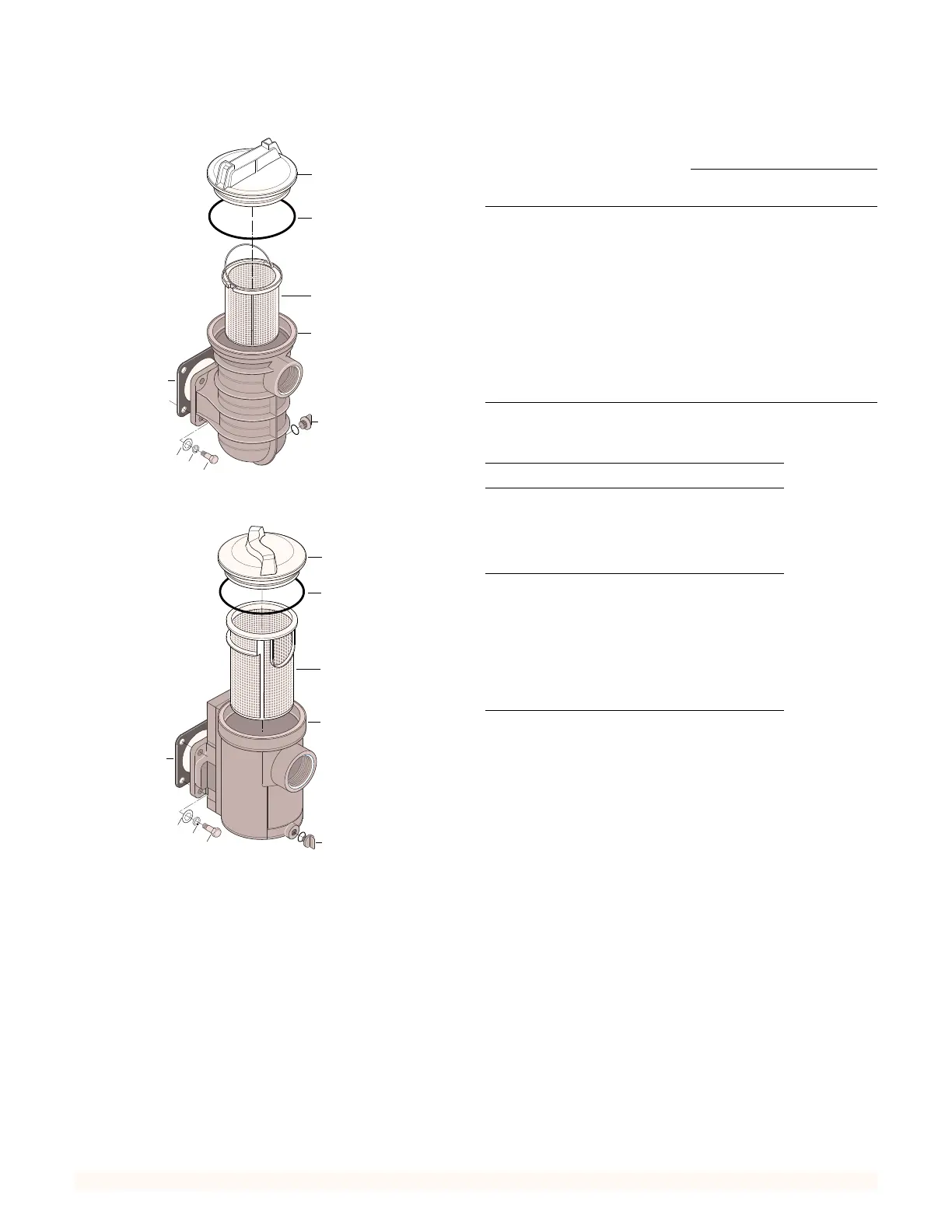

5” TRAP/ADAPTER ASSEMBLY
PKG. 115
6” TRAP/ADAPTER ASSEMBLY
PKG. 161
REPAIR PARTS LIST - 5” and 6” TRAPS*
Part No.
Key Part Pkg. 115 Pkg. 161
No. Description 5” Trap 6” Trap
1 Trap Cover C3-139P1 16920-0011
2 O-Ring - Cover U9-229 16920-0012
3 Strainer Basket C108-33P 16920-0017
4 Trap Body C153-53P1 C153-58P
5 Gasket C20-123 C20-123
6 Pipe Plug - 1/4” NPT U178-920P U178-920P
(w/O-Ring)
7 Capscrew-5/16-18x1-1/4” U30-64SS(4) U30-64SS(4)
8 Washer, Lock 5/16” U43-11SS(4) U43-11SS(4)
9 Washer, Flat 5/16” U43-41SS(4) U43-41SS(4)
*Quantity one unless otherwise indicated ( ).
Overhaul Kits
H.P. Parts-Pak Number
1/2 PP1011
3/4 PP1014
1 PP1016
1-1/2 PP1018
Kit includes: Impeller, Diffuser, Shaft Seal,
Gaskets, O-Rings, Hardware, Shims, Wear Rings
and Inserts.
Not available for two and three horsepower PE
series pumps.
Seal/Gasket Kit
Kit includes Shaft Seal, Gaskets, and O-Rings.
For all horsepower PE series pumps.
Parts-Pak No. PP1000.
