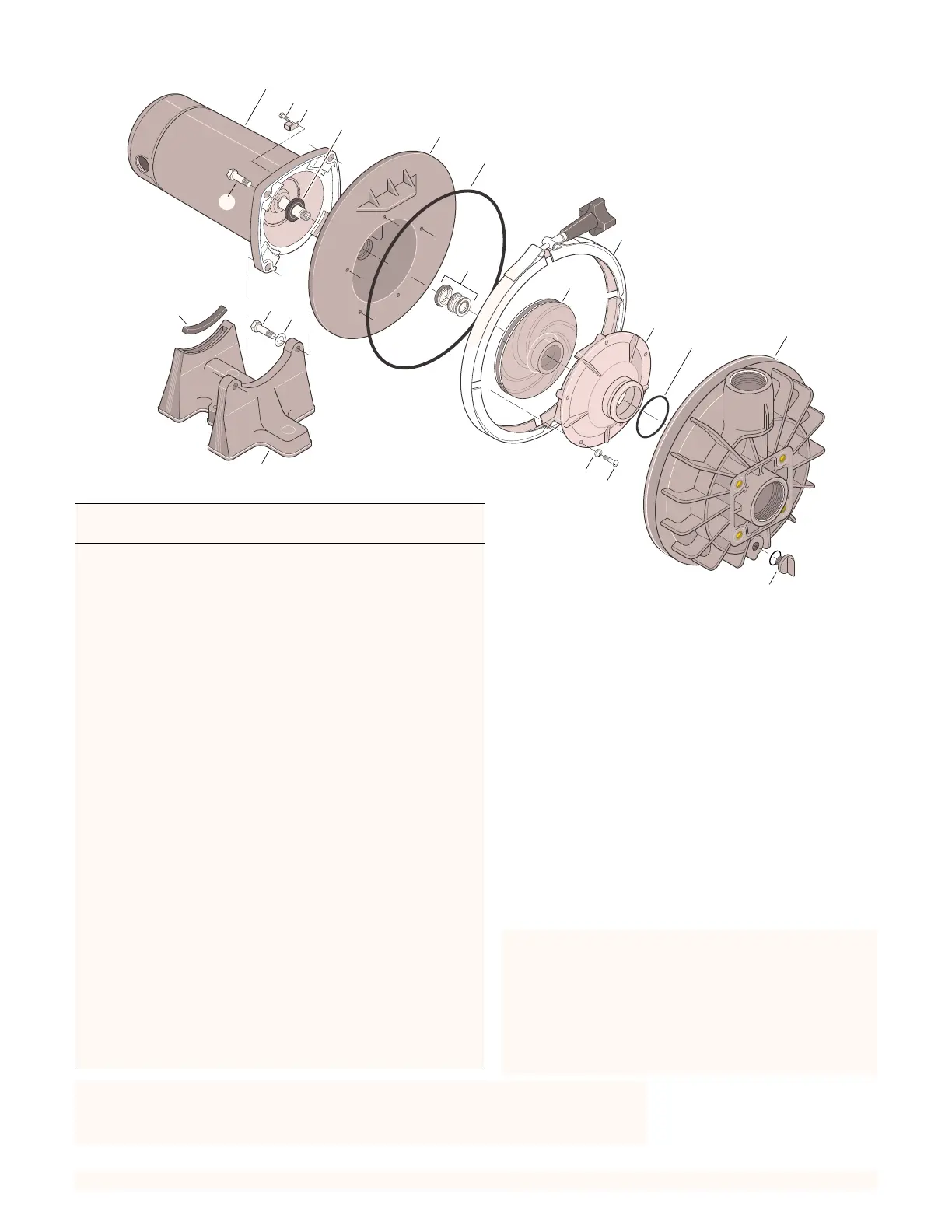

Key Part Part
No. Description Qty. No.
1 Motor 1 Chart, Page 17
2 Screw, #10-32x1/2” 1 U30-692SS
3 Bonding Lug 1 U17-568
4 Water Slinger 1 C69-2
5 Seal Plate 1 C203-193P
6 O-Ring 1 U9-228A
7 Shaft Seal 1 17304-0100
8 Clamp 1 C19-37A
• Clamp Knob 1 WC36-22
9 Impeller 1 Chart, Page 17
10 Diffuser* 1 Chart, Page 17
11 Screw, #8-32x7/8” 5 U30-542SS
12 Washer, #8 Lock 5 U43-21SS
13 Diffuser O-Ring 1 U9-226
14 Tank Body 1 C176-47P1
15 1/4” NPT Drain Plug 1 U178-920P
16 Base w/Motor Pad* 1 C104-42P
17 Motor Pad* 1 C35-11
18 Washer, Flat 2 U43-42SS
19 Screw, 3/8-16x1-3/4” Hex Hd.** 2 U30-77SS
20 Screw, 3/8-16x1” Hex Hd.*** 2 U30-74SS
• Reducer 2”x1-1/2” 1 C78-7P
• Decal “Suitable for outdoor use...” U27-635
• Decal “IMPORTANT-Do not use pipe
dope...” WC27-27
• Voltage Sticker - 230 Volts U27-68
• Voltage Sticker - 115/230 Volts U27-153
• Tag, “CAUTION” 61002-0002
• Tag, “WARNING” 61002-0012
• Tag, “CAUTION, WARNING
(bonding)” C63-12
• Nameplate U33-121
• Not illustrated.
* Models with “LS” suffix use Steel Base, Part No. J104-9C, and Motor Pad Part No. C35-5.
** Not used on models with “LS” suffix.
*** Models with “LS” suffix use 4 3/8x16x1” Capscrews Part No. U30-74SS.
PE5, PE52, P2R5, P2RA5, and P2R52 models include
5” trap, Pkg. 115.
PE6 and P2RA6 models include 6” trap, Pkg. 161.
PEX, PEAX, P2RX and P2RAX models do not include trap. To
meet NSF Standard 50 requirements, these pumps must be
installed with an NSF listed hair and lint strainer.
For trap parts, see Page 15.
