Mounting Location
Mount the instrument on a suitable vertical surface which will not get hot. Choose a
position where the instrument is not exposed to direct heat from the kiln - especially
when the kiln door or lid is open.
Mounting
Wall Mounting Bracket

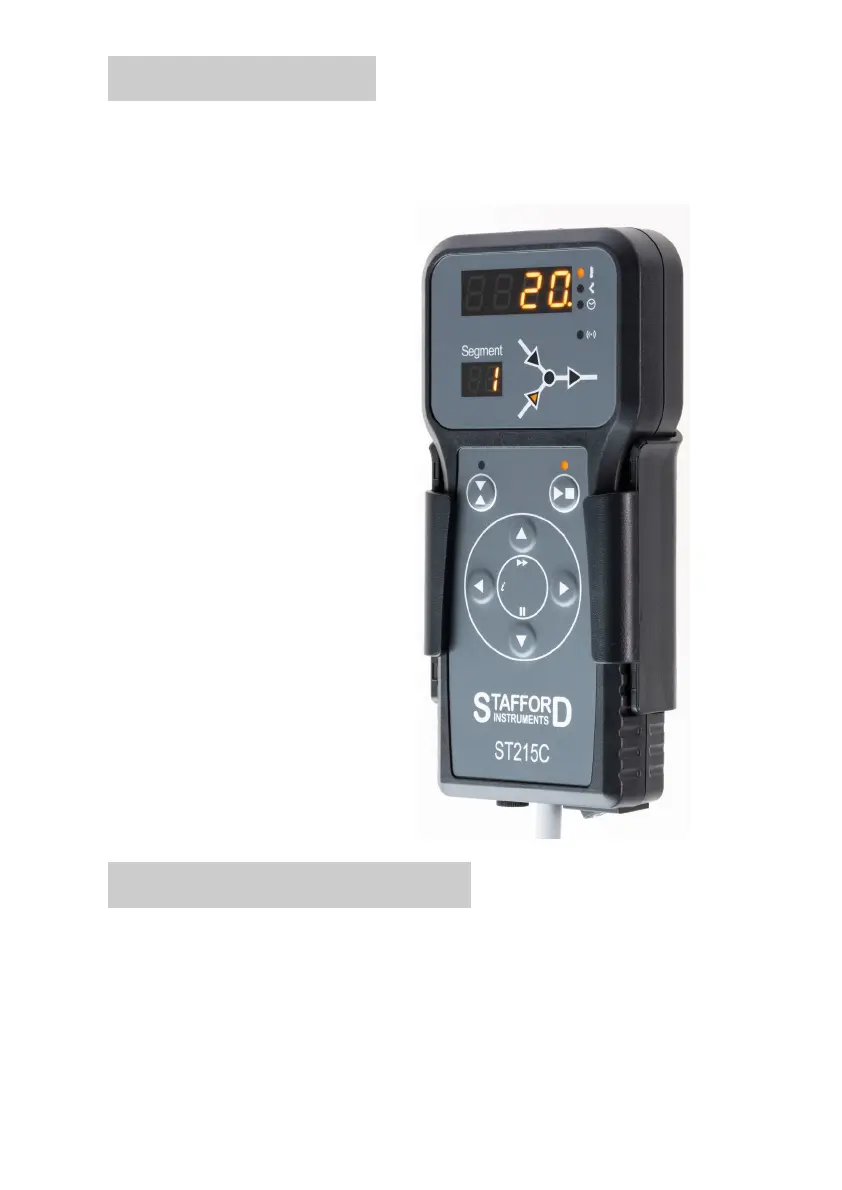

This is a ‘holster’ style ABS moulded
bracket which can be attached with 2
screws. The bracket mounting holes
are spaced 70mm. The instrument
can be removed from this bracket for
in-hand programming if required.
Spare wall brackets are available
from Stafford Instruments Ltd. - our
part number: X00224
The coil of the each kiln contactor should be suppressed with an RC suppressor.
The RC suppressor must be connected directly across the coil terminals on the
contactor. Suitable proprietary RC suppressors are often available from contactor
manufacturers as add-on blocks.
A suitable RC suppressor with insulated wire leads (fly leads) is the Okaya Electric
XEB1201B. These are available from Stafford Instruments Ltd. - our part number:
X00104.
Contactor Coil Suppression
