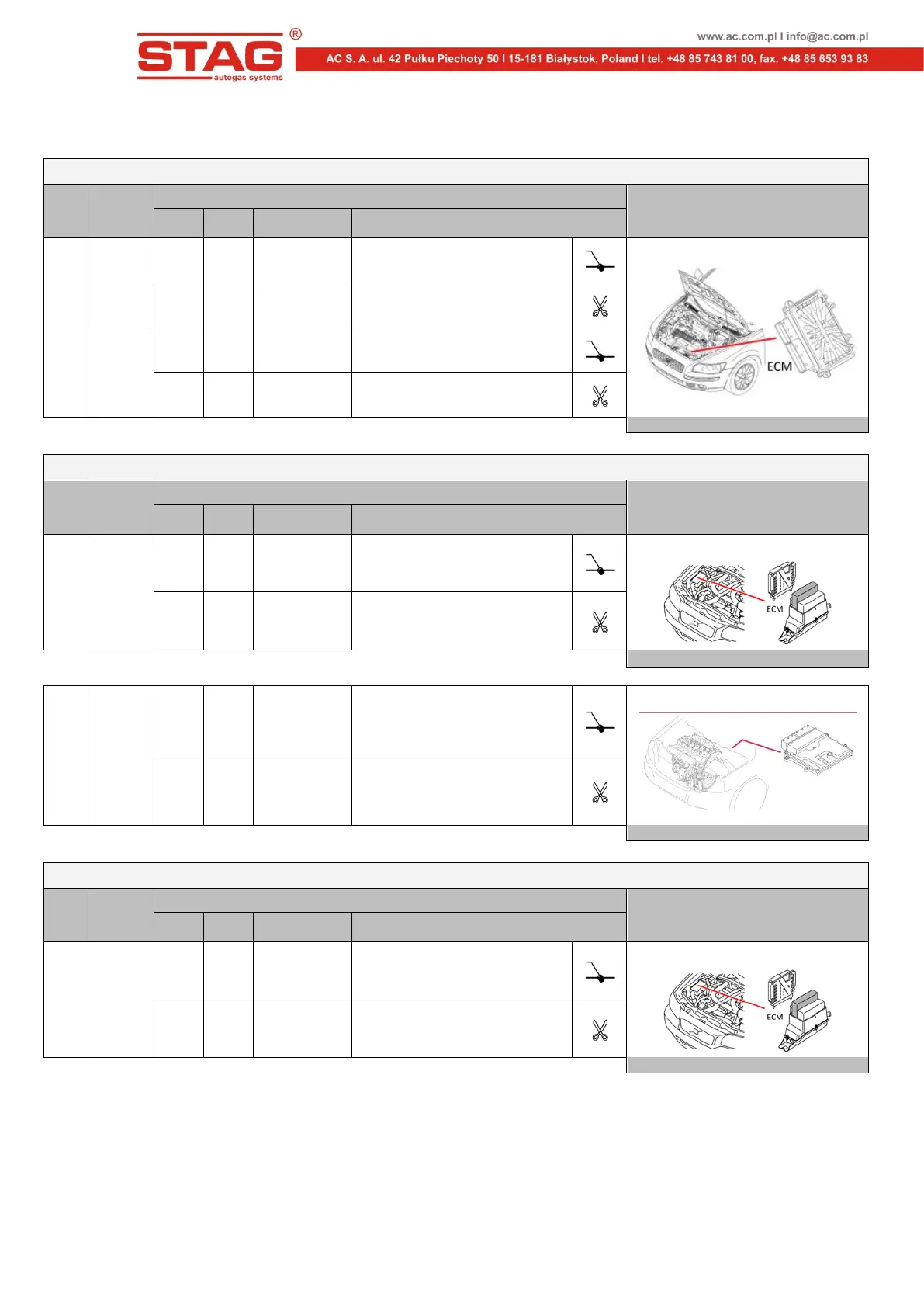

Tab. 1 Table of versions
VOLVO S40
Engi
ne
Year of
manufac
ture
Petrol ECM harness
Installation notes
Conne
ctor
Pin
No.
Wire colour Signal
2.5T
2005
B 20 white-black Fuel pump control signal
ECM location
A 91 white-blue Fuel pressure sensor signal
2006
÷
2011
B 21 white-black Fuel pump control signal
A 89 white-blue Fuel pressure sensor signal
Wiring diagram: SCH 1.
VOLVO S60
Engi
ne
Year of
manufac
ture
Petrol ECM harness
Installation notes
Conne
ctor
Pin
No.
Wire colour Signal
2.5T
2004
÷
2009
B 47 yellow Fuel pump control signal
ECM location
A 2 green-grey Fuel pressure sensor signal
Wiring diagram: SCH 1.
3.0T
2010
÷
2011
B 21 yellow-orange Fuel pump control signal
ECM location
A 71 blue-red Fuel pressure sensor signal
Wiring diagram: SCH 1.
VOLVO S60 R
Engi
ne
Year of
manufac
ture
Petrol ECM harness
Installation notes
Conne
ctor
Pin
No.
Wire colour Signal
2.5T
2004
÷
2009
B 47 yellow Fuel pump control signal
ECM location
A 2 green-grey Fuel pressure sensor signal
Wiring diagram: SCH 1.
