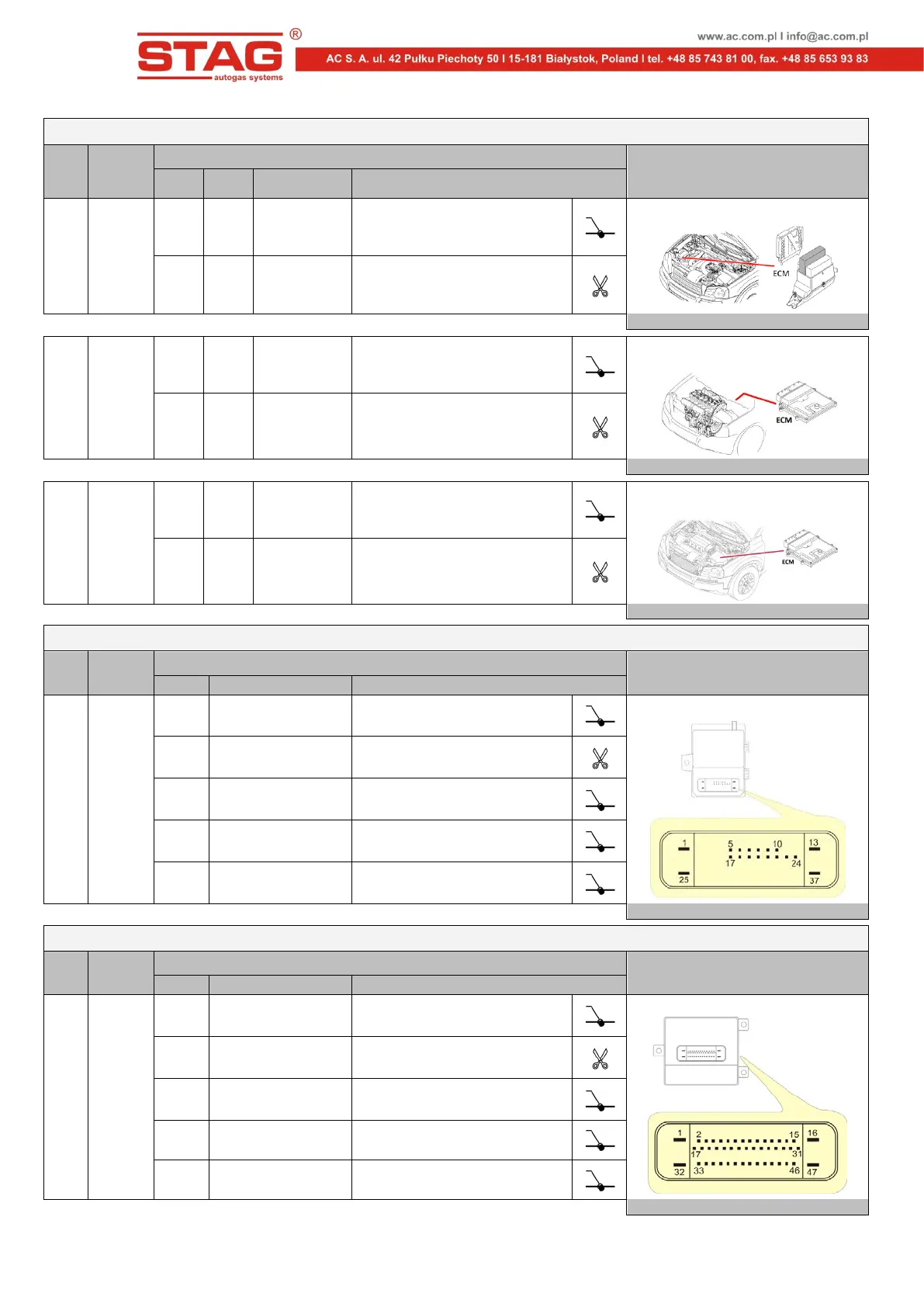

Stag FPE-A - Page 16

AC S.A. All rights reserved. Any unauthorized copying, reproduction, publishing, dissemination, disclosing or other use of information presented herein, in whole or as part, particularly photographs,
drawings, trademarks, etc., may lead to prosecution or civil proceedings.
7
VOLVO XC90
Engi
ne
Year of
manufac
ture
Petrol ECM harness
Installation notes
Conne
ctor
Pin
No.
Wire colour Signal
2.5T
2004
÷
2011
B 47 yellow Fuel pump control signal
ECM location
A 2 green-grey Fuel pressure sensor signal
Wiring diagram: SCH 1.
3.2
2007
÷
2011
B 21 yellow Fuel pump control signal
ECM location
A 71 green-grey Fuel pressure sensor signal
Wiring diagram: SCH 1.
4.4
2007
÷
2011
B 20 yellow Fuel pump control signal
ECM location
A 71 green-grey Fuel pressure sensor signal
Wiring diagram: SCH 1.
OPEL ASTRA
Engi
ne
Year of
manufac
ture
Fuel pump controller harness
Installation notes
Pin No.
Wire colour
Signal
1.4T
1.6
2009
÷
2014
2009
1 red-blue Battery +12V supply
Connector of fuel pump controller
10 blue-white Fuel pressure sensor signal
13 grey Fuel pump control signal
21 violet-green Ignition switch
25 black GROUND
Wiring diagram: SCH 2.
OPEL INSIGNIA
Engi
ne
Year of
manufac
ture
Fuel pump controller harness
Installation notes
Pin No.
Wire colour
Signal
2.8T
2009
÷
2013
1 black GROUND
Connector of fuel pump controller
10 blue-white Fuel pressure sensor signal
15 violet-blue Ignition switch
32 red-white Battery +12V supply
47 grey Fuel pump control signal
Wiring diagram: SCH 2.
