The Stagg AS series speakers are a range of 2-way full-range speaker systems designed for various applications, including musical instrument amplification, event production, DJ setups, and general venues. These speakers are characterized by their modern design, ease of use, and portability.

Function Description:

The AS series speakers offer multiple connectivity and mixing possibilities. They include a USB media player for playing audio files directly and integrate Bluetooth™ technology for wireless audio streaming. A key feature is True Wireless Stereo (TWS) pairing, which allows two compatible AS series speakers to link wirelessly for a true stereo sound experience.

ASB models (AS8B, AS10B, AS12B, AS15B) are battery-powered and come equipped with UHF microphones (one or two depending on the model), making them suitable for use in locations without immediate power access.

Important Technical Specifications:

Model	System Type	Freq. Response (-3dB)	Sensitivity (1m/1w)	Woofer	Compression Driver	Crossover	Max SPL	Rated Power (at 4Ω)	Max. Power (at 4Ω)	Dimensions (WxHxD mm)	Weight	Battery (ASB models)
AS8	2-way active Class D	70Hz-20kHz	96dB	8", 1.5 voice coil	1"	2.5kHz	116dB	125W	250W	260 x 390 x 240	5kg	N/A
AS10	2-way active Class D	60Hz-20kHz	96dB	10", 1.5 voice coil	1"	2.5kHz	118dB	125W	250W	300 x 470 x 260	6kg	N/A
AS12	2-way active Class AB	60Hz-20kHz	96dB	12", 1.5 voice coil	1"	2.5kHz	120dB	150W	300W	380 x 590 x 310	9.5kg	N/A
AS15	2-way active Class AB	40Hz-20kHz	96dB	15", 1.5 voice coil	1"	2.5kHz	125dB	200W	400W	420 x 680 x 360	13kg	N/A
AS8B	2-way active Class D	70Hz-20kHz	96dB	8", 1.5 voice coil	1"	2.5kHz	116dB	125W	250W	260 x 390 x 240	6kg	Li 11.1V/2000mAH
AS10B	2-way active Class D	60Hz-20kHz	96dB	10", 1.5 voice coil	1"	2.5kHz	118dB	125W	250W	300 x 470 x 260	7kg	Li 11.1V/2000mAH
AS12B	2-way active Class AB	60Hz-20kHz	96dB	12", 1.5 voice coil	1"	2.5kHz	120dB	150W	300W	380 x 590 x 310	11kg	Lead battery 12V/7AH
AS15B	2-way active Class AB	40Hz-20kHz	96dB	15", 1.5 voice coil	1"	2.5kHz	125dB	200W	400W	420 x 680 x 360	15kg	Lead battery 12V/7AH

All models feature Bluetooth™ Module with TWS (True Wireless Stereo) capability. Input connectors vary: AS8 and AS10 use XLR/RCA, while AS12 and AS15 use XLR/JACK 6.3 + 3.5 /RCA. ASB models also use XLR/RCA for AS8B/AS10B and XLR/JACK 6.3 + 3.5 /RCA for AS12B/AS15B.

Usage Features:

Media Player: Integrated audio player with USB input and Bluetooth™™ connectivity (version 5.0, 2.4G frequency, 20m distance, SBC/AAC codecs).
Microphone Input: Balanced XLR connector for public address (no phantom power). AS12/AS15/ASB models may also include 6.35mm (1/4") Jack plug and a talk-over switch.
Line In: 2xRCA connectors for connecting external audio sources like CD players, digital media players, or mixers. AS12/AS15/ASB models may also include an XLR connector and a 3.5mm (1/8") jack plug.
Line Out: RCA or XLR output for connecting to a mixer, amplifier, or another active speaker.
Equalizer:
- AS8/AS10/AS8B/AS10B: Treble and bass frequencies with a range of +10dB/-10dB.
- AS12/AS15/AS12B/AS15B: 5-band equalizer with faders for different frequencies.
Volume Controls: Independent controls for Microphone, Aux/Line Input, and a Master Volume.
Echo Effect: Available on AS12/AS15/ASB models, applied to the microphone input.
UHF Wireless Microphone Section: (ASB models only) Includes controls for UHF microphones.
Battery Management Section: (ASB models only) Displays battery level and charging status.

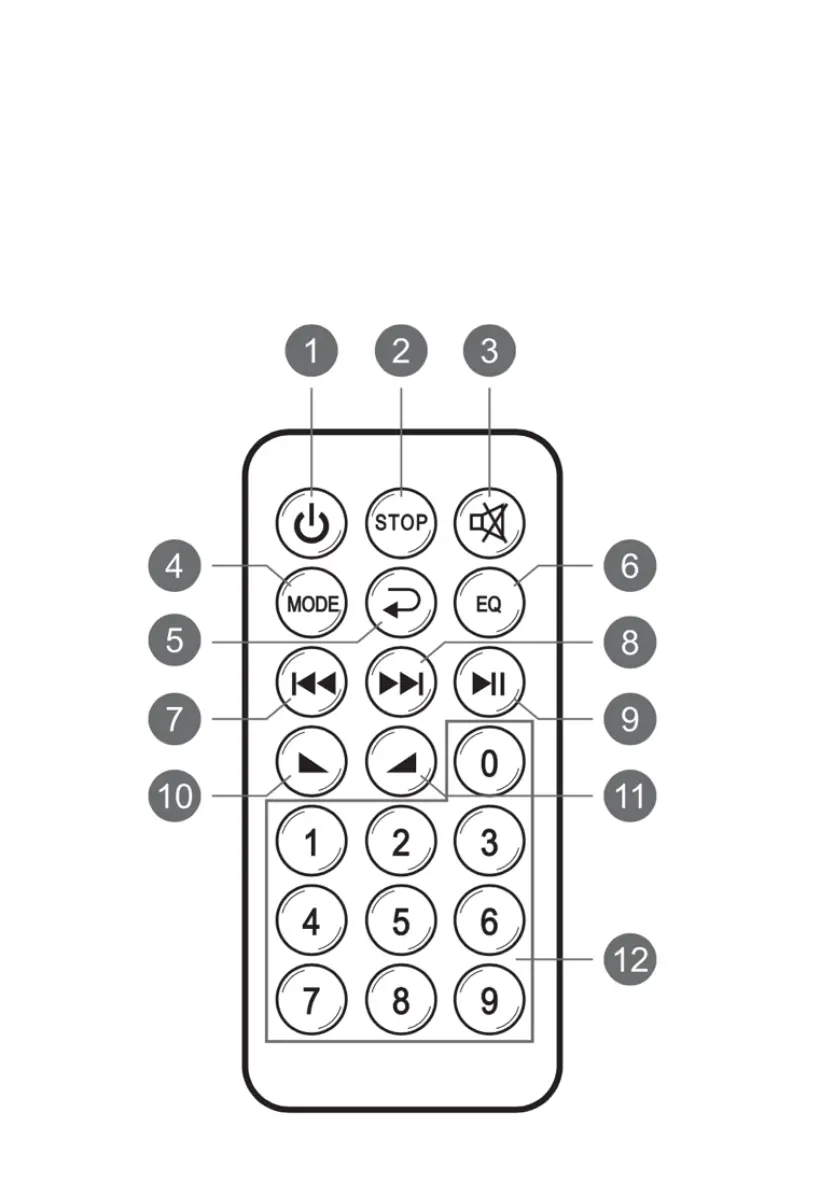

Media Player Remote Control: Allows control of media playback, mode switching, EQ presets, volume, and track selection from a distance.
True Wireless Stereo (TWS): Allows two compatible AS series speakers to be paired wirelessly for stereo sound. One speaker acts as the "Master" (paired to the audio source), and the other as the "Slave" (paired to the Master). Only audio from the media player (Bluetooth™™ or USB) is broadcasted via TWS; microphone or auxiliary inputs are not sent to the slave speaker.

Maintenance Features:

Safety Instructions: Emphasizes reading the manual, keeping it for future reference, checking for transport damage, indoor use only, ensuring proper ventilation, matching power supply voltage/frequency, proper earthing, avoiding extreme temperatures, inspecting power wires, avoiding long continuous operation, preventing liquid/metal ingress, regular cleaning, and preventing unsupervised children from using the unit.
Troubleshooting: Advises disconnecting mains power if not used for a long time. In case of serious operating problems, stop using the unit immediately.
Repairs: Users are explicitly warned not to open or attempt to repair the unit themselves, as this can lead to damage or malfunction and voids the warranty. All repairs should be handled by an authorized technical assistance center.
Fuse Replacement: Disconnect mains power before replacing fuses and use only the same type.
Damage: The housing and components must be replaced if visibly damaged.
Packaging: Retain original packaging for transport, especially for warranty issues.
Environmental Responsibility: The product conforms to WEEE directive, indicating it should not be disposed of with normal household waste but taken to an approved recycling center at the end of its useful life.

Stagg AS12 - Page 14
