Stagnoli ICARUS Series User Manual

Istruzioni Instructions Anleitungen Instructions instrucciones
12

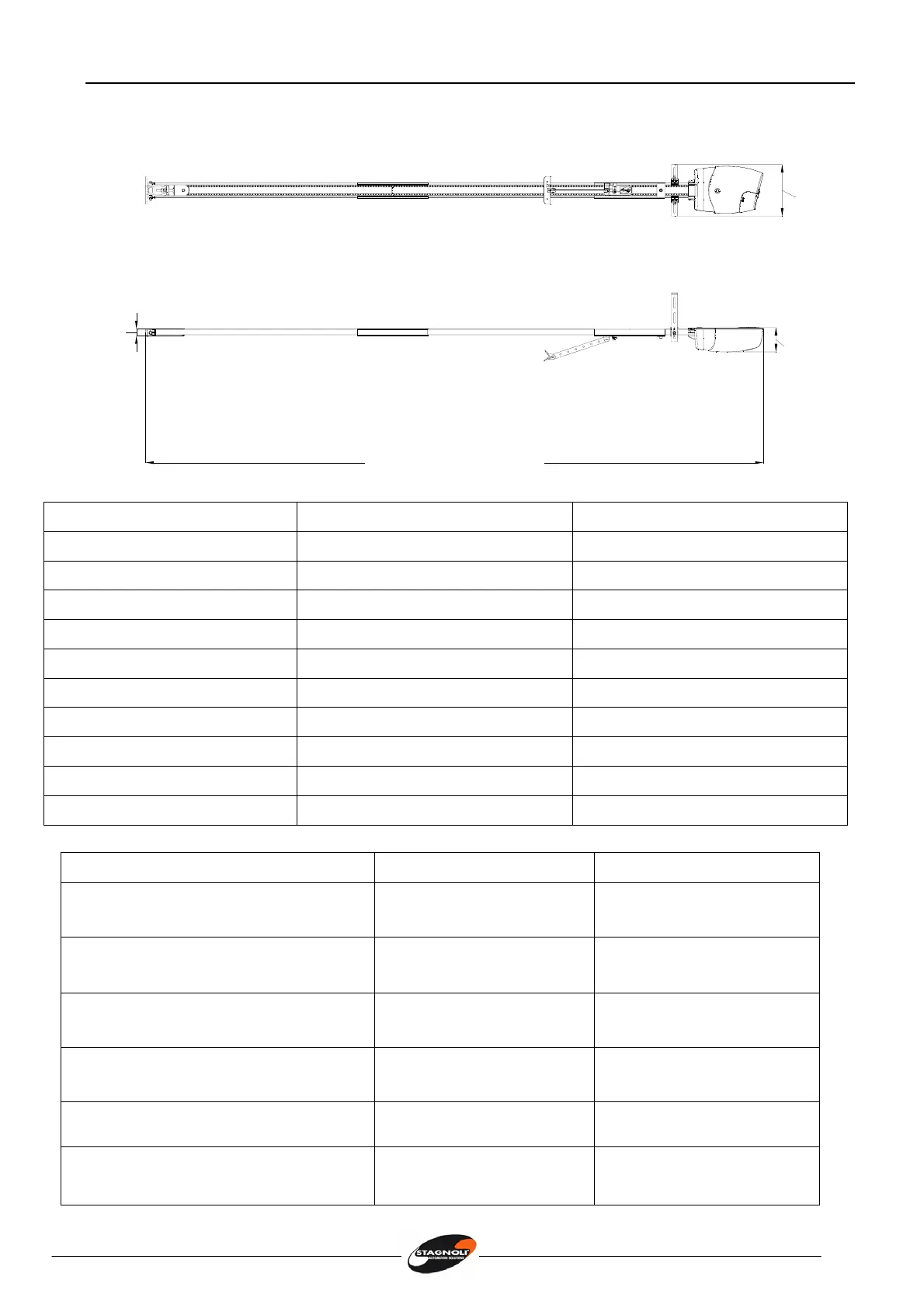

TECHNICAL FEATURES AND INSTALLATION INSTRUCTIONS
254
Max lenght. 3045-3345-3545
Rail lenght 2100-2300-2500)
120
35
ICARUS 600 ICARUS 1000
Power supply 230V ∼ (50Hz) 230V ∼ (50Hz)
Max. Absorption 1 A 1.3 A
Max. Power 200 W 275 W
Motor supply 24 Vdc 24 Vdc
Max. rail length (mm) 2,300 – 2,500 2,300 – 2,500
Speed (m/min) 9,3 9,3
Max. force (N) 600 1000
Working temperatures -20 °C; +70 °C -20 °C; +70 °C
Max. Working Time (Tw) 4 min. 6 min.
Weight (Kg) 12,9 – 13,4 13,5 – 14
Limiti d’impiego ICARUS 600 ICARUS 1000
Overhead door ≤ 80 Kg
Max. 2200 X 2500 mm (H x L )
x
Sectional door ≤ 80 Kg
Max. 2300 X 3000 mm (H x L )
x
Overhead door ≤ 150 Kg
Max. 2300 X 4000 mm (H x L )
x
Sectional door ≤ 150 Kg
Max. 2300 X 5000 mm (H x L )
x
Sectional door ≤ 150 Kg
Max. 2400 X 4500 mm (H x L )
x
Sectional door ≤ 150 Kg
Max. 2500 X 4000 mm (H x L )
x
