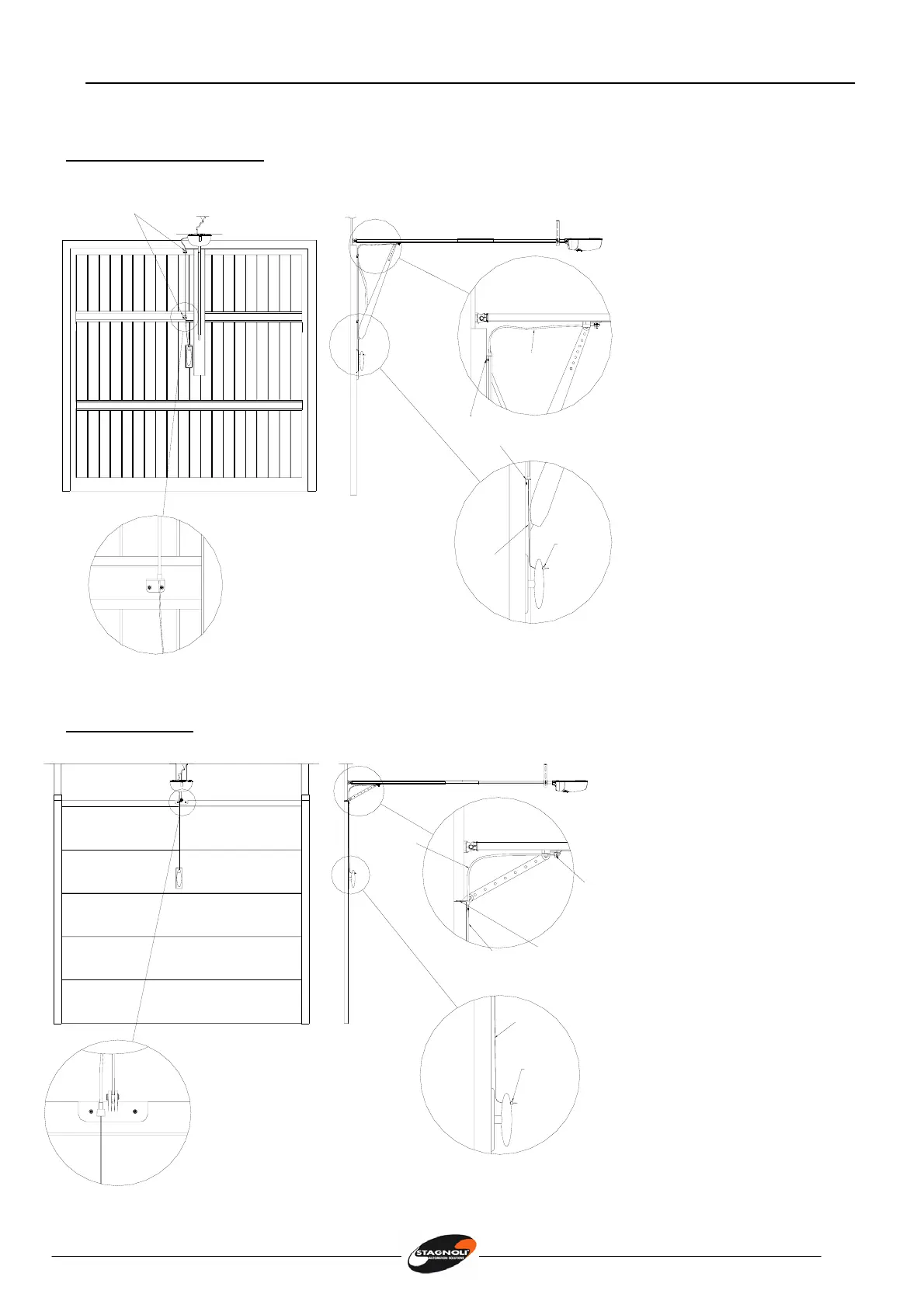

MANUAL CONTROL
overhead garage doors
Fix the two cable and sheath
holder squares; insert the ends
of the sheath in their place on
the slide and on the first
bracket; insert the sheath,
take the metal cable and
thread it through the eye on
the slide lever; insert it in the
squares, threading it through
the handle (already
perforated) and lock it with
the clamp that loads the slide
spring. By turning the handle
from 90° to 180° the geared
motor is released.
Sectional doors
Insert the ends of the sheath
in their place on the slide and
on the door fastening
bracket; insert the sheath,
take the metal cable and
thread it through the eye on
the slide and then through the
bracket; lastly, thread it
through the handle (already
perforated) and lock it with
the clamp, loading the slide
spring. By turning the handle
from 90° to 180° the geared
motor is released.
Cable and sheath
holder square (n° 2)
Cable
Sheath
Cable and sheath
holder square
Cable
clamping
unit
slide
lever
eye
Cable
clamping
unit
Cable
Door fastening
bracket
Cable
Sheath
