Stahl ST50 - Page 26

4 Installation
26 01.2019
ba-o.1.8.0-en-3.1
ST 10 / ST 20 / ST 30
(1)
chain box
(2)
suspension bolt
(3)
splint
(4)
saftey washer

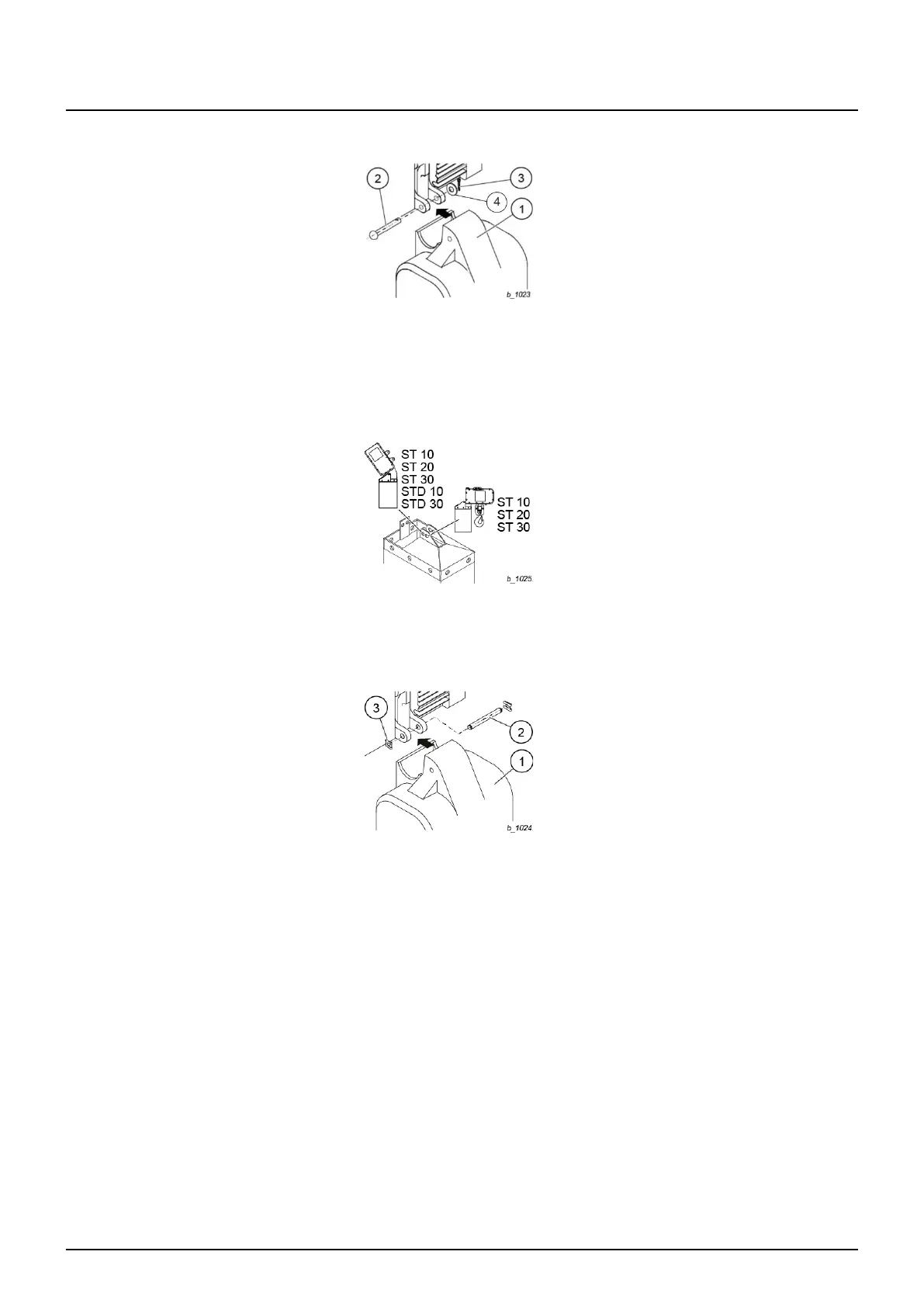

Fig. 26
1. Draw out splint (3)
2. Remove the suspension bolt (2) and saftey washer (4).
3. Remove the chain box (1).
4. Assembly takes place in reverse order.
5. Splint (3) muss erneuert werden. Splint must be replaced.
Fig. 27
Select the appropriate drilled hole depending on the version of the attachement
ST 32 / ST 50 / ST 60
(1)
chain box
(2)
suspension bolt
(3)
clip
Fig. 28
1. Remove clip (3).
2. Remove suspension bolt.
3. Remove the chain box.
4. Assembly takes place in reverse order.
