Stahl ST50 - Runway Endstop; Disassemble and Assemble Chain Bucket

4 Installation
01.2019 25
ba-o.1.8.0-en-3.1

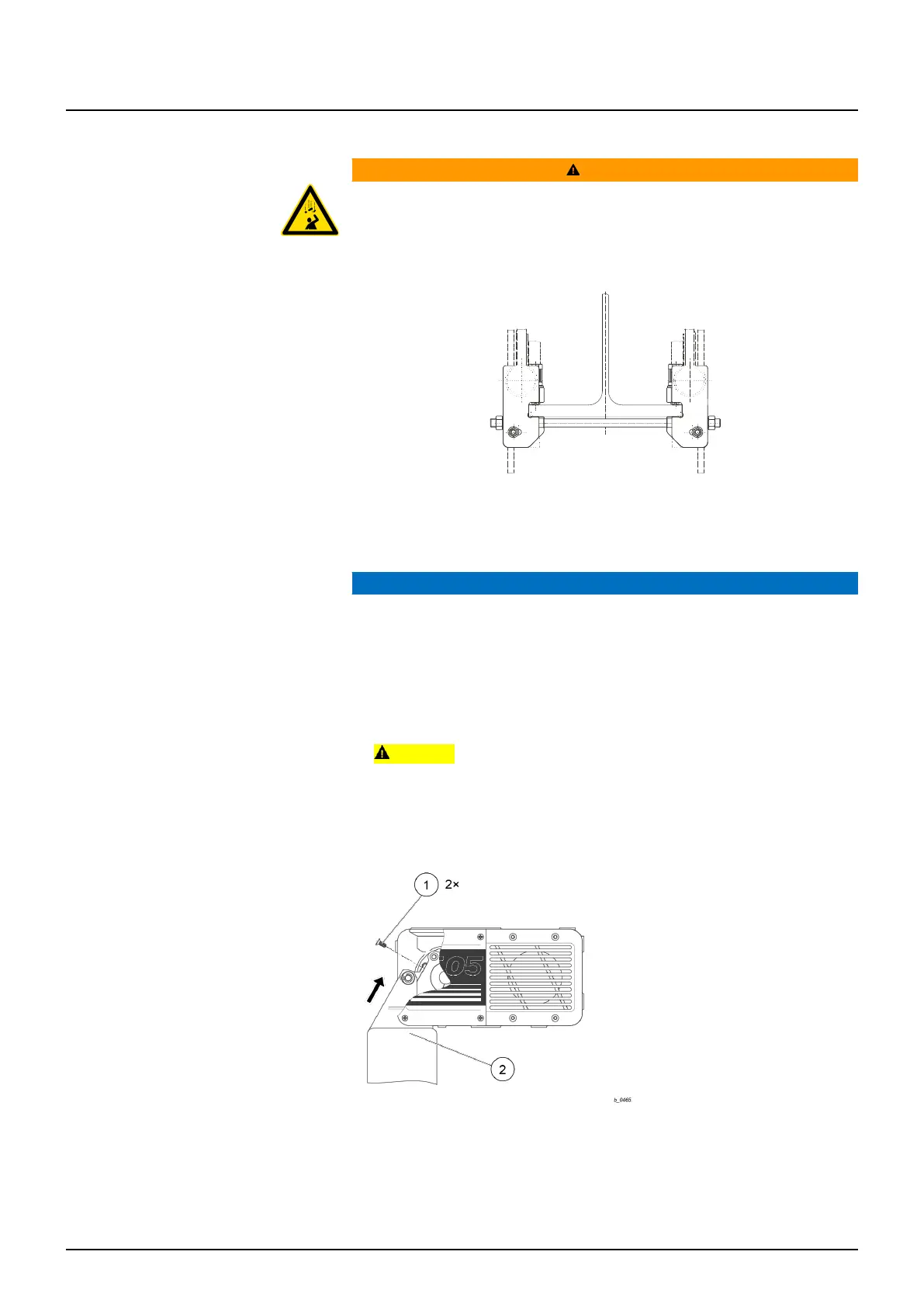

4.8 Runway endstop
WARNING
Danger of falling parts
If there are no end stops, there is a danger of the trolley travelling over the end of the
runway.
➢ Mount suitable end stops at the end of the runway before commissioning the hoist.
Fig. 24
4.9 Disassemble and assemble chain bucket
NOTICE
Danger of chain damage
• The chain must not grind on components.
• Lubricate chain with the chain grease supplied!
• Chain bucket must move freely.
• For max. chain length see sticker on the chain bucket.
4.9.1 Disassemble chain bucket
1. CAUTION An unsecured chain bucket can fall and cause injuries.
2. Secure the chain bucket (2) against toppling and falling.
3. Move the chain hoist downwards, into the bottom limit position.
➢ Make sure that the chain bucket (2) is empty.
ST 05
(1)
2×screw
(2)
Chain bucket
Fig. 25
1. Unscrew screws (1).
2. Hoist the chain bucket (2) in the direction of the arrow and remove.
3. Assembly takes place in reverse order.
