4100PT Unpacking and Assembling
8. Set the stepper back in its upright position. (See Figure 2).
9. Install Rear Leg [#25790] by slightly lifting the rear of the stepper
and slide the front tube of the rear leg into the rear tube of the
stepper.(See Figure 2).
Align the holes in the two tubes and loosely install (qty 2) 3/8-16 x
2.437” screws [#25807], (qty 4) 3/8 flat washers [#21462], and (qty
2) 3/8-16 hex nuts [#22029]. Once both screws are in place tighten
using a 9/16” open end wrench and a 7/32” allen wrench. (See Figure
2)

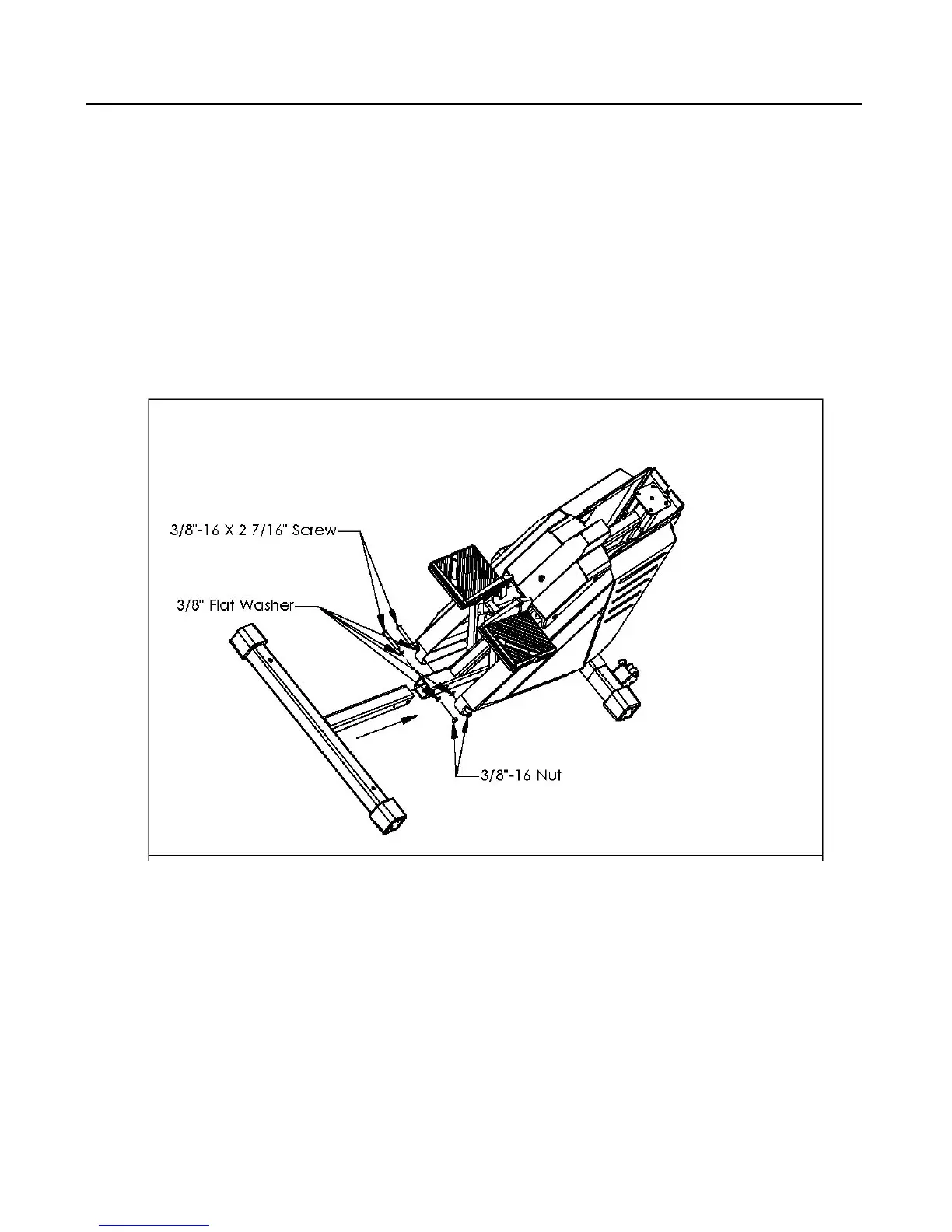

Figure 2
