- 14 -
4100PT Unpacking and Assembling
10.
Install Handle [#25716] by aligning the four holes on the
bottom flange of the handle with the four holes on the top front
flange of the stepper. The large hole with the contact heart rate
cable should be facing forward, away from the user position. (See
Figure 3)
11. Loosely install (qty 4) 3/8-16 x 1” screws [#25796], (qty 8) 3/8
flat washers [#21462], and (qty 4) 3/8-16 hex nuts [#22029]. Once
all four screws are in place, tighten using a 9/16” open end wrench
and a 7/32” allen wrench. (See Figure 3)

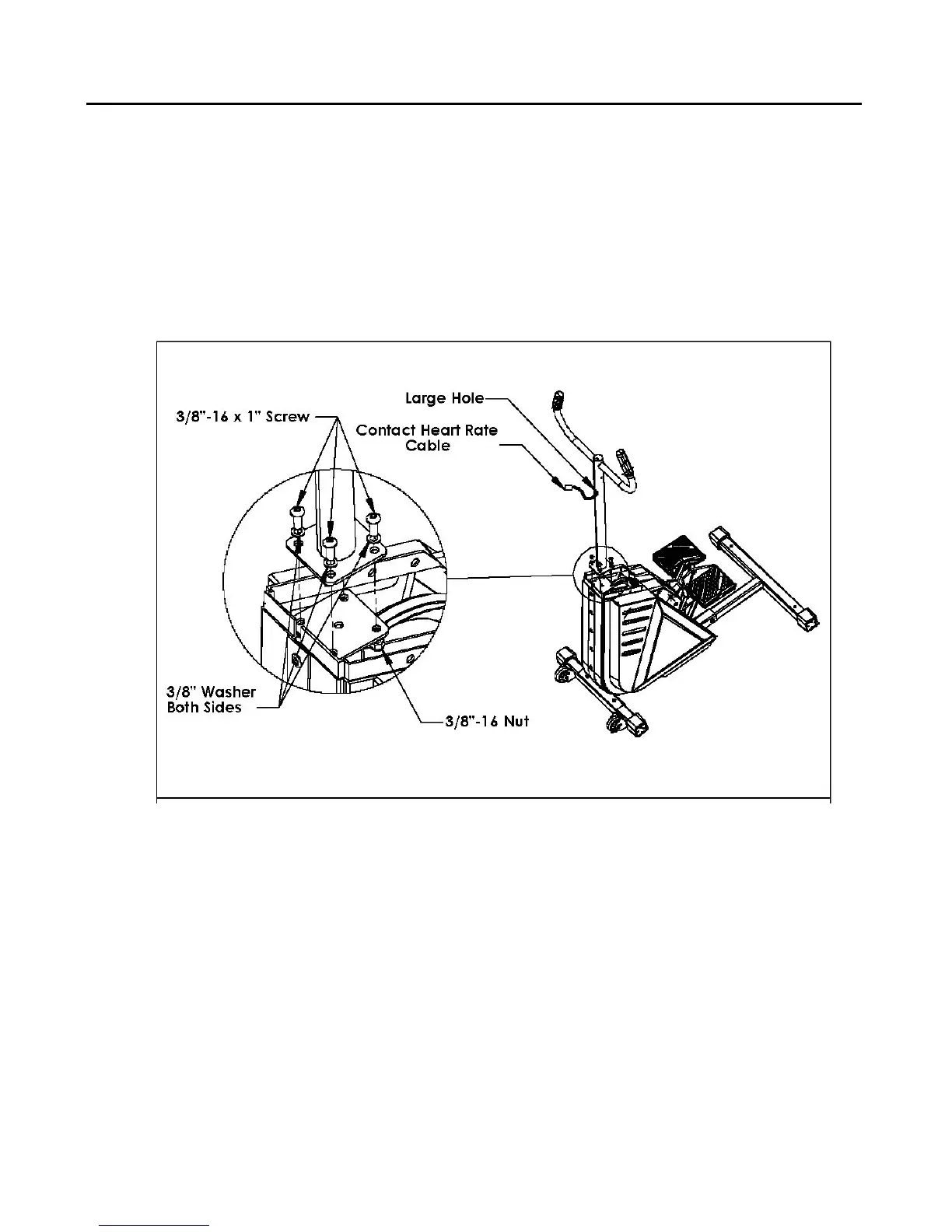

Figure 3
