ASSEMBLY INSTRUCTIONS
10

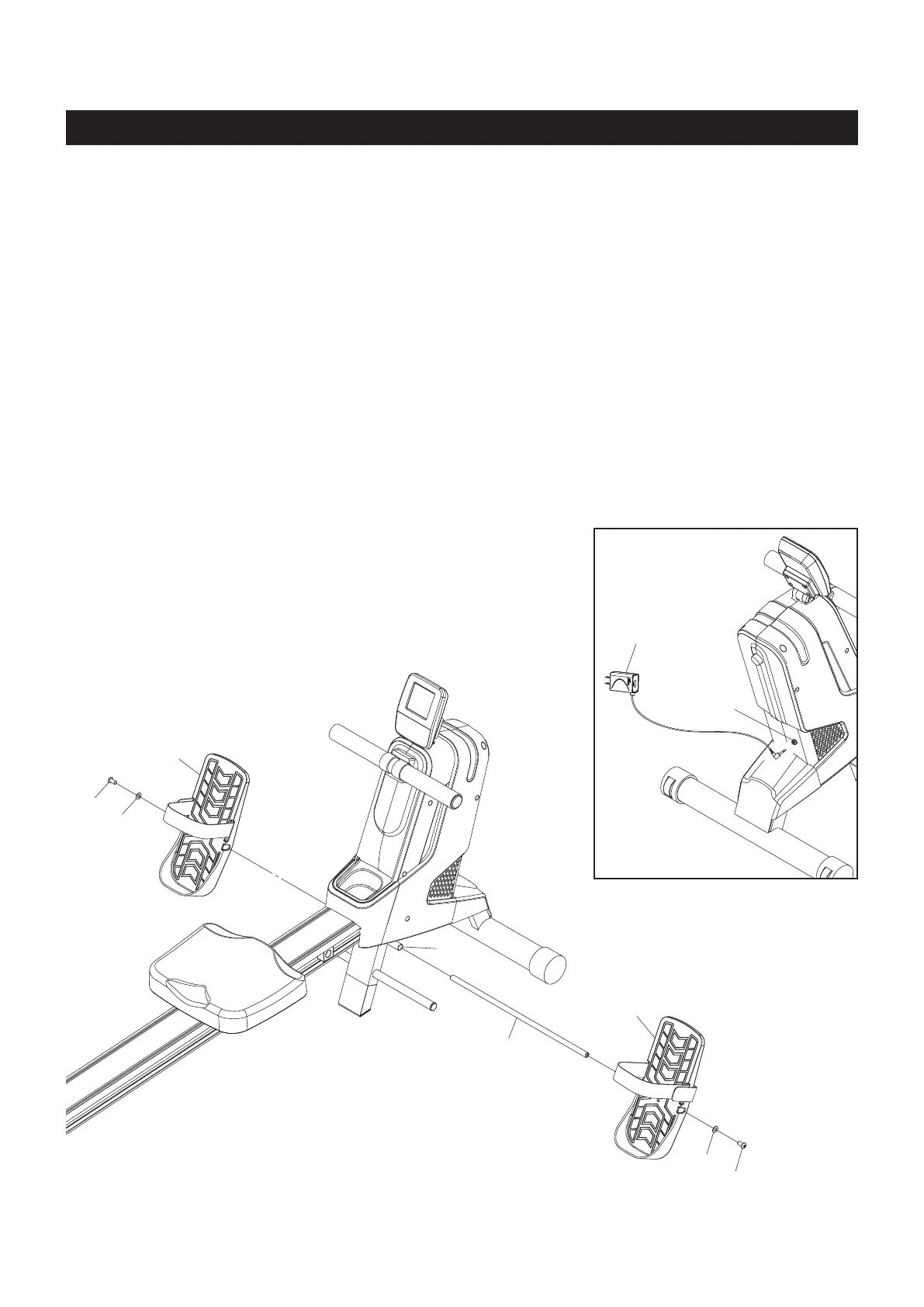

STEP 8
Insert the PEDAL SHAFT(6) through the tube located on the BASE FRAME(3). Slide a PEDAL CAP(19)
onto each end of the PEDAL SHAFT(6). Then secure the PEDAL CAPS(19) with BUTTON HEAD
BOLTS(M8x1.25x15mm)(60) and LARGE WASHERS(M8)(83) at both ends of the PEDAL SHAFT(6).
You need to use two Allen Wrenches to tighten the BUTTON HEAD BOLTS(M8x1.25x15mm)(60) at both
ends of the PEDAL SHAFT(6) at the same time.
STEP 9
Refer to detail view. Plug the ADAPTER(102) into the SOCKET of the POWER WIRE(100) located on the
front of the rower. Plug the ADAPTER(102) into an electrical outlet.
83
60
19
83
60
6
19
3
102
100
