ASSEMBLY INSTRUCTIONS
9
STEP 6

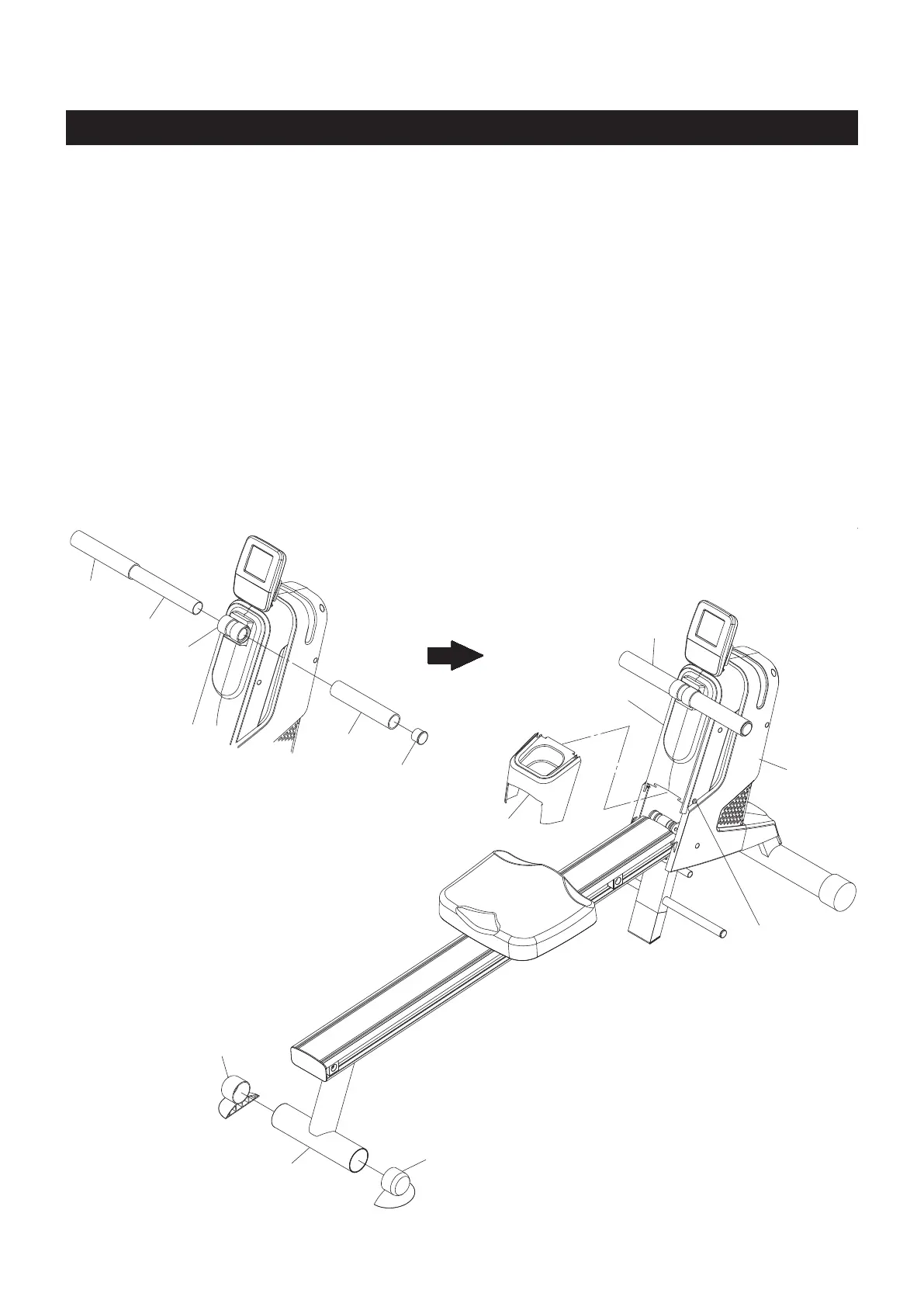

Refer to detail view C. Insert the HANDLEBAR(15) through the HANDLEBAR SLEEVE(111). Slide the
FOAM GRIP(22) onto the protruding end of the HANDLEBAR(15). Press the ROUND PLUG(23) into the
end of the HANDLEBAR(15).
NOTE: Lubricate the HANDLEBAR(15) with a small amount of liquid soap or water for easier installation
of the FOAM GRIP(22).
STEP 7
To help install the BOTTLE HOLDER(27), loosen the SCREW( M4.2x16mm )(67) on the RIGHT COVER(18).
Push the BOTTLE HOLDER(27) into the gap of the LEFT and RIGHT COVERS(17, 18). T
ighten the
SCREW( M4.2x20mm )(16) on the RIGHT COVER(18). Press the ENDCAPS(30) onto both sides of the
REAR STAND(2).
( Loosen to install the
BOTTLE HOLDER(27).
Tighten after the
installation. )
C.
