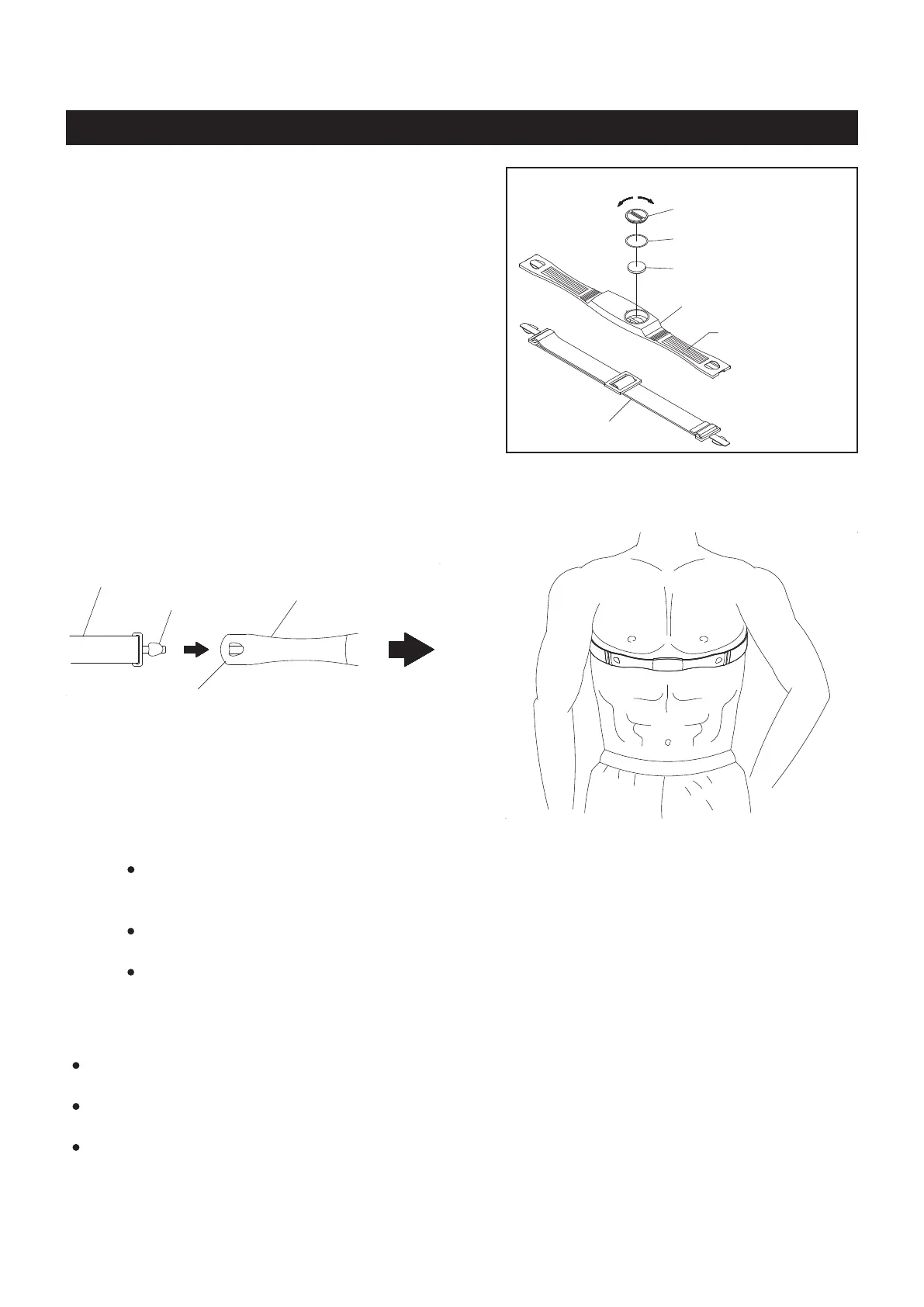

To assemble the HEART RATE TRANSMITTER(103),
insert the BUTTON BATTERY(CR2032)(107) as shown
in the illustration. Place the BATTERY RUBBER
RING(105) on the edge of the opening and place
the BATTERY COVER(106) over the BUTTON
BATTERY(CR2032)(107). Using a coin or similar object,
press down on the BATTERY COVER(106) and turn
counterclockwise to securely close the cover.
NOTE:
Attach the ELASTIC STRAP(104) by inserting the heart-shaped tabs through the openings in the transmitter
and twisting. Adjust the ELASTIC STRAP(104) to t your chest snugly as shown in the illustration below.
(103) Heart Rate Transmitter
(107) Button Battery
(106) Battery Cover
(105) Battery Rubber Ring
(104) Elastic Strap
close
open
(103) Heart Rate Transmitter
(104) Elastic Strap
Heart-Shaped Tab
To ensure a secure connection above, be sure that the front
edge of the heart-shaped tab is completely inside of the heart-
shaped opening on the HEART RATE TRANSMITTER(103).
1. Make sure to close the BATTERY COVER (106) very
tightly as illustrated to prevent sweat and moisture
from damaging the battery.
2. The HEART RATE TRANSMITTER(103) is latex free
and its material is appropriate for human contact.
Heart Rate
Sensor Electrode
NOTE: If your heart rate is inconsistent or not tracking on your workout monitor, do the following:
Moisten the heart rate sensor electrodes on the back of the HEART RATE TRANSMITTER(103)
and make sure they are in contact with the skin. Your skin may be dry when you begin your
workout and the moisture is necessary to ensure contact. As you sweat, contact will improve.
Tighten the elastic strap so it remains in place as you exercise. Movement of the heart rate sensor
electrodes will result in inaccurate or erratic signal and readings.
Clean the heart rate sensor electrodes as dirt can interfere with transmission. Use a mild soap
and water and dry with a soft towel.
Wash regularly with mild soap and water solution and dry with a soft towel being careful not to scratch
the heart rate sensor electrodes.
Store in a cool, dry place. Make sure the heart rate sensor electrodes aren’t stored with any wet material
and never store a wet transmitter in non-breathable material like a plastic bag or sports bag.
Do not bend or stretch the transmitter.
Transmitter Care and Maintenance
NOTE: The frequency of the receiver built into the Stamina® 1130 Magnetic Rowing Machine
is 5 kHz.
All compatible heart rate transmitters from other companies will work with the
Stamina® 1130
Magnetic Rowing Machine .
