ASSEMBLY INSTRUCTIONS
Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all
packing materials from your area and place them back into the box. Do not dispose of the packing materials
until assembly is completed. Read each step carefully before beginning. If you are missing a part please
call our toll-free number for assistance 1 (800) 375-7520.
6
1. When folding and unfolding the
4650 Dual-Action Recumbent Cycle, keep all children
away from the
4650 Dual-Action Recumbent Cycle and make sure your hands are
clear of any folding or pinch point.
2. Firmly tighten the
LOCKING KNOB(45) on the BACK SUPPORT(5).
1.

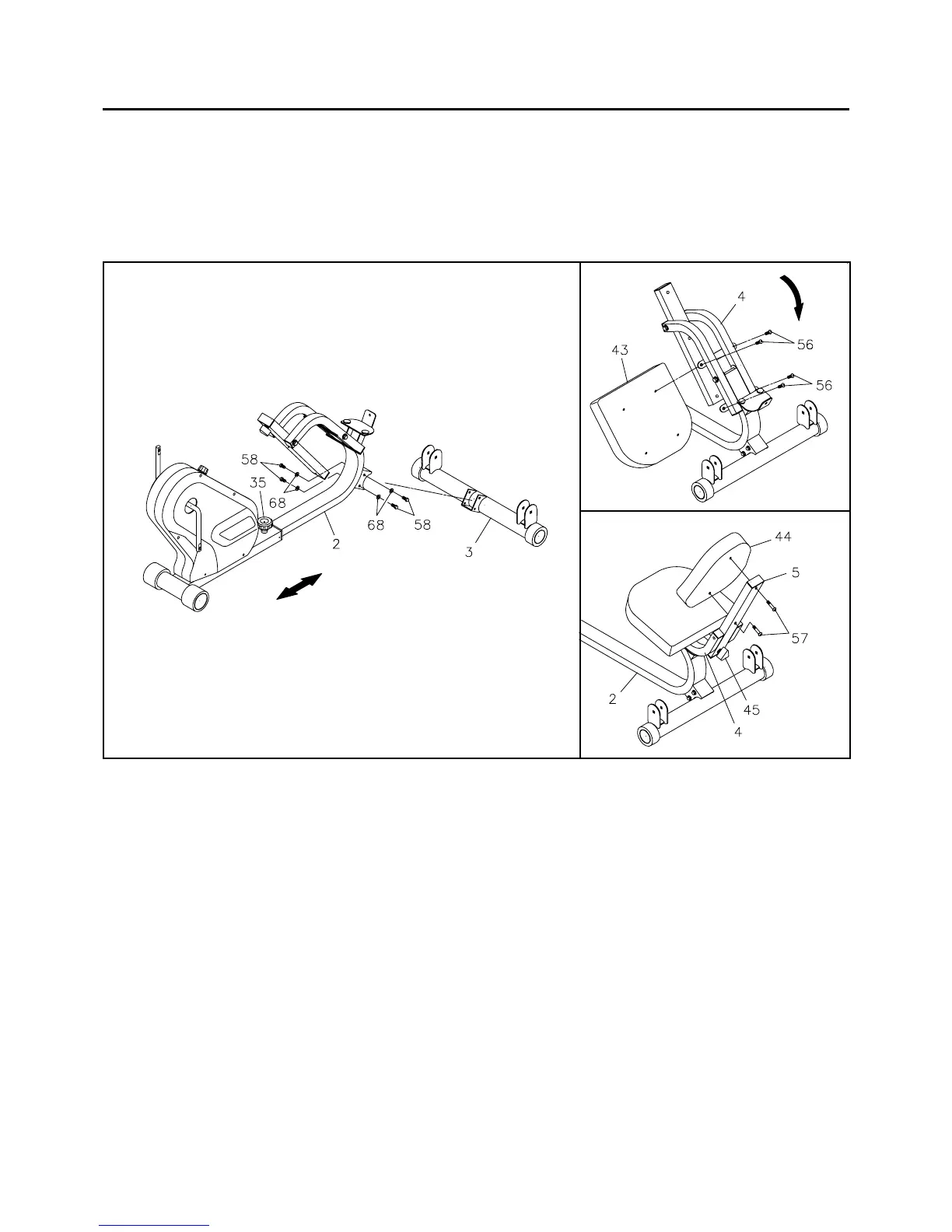

STEP 1
Loosen the ADJUSTMENT KNOB(35) on the FRONT FRAME(1). Slide the REAR FRAME(2)
backward and secure with the ADJUSTMENT KNOB(35). Attache the REAR STABILIZER(3) onto
the
REAR FRAME(2) with HEX BOLTS(M8 x 14mm)(58) and WASHERS(M8)(68).
STEP 2
Attach the SEAT(43) onto the SEAT FRAME(4) with ROUND HEAD BOLTS(M8 x 14mm)(56). See
illustration 1.
STEP 3
Unfold the SEAT FRAME ASSEMBLY(4) by lifting up the front edge of the SEAT(43). Then lift up the
BACK SUPPORT(5) and lock in place with the LOCKING KNOB(45). Attach the BACK CUSHION(44)
onto the BACK SUPPORT(5) with BOLTS(M8 x 40)(57). See illustration 2.
WARNING:
2.
