ASSEMBLY INSTRUCTIONS
Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all
packing materials from your area and place them back into the box. Do not dispose of the packing materials
until assembly is completed. Read each step carefully before beginning. If you are missing a part please
call our toll-free number for assistance 1 (800) 375-7520 or e-mail us at:
parts@staminaproducts.com
6

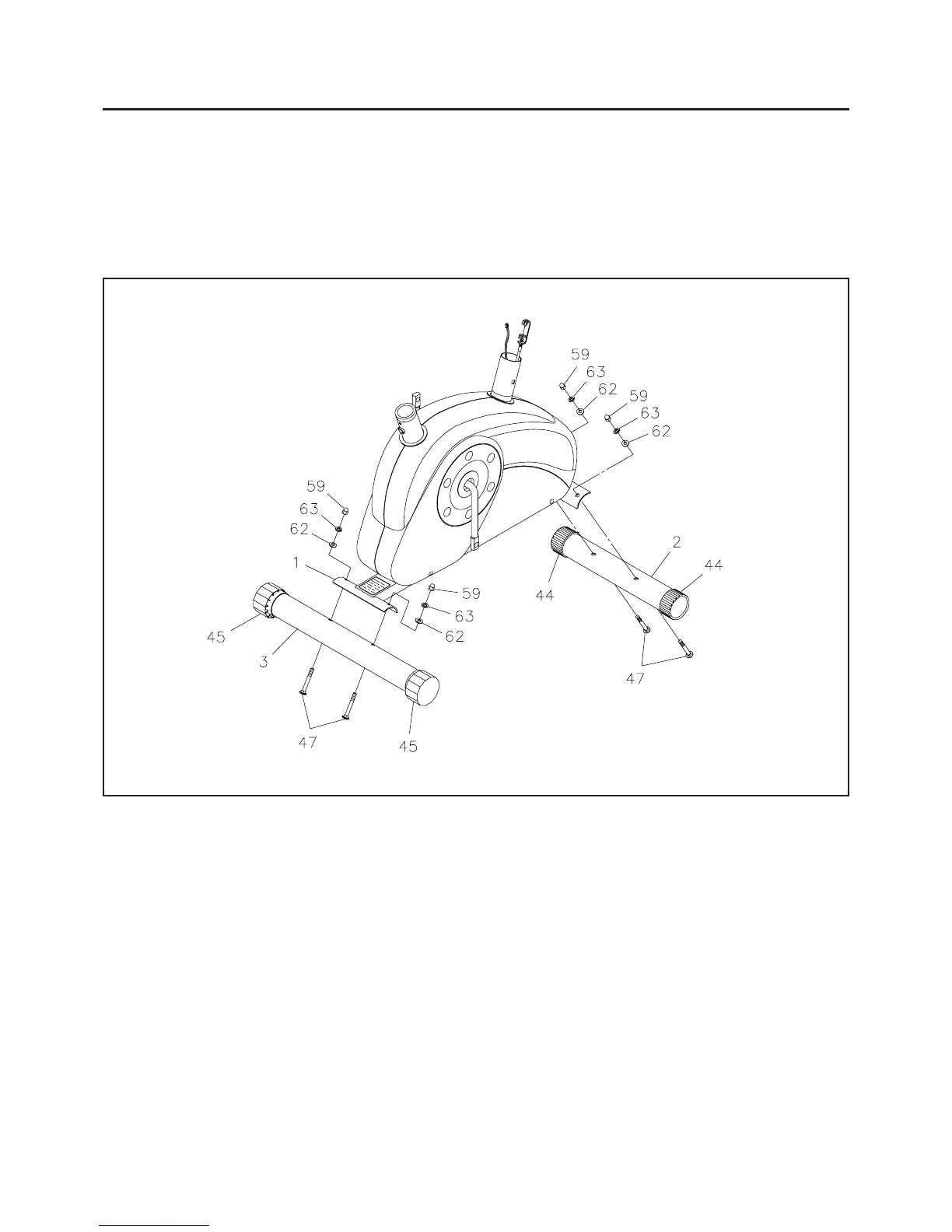

STEP 1
Attach the FRONT STABILIZER(2), the short one with the round ENDCAPS(44), onto the front of the
MAIN FRAME(1) with CARRIAGE BOLTS(M8 x 65mm)(47), ARC WASHERS(M8)(62), LOCK
WASHERS(M8)(63), and ACORN NUTS(M8)(59).
STEP 2
Attach the REAR STABILIZER(3), the one with the LEVELING CAPS(45), onto the MAIN FRAME(1)
with CARRIAGE BOLTS(M8 x 65mm)(47), ARC WASHERS(M8)(62), LOCK WASHERS(M8)(63),
and ACORN NUTS(M8)(59).
NOTE:
You can adjust the LEVELING CAPS(45) on the REAR STABILIZER(3) to keep the Bike
stable.
