Stamina 5125u - Page 7

ASSEMBLY INSTRUCTIONS
7
STEP 3
NOTE:
The RIGHT PEDAL(35) has R stamped on the end of the pedal shaft. The RIGHT PEDAL(35)
has right hand threads and is tightened by turning clockwise. The LEFT PEDAL(34) has L
stamped on the end of the pedal shaft. The LEFT PEDAL(34) has left hand threads and is
tightened by turning counter clockwise.

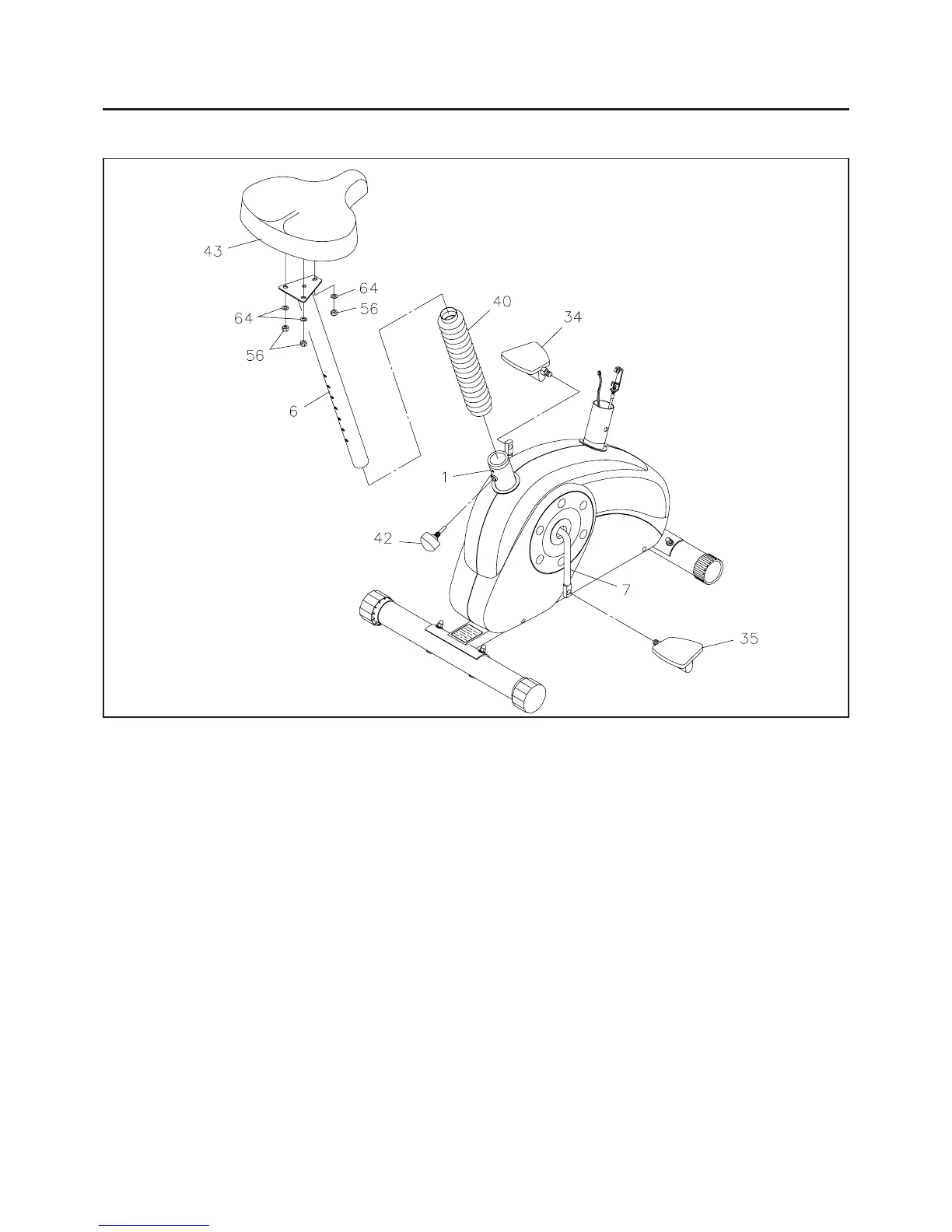

STEP 4
Attach the SEAT(43) onto the SEAT POST(6) with NYLOCK NUTS(M8)(56) and WASHERS(M8)(64).
STEP 5
Slide BELLOWS(40) over the SEAT POST(6). Insert the SEAT POST(6) into the MAIN FRAME(1)
and secure with the ADJUSTMENT KNOB(42).
NOTE:
The ADJUSTMENT KNOB(42) should be screwed in tight to make the SEAT POST(6) fit
securely in the
MAIN FRAME(1).
Thread the RIGHT PEDAL(35) onto the right side of the CRANK(7) as shown. Tighten the pedal securely.
Do the same to attach the
LEFT PEDAL(34) onto the left side of the CRANK(7).
