ASSEMBLY INSTRUCTIONS
STEP 6
Turn the TENSION KNOB(25) on the UPRIGHT(4) clockwise until the cable end extends out of the
metal fitting as far as possible. Pull the ends of the
TENSION CABLE(24) and SENSOR WIRE(28) out
of the

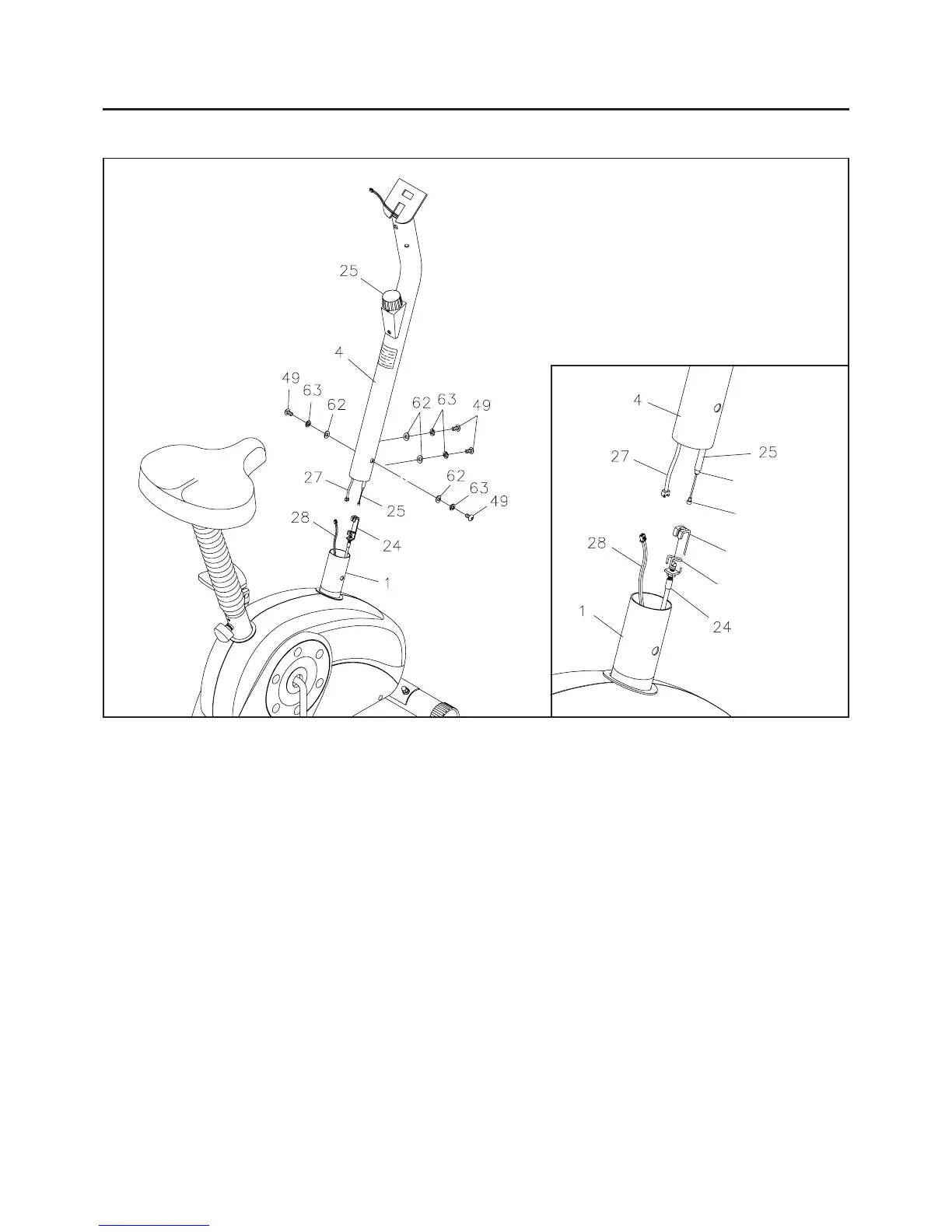

MAIN FRAME(1). Refer to the inset drawing. Connect the CABLE END of the TENSION
KNOB(25) into the SPRING HOOK on the end of the TENSION CABLE(24). Pull on the Cable of the
TENSION KNOB(25) firmly so that enough cable is available to insert the cable through the slot in the
BRACKET. Then insert the METAL FITTING on the cable of the TENSION KNOB(25) into the hole at
the end of the slot in the
BRACKET.
STEP 7
Connect the CONNECTION WIRE(27) to the SENSOR WIRE(28). Insert the UPRIGHT(4) onto the
MAIN FRAME(1) and secure with BUTTON HEAD BOLTS(M8 x 20mm)(49), LOCK
WASHERS(M8)(63), and ARC WASHERS(M8)(62).
8
CABLE END
SPRING HOOK
BRACKET
METAL FITTING
To Next Page
