ASSEMBLY INSTRUCTIONS
8

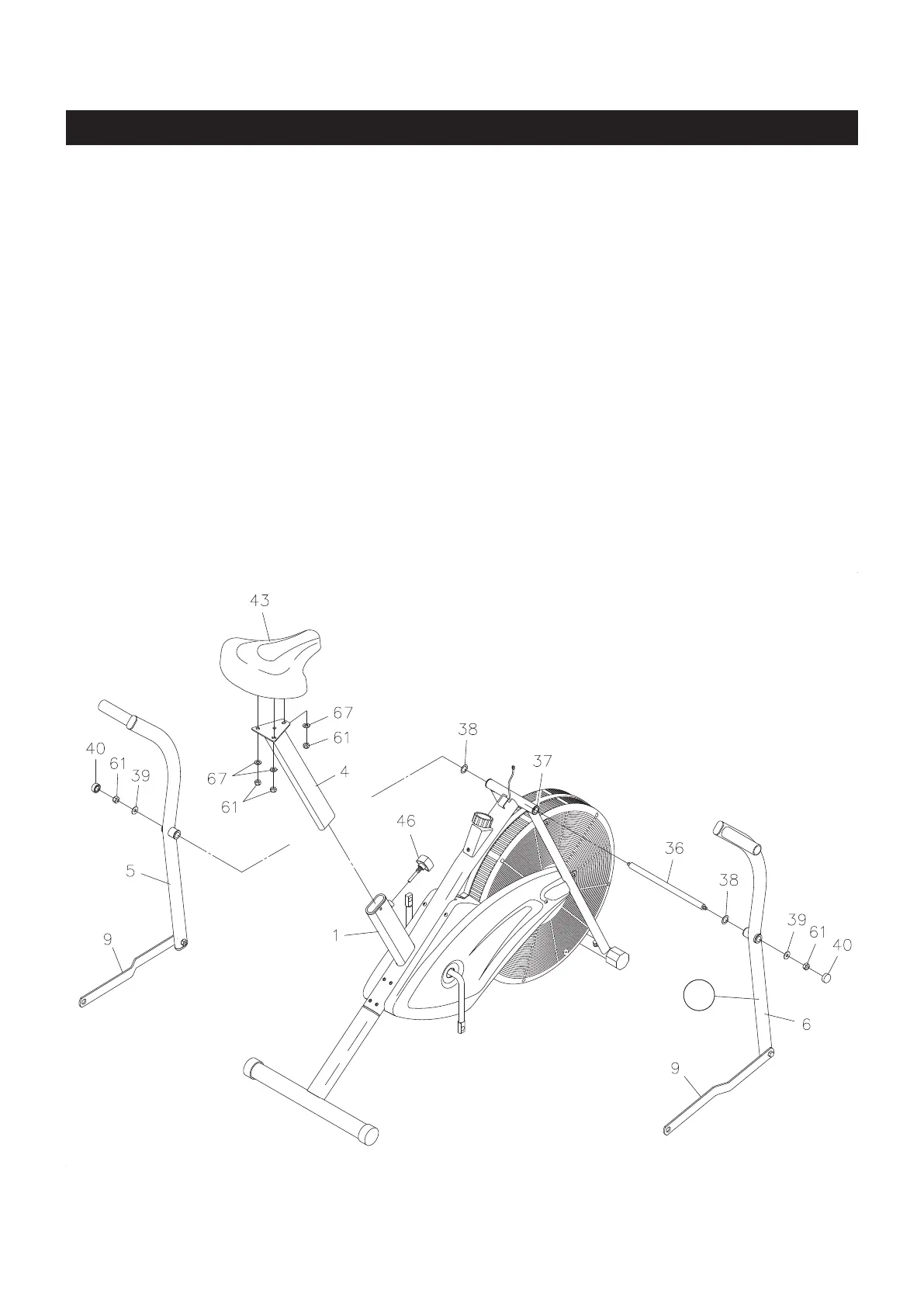

STEP 4
Attach the SEAT(43) to the SEAT POST(4) with NYLOCK NUTS(M8x1.25)(61) and WASHERS(M8)(67).
Insert the SEAT POST(4) into the MAIN FRAME(1) and lock in position with LOCKING KNOB(46).
STEP 5
Slide the AXLE(36) through BUSHINGS(37) into the MAIN FRAME(1). Slide the two BUSHING
WASHERS(38) onto both sides of the AXLE(36). There is an “R” decal on the RIGHT HANDLEBAR(6).
Slide the LEFT and RIGHT HANDLEBARS(5, 6), with the grips facing outside, onto AXLE(36) and fasten
with LARGE WASHERS(M8)(39) and NYLOCK NUTS(M8)(61). Place a NUT CAP(40) onto the NYLOCK
NUT(M8)(61) on both sides.
R
