ASSEMBLY INSTRUCTIONS
9

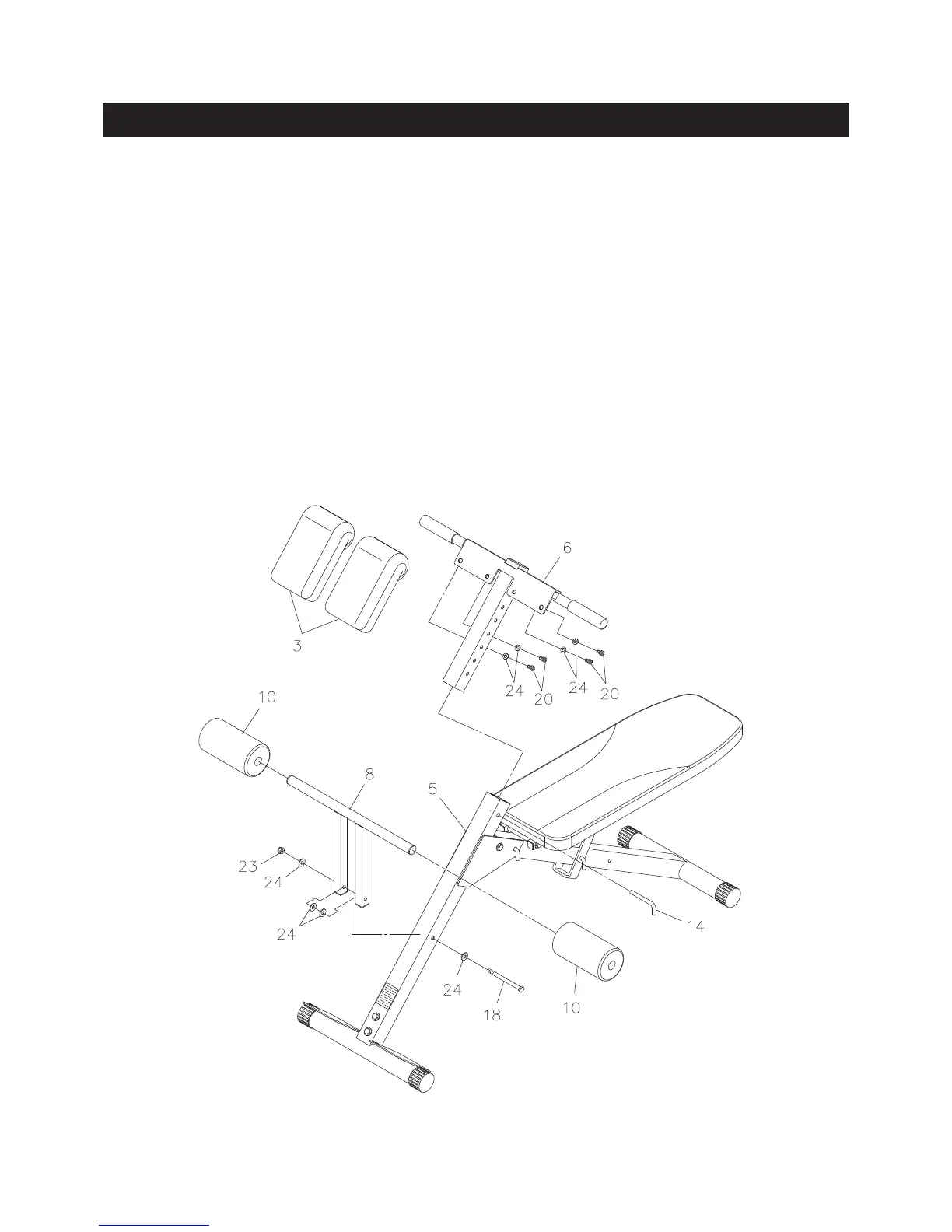

STEP 7
Attach the ANKLE SUPPORT(8) to the SUPPORT POST(5) with a HEX BOLT(M10x1.5x120mm)(18),
four WASHERS(M10)(24), and a NYLOCK NUT(M10x1.5)(23). Refer to the illustration for washer location.
Slide the FOAM ROLLS(10) onto both sides of the ANKLE SUPPORT(8).
STEP 8
Attach the KNEE CUSHIONS(3) to the HANDLEBAR POST(6) with HEX BOLTS(M10x1.5x20mm)(20) and
WASHERS(M10)(24). Insert the HANDLEBAR POST(6) into the SUPPORT POST(5) and lock in position
with the LOCKING PIN(14).
NOTE: There are the selection holes in the HANDLEBAR POST(6) for adjusting the height of the KNEE
CUSHIONS(3).
