ASSEMBLY INSTRUCTIONS
10

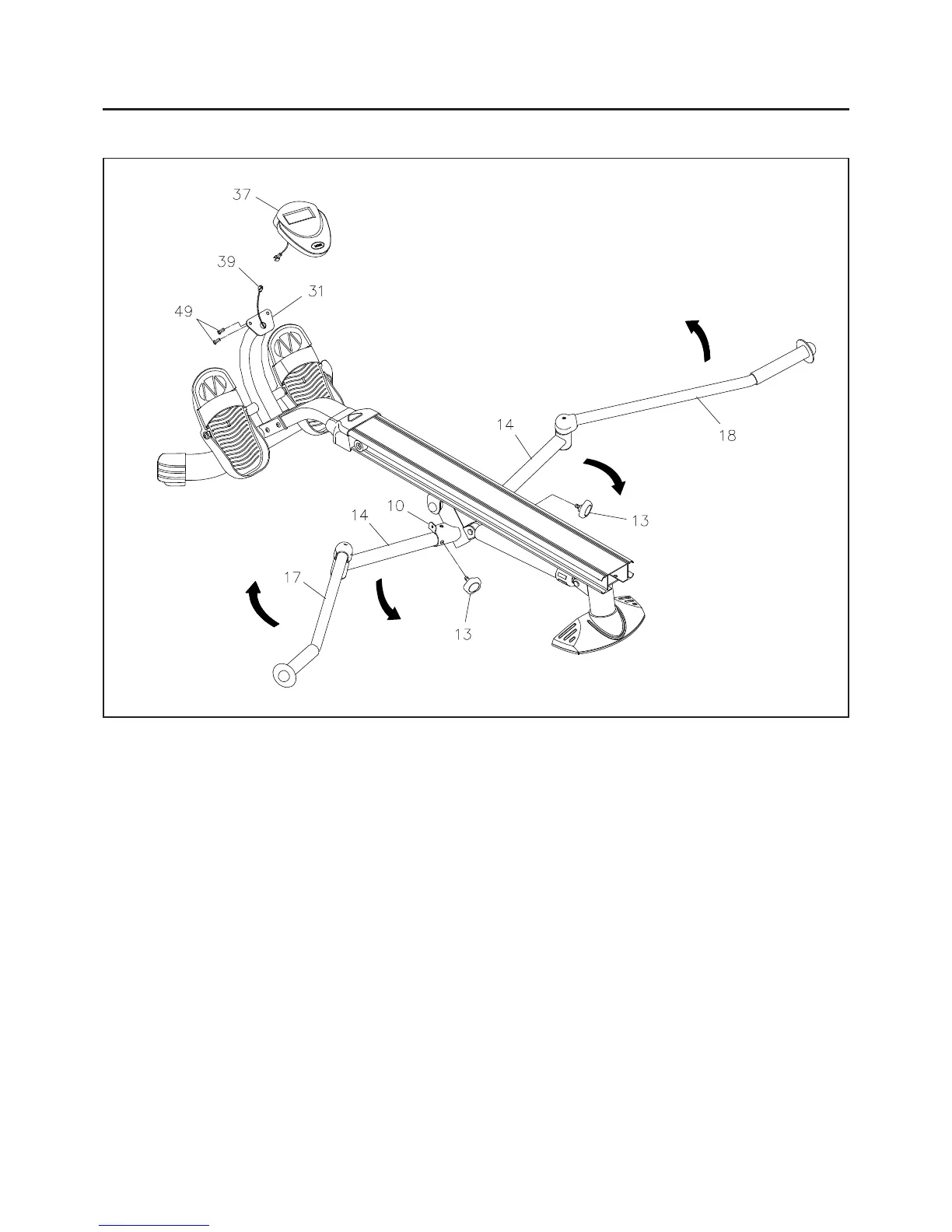

STEP 6
Unfold the HANDLEBARS(17, 18) and the EXTENSION ARMS(14) as shown in the illustration. Attach the
EXTENSION ARMS(14) to the PIVOT CONNECTOR(10) with the LOCKING KNOBS(13).
STEP 7
Install two AA batteries into the METER(37), two batteries included. See page 12 for detailed battery installation
instructions. Connect the EXTENSION WIRE(39) to the METER(37). Attach the METER(37) to the plate on
the METER POST(31) with ROUND HEAD SCREWS(M5x12mm)(49).
