Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all
packing materials from your area and place them back into the box. Do not dispose of the packing materials
until assembly is completed. Read each step carefully before beginning. If you are missing a part please call
our toll-free number for assistance 1-800-375-7520 or e-mail us at customerservice@staminaproducts.com.
ASSEMBLY INSTRUCTIONS
7

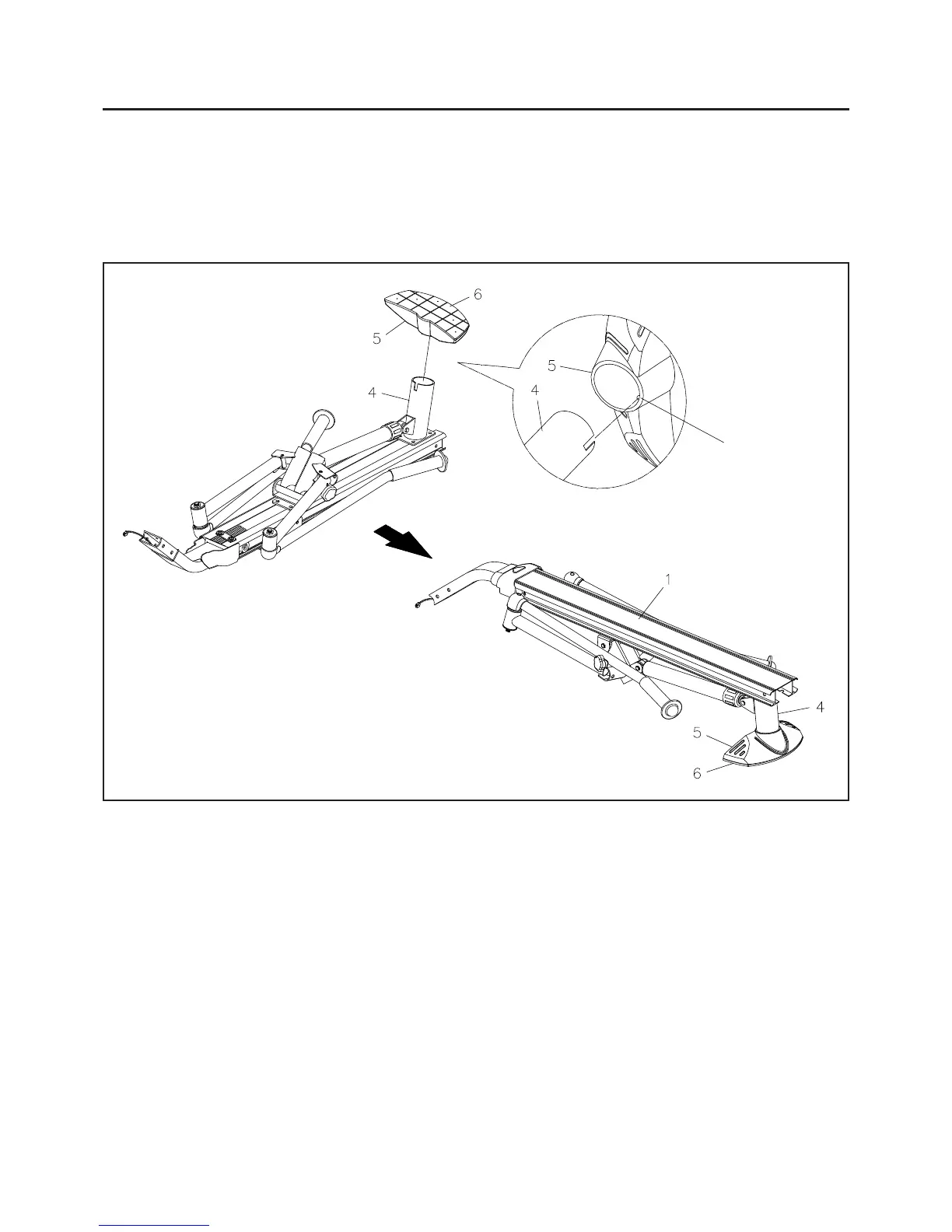

STEP 1
Lay the Main Frame Assembly on the floor as shown in the illustration. Now refer to the inset drawing. Make
sure the Key Rib in the STABILIZER CAP(5) aligns with the slot in the REAR SUPPORT(4), then press the
STABILIZER CAP(5) onto the REAR SUPPORT(4). Turn the Main Frame Assembly to the normal upright
position and make sure the STABILIZER PAD(6) is secured to the STABILIZER CAP(5).
Key Rib
