ASSEMBLY INSTRUCTIONS
9
STEP 2

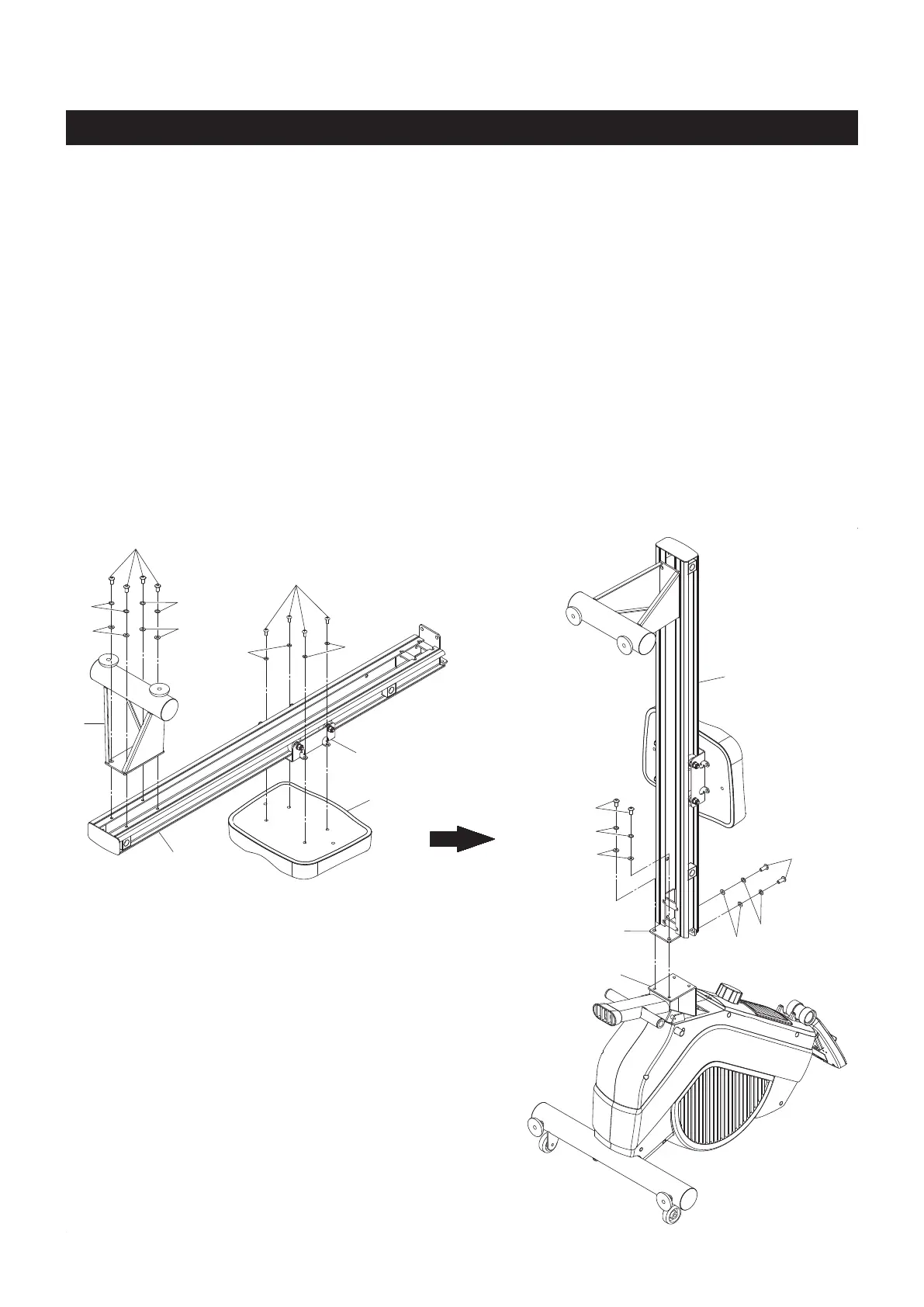

Refer to illustration A. Attach the REAR STAND(2) to the RAIL(34) with BUTTON HEAD BOLTS
(M8x1.25x15mm)(66), LOCK WASHERS(M8)(68), and WASHERS(M8)(69).
STEP 3
Refer to illustration A. Attach the SEAT(45) to the SEAT CARRIAGE(10) with ROUND HEAD BOLTS
(M6x1x15mm)(94) and WASHERS(M6)(95).
STEP 4
Position the main assembly of the Stamina® DT Rowing Machine 397 as shown in the illustration B . Assemble
the RAIL(34) by attaching the RAIL CONNECTOR(11) to the MAIN FRAME(1) with BUTTON HEAD BOLTS
(M8x1.25x20mm)(67), LOCK WASHERS(M8)(68), and WASHERS(M8)(69).
68
69
66
68
69
95
45
94
95
10
2
34
68
69
67
67
68
69
1
11
34
B.A.
FRONT
REAR
