STEP 1

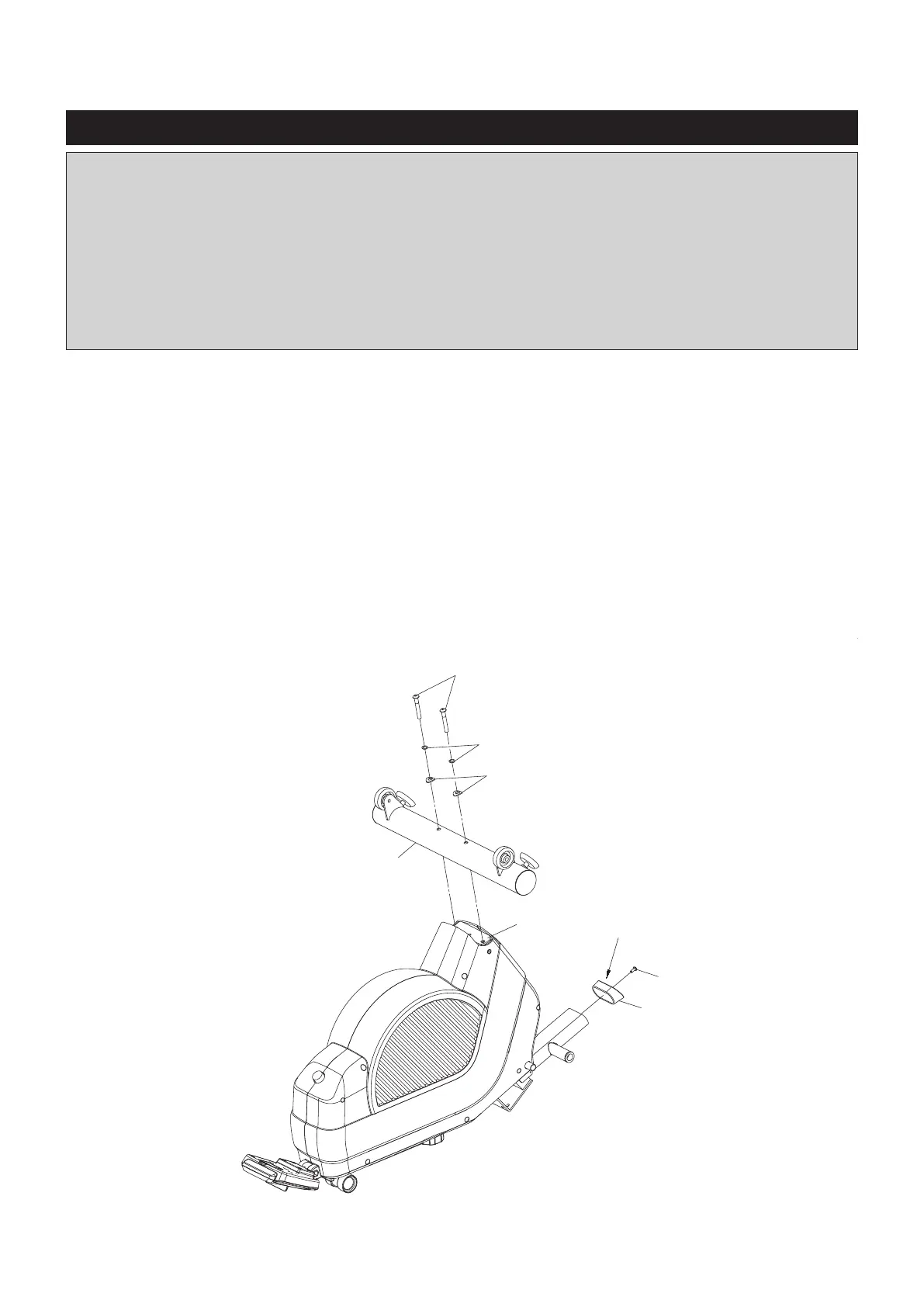

Position the main assembly of the
Stamina® DT Rowing Machine 397 as shown in the
illustration
below
.
Attach the FRONT STABILIZER(3) to the MAIN FRAME(1) with BUTTON HEAD BOLTS
(M8x1.25x75mm)(97), LOCK WASHERS(M8)(68), and ARC WASHERS(M8)(98). Attach the
OVAL
ENDCAP
(62) to the MAIN FRAME(1) with ROUND HEAD BOLT(M6x1x12mm)(99).
ASSEMBLY INSTRUCTIONS
Place all parts from the box in a cleared area and position them on the oor in front of you. Remove
all packing materials from your area and place them back into the box. Do not dispose of the packing
materials until assembly is completed. Read each step carefully before beginning. If you are missing
a part, please go to staminaproducts.com under the Customer Care section and order the part
needed, e-mail us at customer.care@staminaproducts.com, or call us toll free at 1-800-375-7520
(in the U.S.). Our Customer Care Sta is available to assist you from 7:30 A.M. to 5:00 P.M. (Central
Time) Monday through Thursday and 8:00 A.M. to 3:00 P.M. (Central Time) on Friday.
Some product parts are t tested at the factory to ensure proper t and alignment. Marks in
the paint may be noticeable, but are not an indication of damage.
97
98
68
3
1
99
62
Shorter side
