13
STORAGE

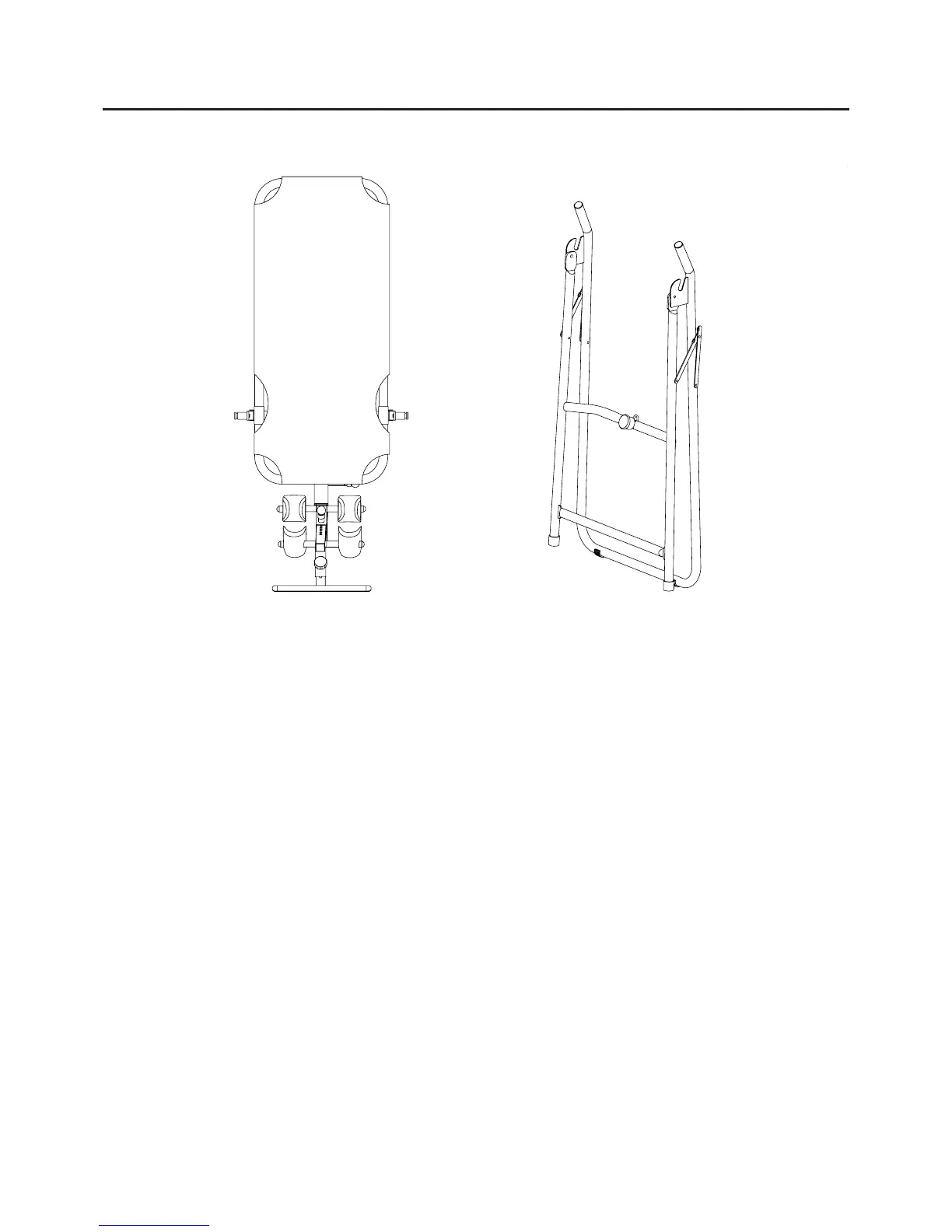

FOLDING THE INVERSION TABLE
The Gravity Inversion Table can be easily folded for storage.
To fold the
Gravity Inversion Table loosen LOCKING KNOB(19) and pull out the LARGE SPRING
PIN(18). Now, slide the HEIGHT ADJUSTMENT BEAM(6) all the way up into the MAIN FRAME(4)
until the ADJUSTABLE INSTEP FRAME(7) is just below the MAIN FRAME(4), release the LARGE
SPRING PIN(18) and slide the HEIGHT ADJUSTMENT BEAM(6) slightly up or down until the spring
pin locks the beam in place. Remove the
MAIN FRAME ASSEMBLY from the BASE by lifting up on the
MAIN FRAME(4) until the PIVOT ARMS(5) come out of the slots located at the top of the REAR
FRAME(2), (Make sure the NYLON STRAP is not attached to the MAIN FRAME(4) before attempting
to remove it.) Push up on the center of the
FOLDING LINKAGES(3) and push the FRONT FRAME(1)
and REAR FRAME(2) together until they meet.
MAINTENANCE INSTRUCTIONS
The safety level of the Gravity Inversion Table can be maintained only if it is examined regularly for
damage and wear.
Check the warning label, nylon strap, strap buckle, pivot arms, nylon bed, heel holders, small spring pin
and large spring pin for damage and wear.
Replace damaged and worn components immediately and/or keep the equipment out of use until repairs
are completed.
1.
2.
