ASSEMBLY INSTRUCTIONS
8

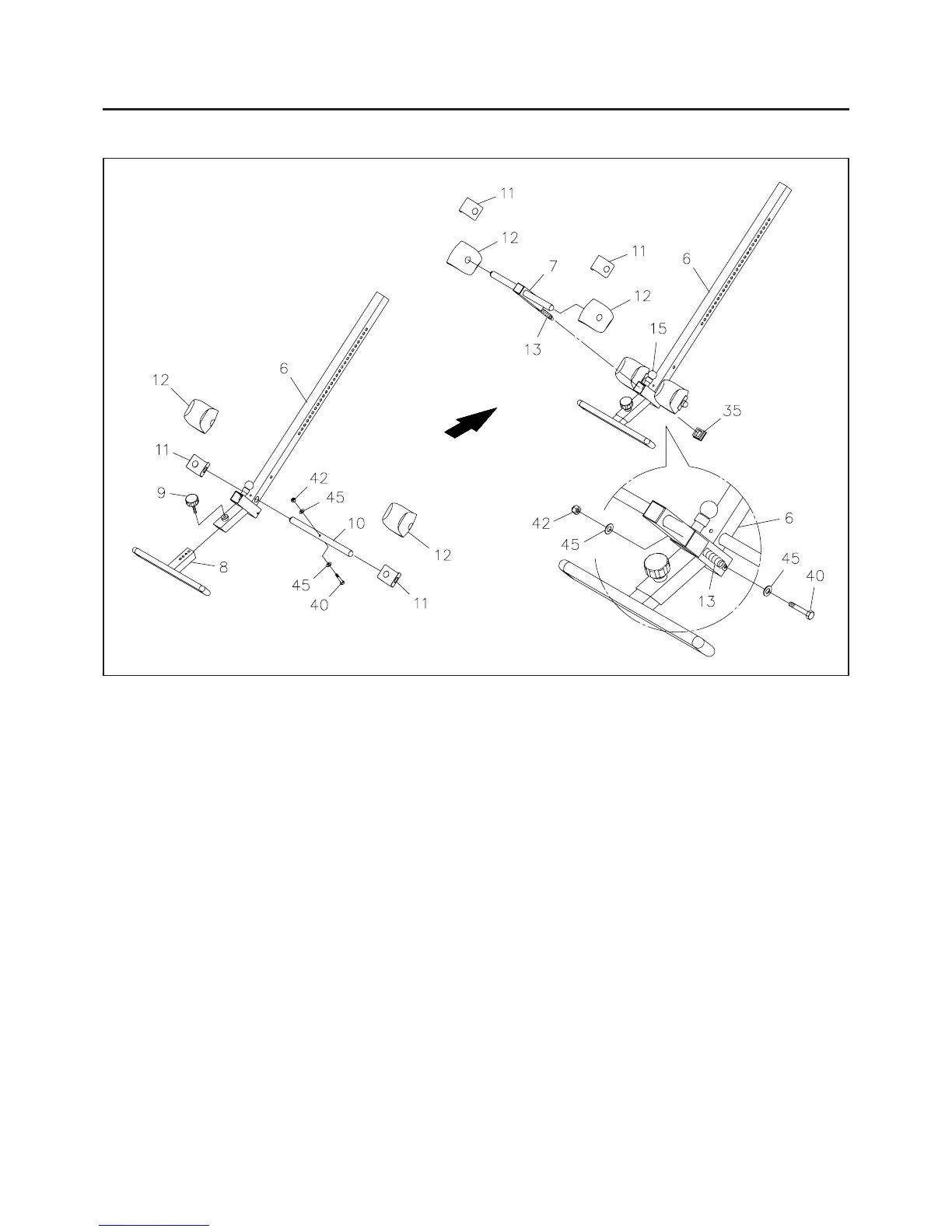

STEP 5
Attach the FOOTREST(8) onto the HEIGHT ADJUSTMENT BEAM(6) with the ADJUSTMENT
KNOB(9).
NOTE:
STEP 6: Insert the PAD TUBE(10) through the hole on the HEIGHT ADJUSTMENT BEAM(6) and
secure with
HEX BOLT(M6 x 47mm)(40), NYLOCK NUT(M6)(42), and WASHERS(M6)(45). Place
a
HEEL HOLDER BRACKET(11) onto a HEEL HOLDER(12), then slide them onto PAD TUBE(10)
together. Slide another set of HEEL HOLDER BRACKET(11) and HEEL HOLDER(12) over the other
end of the
PAD TUBE(10).
STEP 7: Attach the ADJUSTABLE INSTEP FRAME(7) to the HEIGHT ADJUSTMENT BEAM(6)
by pulling the SMALL SPRING PIN(15) and sliding the ADJUSTABLE INSTEP FRAME(7) completely
into the
HEIGHT ADJUSTMENT BEAM(6). Place a WASHER(M6)(45) onto the HEX BOLT
(M6 x 47mm)(40), then insert the bolt the halfway through the square tube on the HEIGHT ADJUSTMENT
BEAM(6), slide the bolt through the ring at the bottom of the SPRING(13), slide the bolt through the
square tube and secure with
NYLOCK NUT(M6)(42) and WASHER(M6)(45). Press the SQUARE
PLUG(35) into the HEIGHT ADJUSTMENT BEAM(6). Install a HEEL HOLDER BRACKET(11)
and HEEL HOLDER(12) onto both sides of the ADJUSTABLE INSTEP FRAME(7).
The four adjustment holes in the FOOTREST(8) allow the FOOTREST(8) to be attached in four
different positions. Start with one of the center positions and adjust if necessary. Use the outer
position if users are taller than average. Use the inner position if users are shorter than average.
