Stamina Seated Inversion Therapy System - Assembly: Seat Belt and Back Cushion; Steps 9-10: Seat Belt and Cushion Installation

ASSEMBLY INSTRUCTIONS
10
STEP 9
Attach the SEAT BELT(31) to the BACK FRAME(9) with BUTTON HEAD BOLTS(M8x1.25x15mm)(46).
STEP 10
Refer to the Back View of the illustration below. Align the hook and loop material on the HINGE WEAR
COVER(34) and the BACK CUSHION(33), then press them to attach together. Attach the BACK
CUSHION(33) to the BACK FRAME(9) with ROUND HEAD BOLTS(M6x1x15mm)(43).
NOTE: Pull the upper part of the BACK CUSHION(33) back and invert the system so that the BACK
CUSHION(33) and SEAT(32) are in the same plane. Check that the HINGE WEAR COVER(34)
is not too tight or too loose when the unit is in its inverted position. If necessary, adjust the
position of the HINGE WEAR COVER(34) on the BACK CUSHION(33) and the SEAT(32).

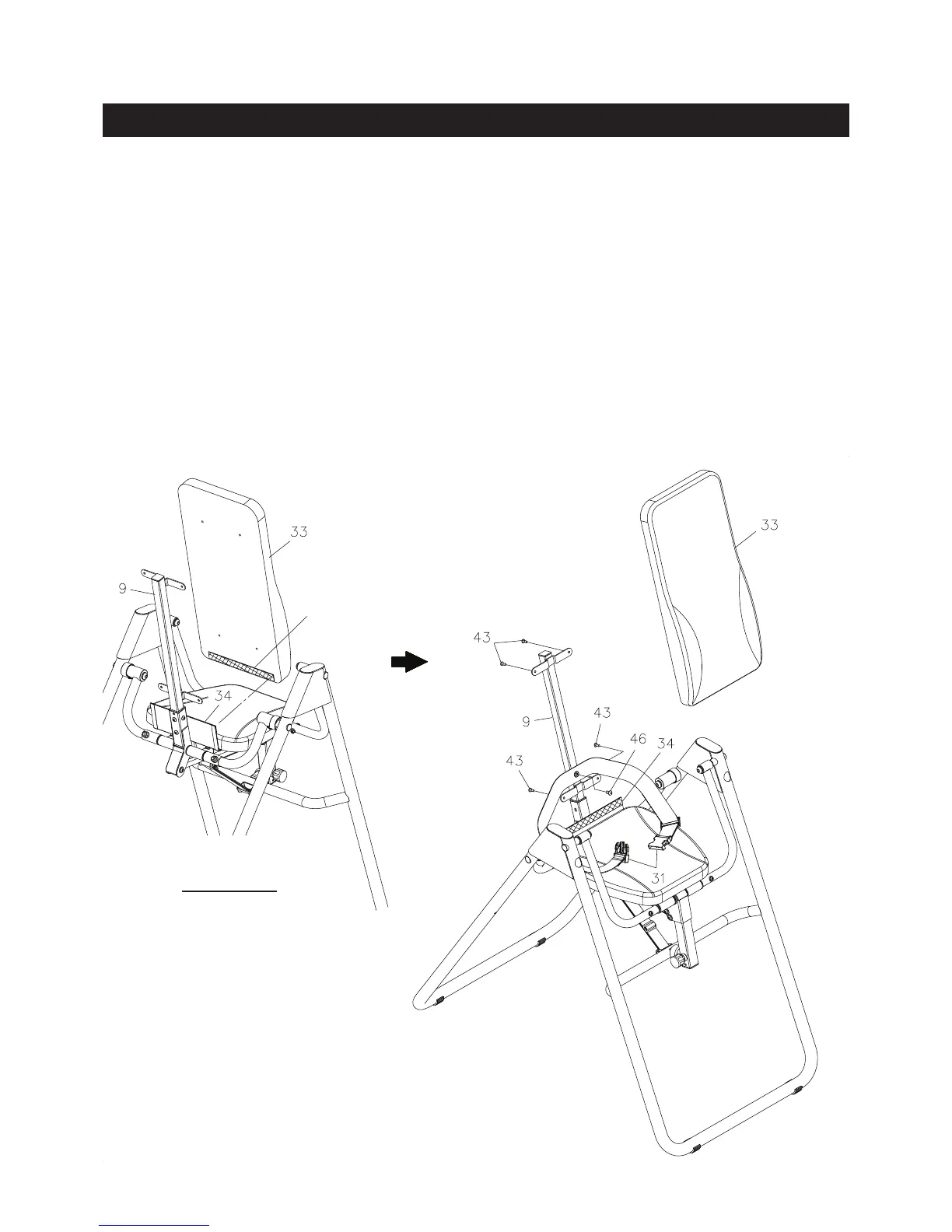

Back View
hook and
loop material
