ASSEMBLY INSTRUCTIONS
7
Shoulder
Shoulder
STEP 2
NOTE: The RIGHT PEDAL(8) has an R stamped on the end of the pedal shaft. The RIGHT PEDAL(8)
has right hand threads and is tightened by turning clockwise. The LEFT PEDAL(7) has an
L stamped on the end of the pedal shaft. The LEFT PEDAL(7) has left hand threads and is
tightened by turning counterclockwise.

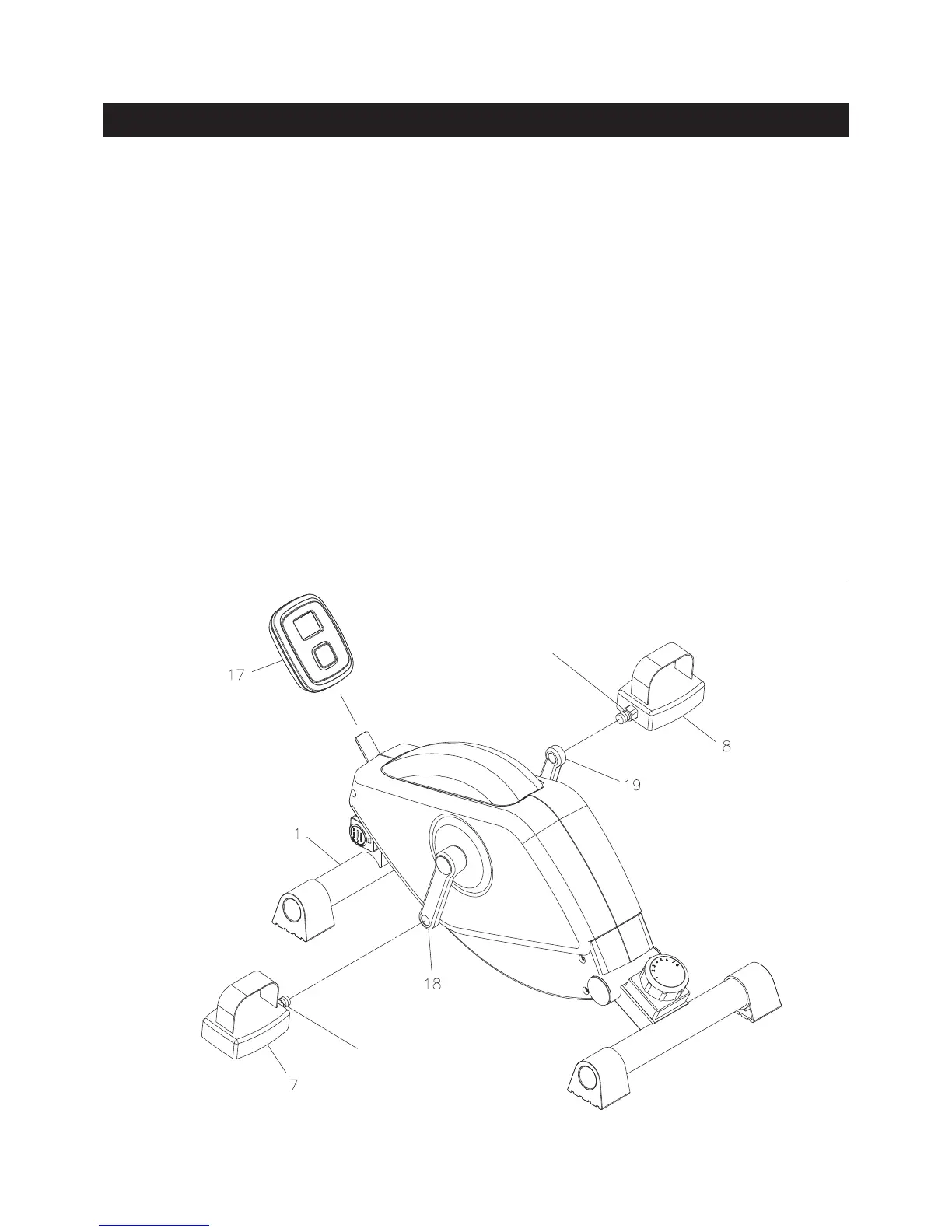

Thread the LEFT PEDAL(7) to the right side of the LEFT CRANK(18) as shown. Tighten the pedal
securely. The shoulder of the PEDALS(7, 8) should be in contact with the CRANKS(18, 19) when
securely tightened. Do the same to attach the RIGHT PEDAL(8) to the RIGHT CRANK(19).
STEP 3
Install two AA batteries into the METER(17), the batteries are not included. See page 8 for detailed
battery installation instructions. Slide the METER(17) onto the plate on the MAIN FRAME(1).
To Next Page
