Stamina X AMRAP ROWER - Page 9

ASSEMBLY INSTRUCTIONS
9
STEP 3

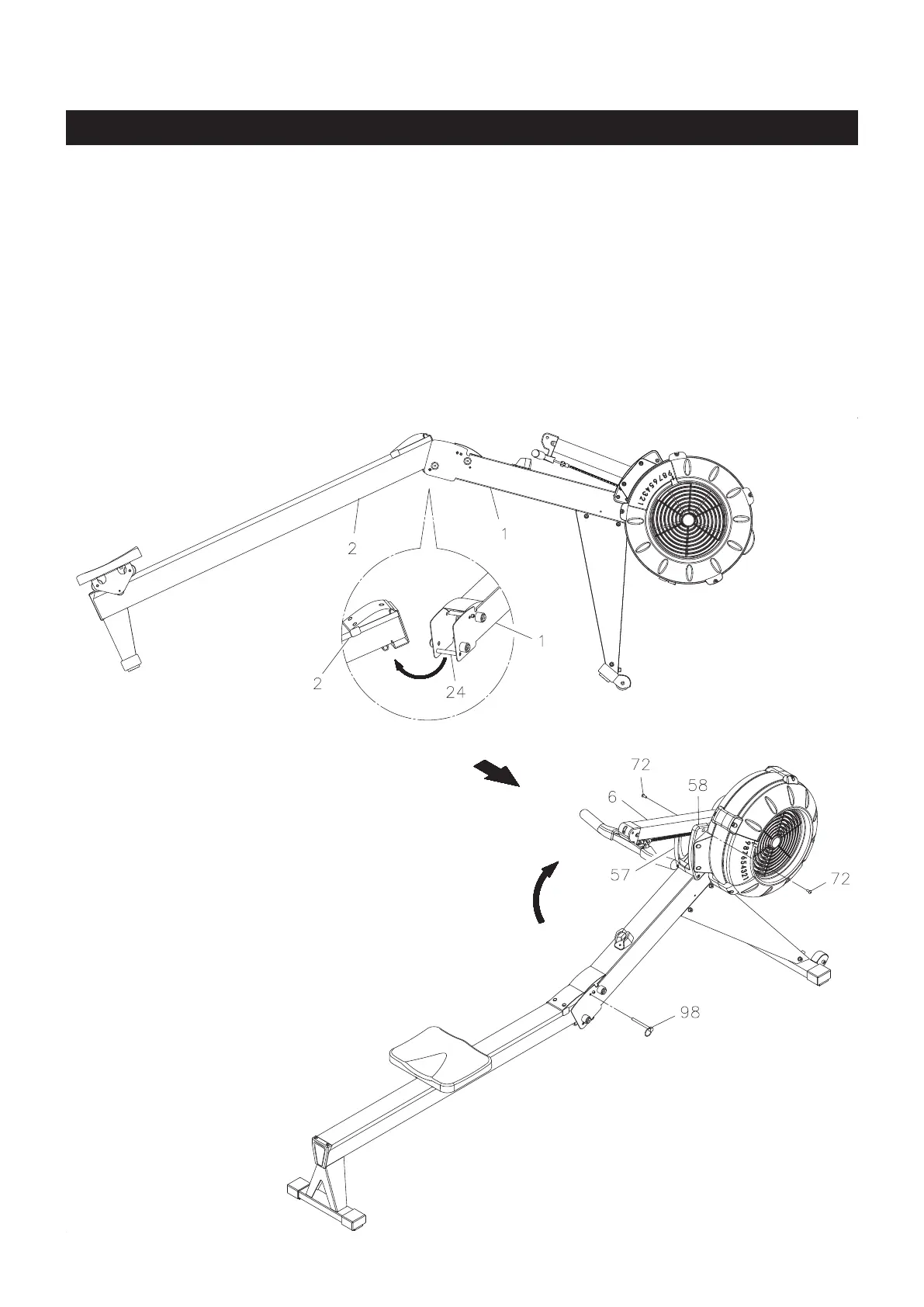

Refer to illustration 3. Lift up the MAIN FRAME(1) and RAIL FRAME(2) to insert the RAIL FRAME(2) into
the MAIN FRAME(1). Make the SHAFT(24) on the MAIN FRAME(1) t into the gap in the RAIL FRAME(2).
Then put the MAIN FRAME(1) and RAIL FRAME(2) down. Refer to illustration 4. Lock the MAIN FRAME(1)
and RAIL FRAME(2) together with the PULL PIN(98).
STEP 4
Refer to illustration 4. Swing up the COMPUTER POST(6), and attach it to the LEFT and RIGHT COVERS
(57, 58) with ROUND HEAD BOLTS(M6x1x10mm)(72).
3.
4.
