CAUTIONS
General safety information for the use of electrical devices:
To avoid injury from re or electric shock, please ensure compliance with safety instructions when using
this device. Please read the instruction carefully and make sure that you have understood them well. Keep
the manual near the equipment to be able to read it at any time. Always use current sources connected
to the ground and providing the necessary voltage (indicated on the label on the device). If you have any
doubt, let an electrician check that your outlet is properly grounded. Never use a damaged power cable.
Do not open the unit in damp or wet environment, or if your hands or body are damp or wet. Protect
the unit from solar radiation. Use the device in a protected location to avoid damaging the equipment or
endangering others. Make sure the device is able to cool and avoid placing it too close to other devices
that produce heat. Before cleaning, disconnect it. Use a soft damp cloth for cleaning. Avoid using detergent
and make sure that no liquid enters the unit. No internal element of this device needs to be maintained by
the user. An opening of the device without our approval leads to a loss of warranty.
General safety information for the use of the device:
• The user manual should be kept close to the device and should always be accessible for the users.
Instruct your employees how to use the device properly.
• Make sure the hot air can circulate well and place the device more than 10 cm away from walls and
other electrical devices. Properly aerate the working area.
• Do not place the device close to combustible materials.
• When rst using the device the heating element may produce a light smoke. This is absolutely normal.
Simply ensure that the smoke can evaporate and that a good aeration is provided.
• Some parts of the device can get extremely hot. To avoid any injuries, be careful whenever you come
into contact with the device.
• Clean the device regularly to avoid permanent accumulation of dirt.
TECHNICAL DETAILS
Model 6131 S-LS-15 Basic
Voltage (V) 230 ~ 50Hz
Rated current (A) 10
Power (W) 1415
Work temperature (⁰C)
0 / +40
Storage temperature (⁰C)
-20 / -80
INFRARED LAMP
Voltage (V) 230 ~ 50Hz
Power (W) 150
Irradiation effective area (mm) 35 x 35
Temperature range (⁰C)
100 - 350
SOLDERING IRON
Temperature range (⁰C)
200 - 480
Output power (W) 75
Temperature stability (⁰C)
±1
Tip to ground resistance < 2 Ω
Tip to ground voltage < 2 mV
EN
SMD REWORK
Temperature range (⁰C)
100-480
Output power (W) 700
Temperature stability (⁰C)
±1
Airow (L/min) 120
PREHEATER
Output power (W) 540
Temperature range (⁰C)
50 - 200
Plate dimensions (mm) 120 x 120
USAGE PURPOSE
The device is designed for:
1. Different kinds of soldering, de-soldering of the electronic components such as: SOIC, CHIP, QFP,
PLCC, SMD, etc. especially for BGA modules, motherboards in electronic devices.
2. Shrinking, paint drying, adhesive removal, thawing, warming, plastic welding.
Any damage resulting from a non-conform use of the device is to be paid by the user!

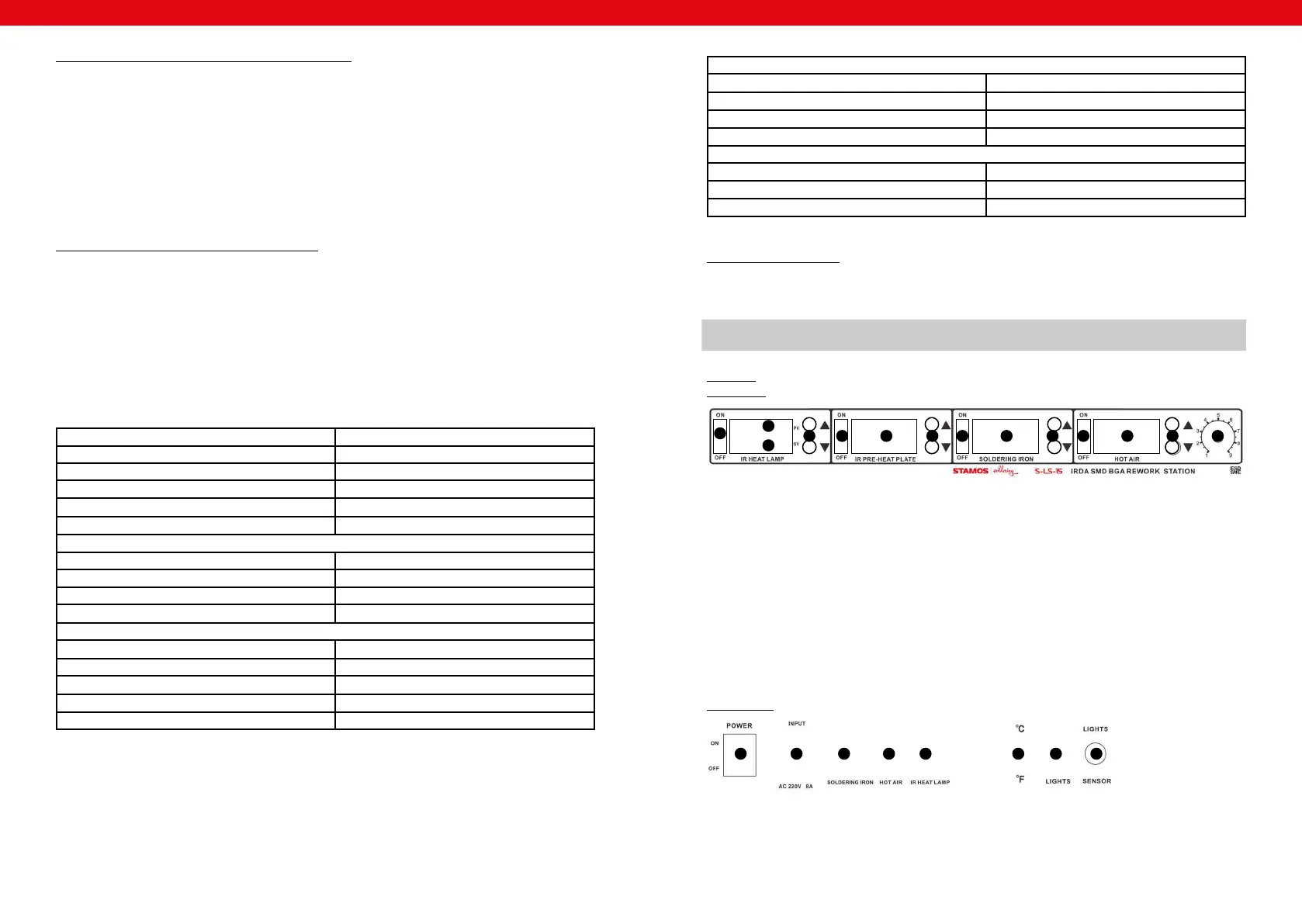

PRINCIPLE OF OPERATION
Assembly:
Front panel:
1. infrared lamp switch on / off
2. infrared lamp temperature display
3. external sensor temperature display
4. infrared lamp temperature setting buttons
5. preheater switch on / off
6. preheater temperature display
7. preheater temperature set buttons
8. soldering iron switch on / off
9. soldering iron temperature display
10. soldering iron temperature set buttons
11. SMD rework gun switch on /off
12. SMD rework temperature display
13. SMD rework temperature set buttons
14. airow volume adjustment knob
1
2
3
4 5 6 7 8 9 10 11 12 13 14
12
1 2 3 4 5 6 7 8
Hinterpaneel:
1. main on/off switch
2. power socket
3. soldering iron connection socket
4. SMD rework connection socket
5. IR lamp connection socket
6. temperature units switch (C / F)
7. light switch
8. light connection socket
To Next Page
