GENERAL REMARKS
1. If the display is showing the „---„ it means that the output temperature is lower than 100 ⁰C, SMD
rework station is in stand-by mode, SMD rework gun is placed in the holder.
2. If the display is showing “S-E” it means that soldering iron is disconnected, and HOT AIR gun is having
problems with the heat sensor.
3. When the device is being turned on, both soldering iron and HOT AIR gun should be placed in their
holders.
4. The outlet of the SMD rework gun should be clean and free from any obstacles.
5. When using small nozzles, it should be remembered that the air ow should be suitable to the diameter
of the xed nozzle. In order to avoid any SMD rework gun damages, too high air ow along with the
high temperature mustn’t be used for a long period of time.
6. Depending on user’s needs, different air ow settings may cause slight variations in temperature values.
The minimum distance between the outlet of the HOT AIR gun and the subject is 2 mm.
7. Good ventilation of the room in which the appliance is used must be provided. In addition, the device
should be placed in a location with good air circulation to dissipate heat.
SAFETY ISSUES REMARKS
1. Nozzles should be installed without the use of excessive force, also do not use the pliers or tweezers.
Do not tighten the mounting screws of the nozzle too much.
2. Tips and nozzles can be changed when the SMD rework gun and the soldering iron are completely cold.
3. It is forbidden to use the device near ammable or combustible elements and objects or in similar
places. Tips and nozzles as well as the air coming out of the HOT AIR gun have very high temperatures,
it is forbidden to touch these elements as well as it is forbidden to direct the hot air directly to face or
body. This can cause serious burns.
4. After long time of use, the outlet of the SMD rework gun may be covered with some dust. The outlet
should be cleaned on a regular basis in order to ensure undisturbed air ow.
5. Too high temperature of the soldering iron may be the cause of reduction of the functionality of the
soldering tips.
6. Soldering iron tip must be cleaned regularly using sponge and plate on a layer of tin to prevent tips
oxidation.

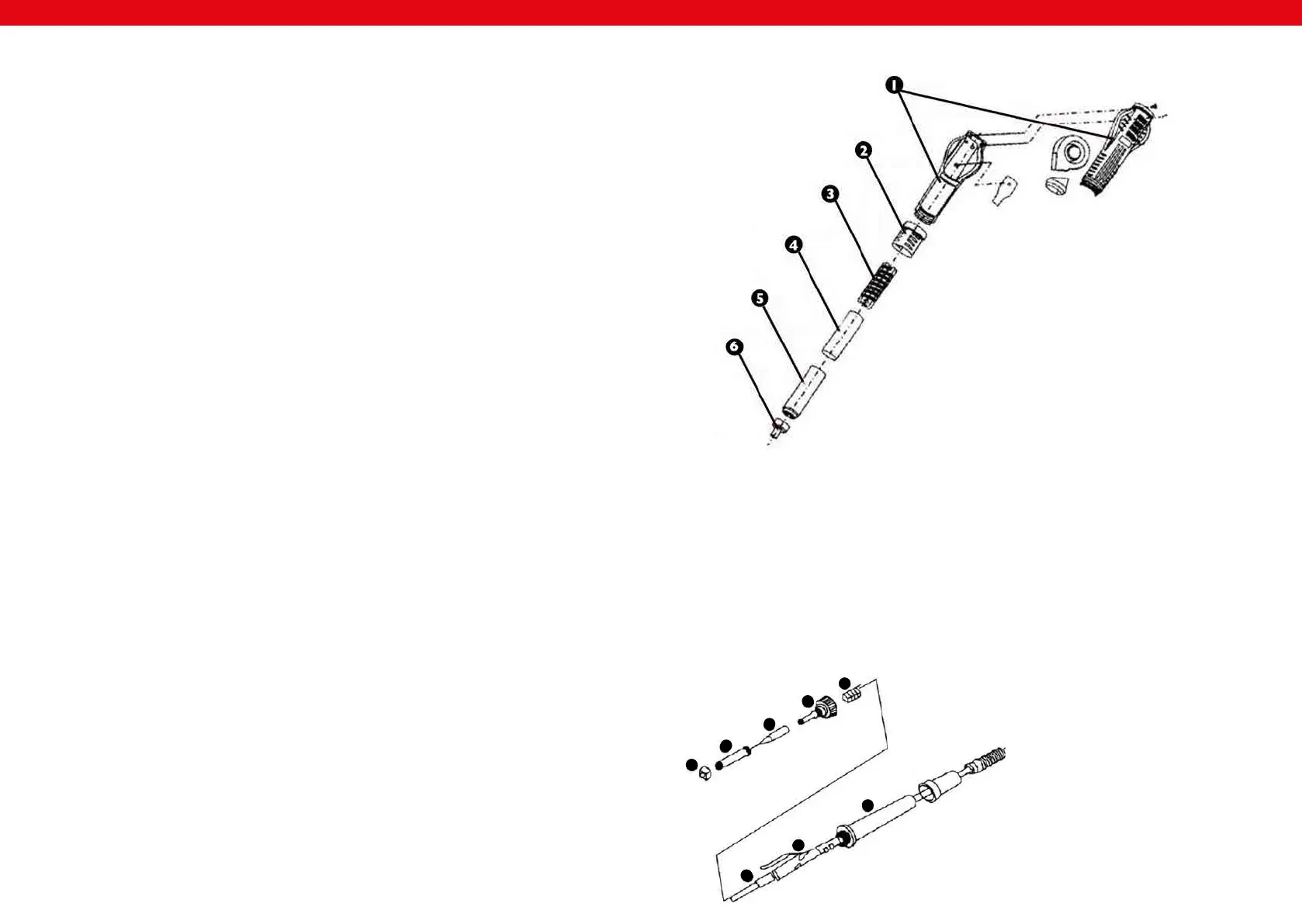

REPLACEMENT OF HOT AIR REWORK HEATING ELEMENT
1. HOT AIR gun covers
2. element of the handle
3. heater
4. heater cover
5. outlet pipe
6. nozzle
1. Before heater replacement, make sure that the SMD rework gun is completely cold.
2. Remove the screws in the gun covers.
3. Unscrew the element of the handle (2) and take off the gun covers.
4. Gently remove the fan and remove the wire board screws.
5. Disconnect the heater from the wire board (pay attention to the wires connection order).
6. Remove the heater from the housing, pay attention to the steel grounding wire.
7. New heater should be wrapped with new mica paper and then it should be placed inside the housing.
8. Connect the wires to the board in accordance with their original connection method.
9. Fix the gun in reverse order.
EN EN
REPLACEMENT OF THE SOLDERING IRON TIP AND SOLDERING IRON HEATING
CORE ELEMENT
1. nut for mounting the soldering iron tip
housing
2. soldering iron tip housing
3. soldering iron tip
4. plastic nut for mounting the heater and the
board wires
5. spring
6. heater
7. wires board
8. handle
1
2
3
4
5
6
7
8
