Electrical Wiring
Wiring

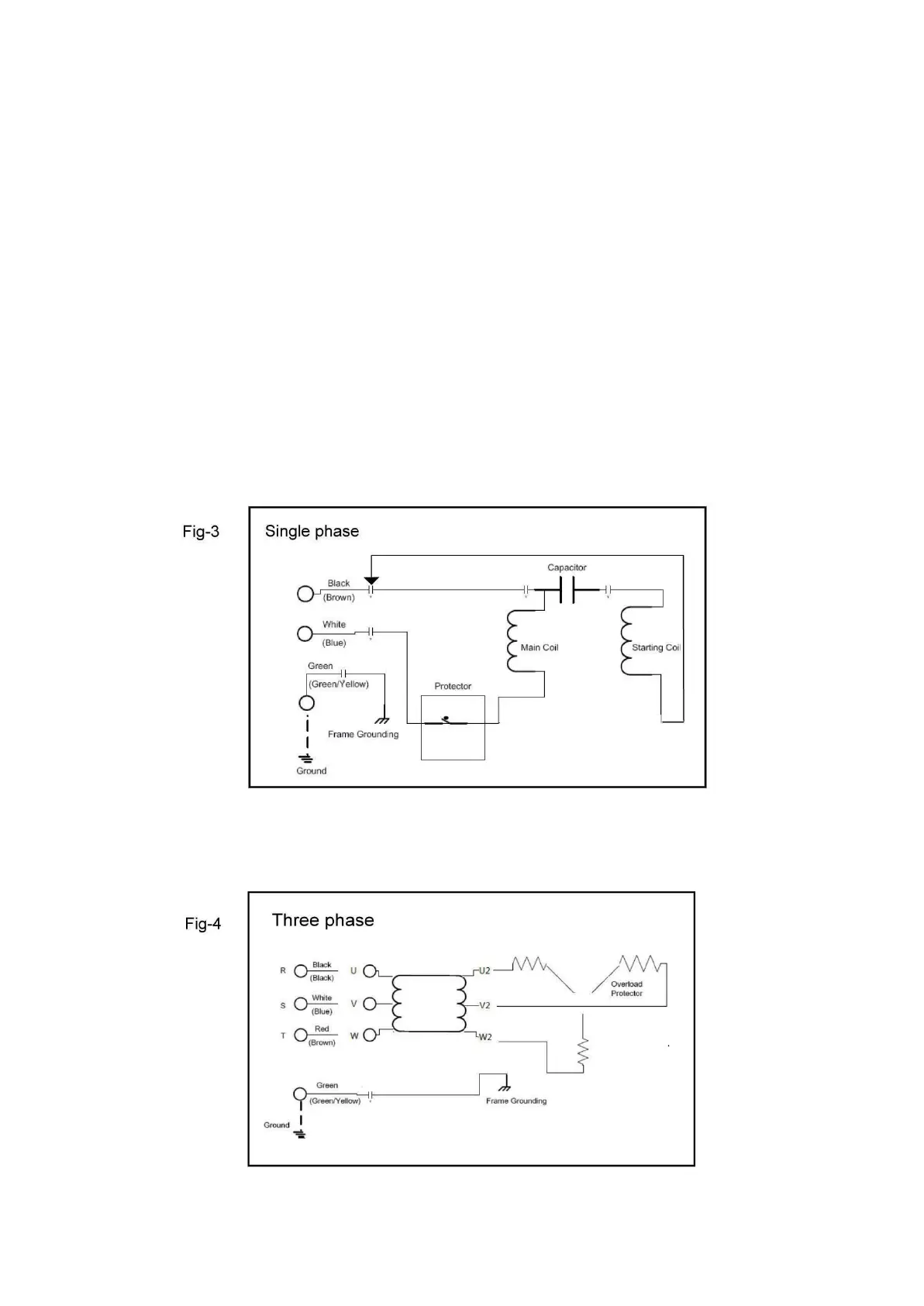

A) Wire as indicated for the appropriate start system as shown in Fig-3 for single phase version and Fig-4 for
three phases.
B) Loose connections will stop the pump. Make sure all electrical connections secure.
Cable
WARNING: Never let the end of the cable contact water.
C) If the cable is extended, do not immerse the splice in water.
D) Fasten the cable to the handle
E) Install the cable so that it will not overheat. Overheating can be caused by coiling the cable and exposing it to
direct sun- light.
Grounding
As shown in Fig-3 & Fig-4 ground the green wire. Under no circumstances should the green wire be connected to
the power supply directly.
Wiring Diagrams
