Stand Aid 1600 - Parts Breakdown and Parts List

1. 8200-2001 1 Stand Aid 1600 Frame
2. 8200-2003 1 Lift Bar
3. 8200-2000 2 Lift Bar Bushing
4. 8200-2004 4 Lift Linkage
*5. 8200-2040 1 Rt. Lift Arm
*6. 8200-2002 1 Lt. Lift Arm
7. 8200-2005 1 Rt. Lift Arm Hook
- 2600-3000 1 Rt. Lift Arm Hook Cover
- 2500-3006 2 Rubber Mocap
8. 8200-2006 1 Lt. Lift Arm Hook
- 2600-3001 1 Lt. Lift Arm Hook Cover
- 2500-3006 2 Rubber Mocap
9. 8200-2018 1 Stabilizer Bar
10. 2500-3000 8 Adjustment Knobs
11. 8200-2012 1 Knee Pad Mt.
12. 8200-2019 2 Knee Pad Slides
13. 2600-3002 1 Knee Pad
14. 8200-2020 2 Bottom Legs
15. 2500-3001 2 Front Wheels
16. 2500-3002 1 Hydraulic Jack
17. 8200-2009 1 Jack Lobe
18. 8200-2021 1 Jack Mount
19. 8200-2007 1 Jack Pump Linkage
20. 8200-2008 1 Pump Handle
- 2500-3003 1 Pump Handle Cover
21. 8200-2015 1 Release Lever
- 2500-3007 1 Release Lever Mocap
22. 8200-2014 1 Release Lever Linkage
23. 8200-2016 1 Side Cover
24. 8200-2050 2 Table Extensions
25. 8200-2048 1 Rt. Table Arm
26. 8200-2049 1 Lt. Table Arm
27. 8200-2010 1 Table Frame
28. 8200-2017 1 Table (plexi-glass)
29. 8200-2011 1 Chest Pad Bracket

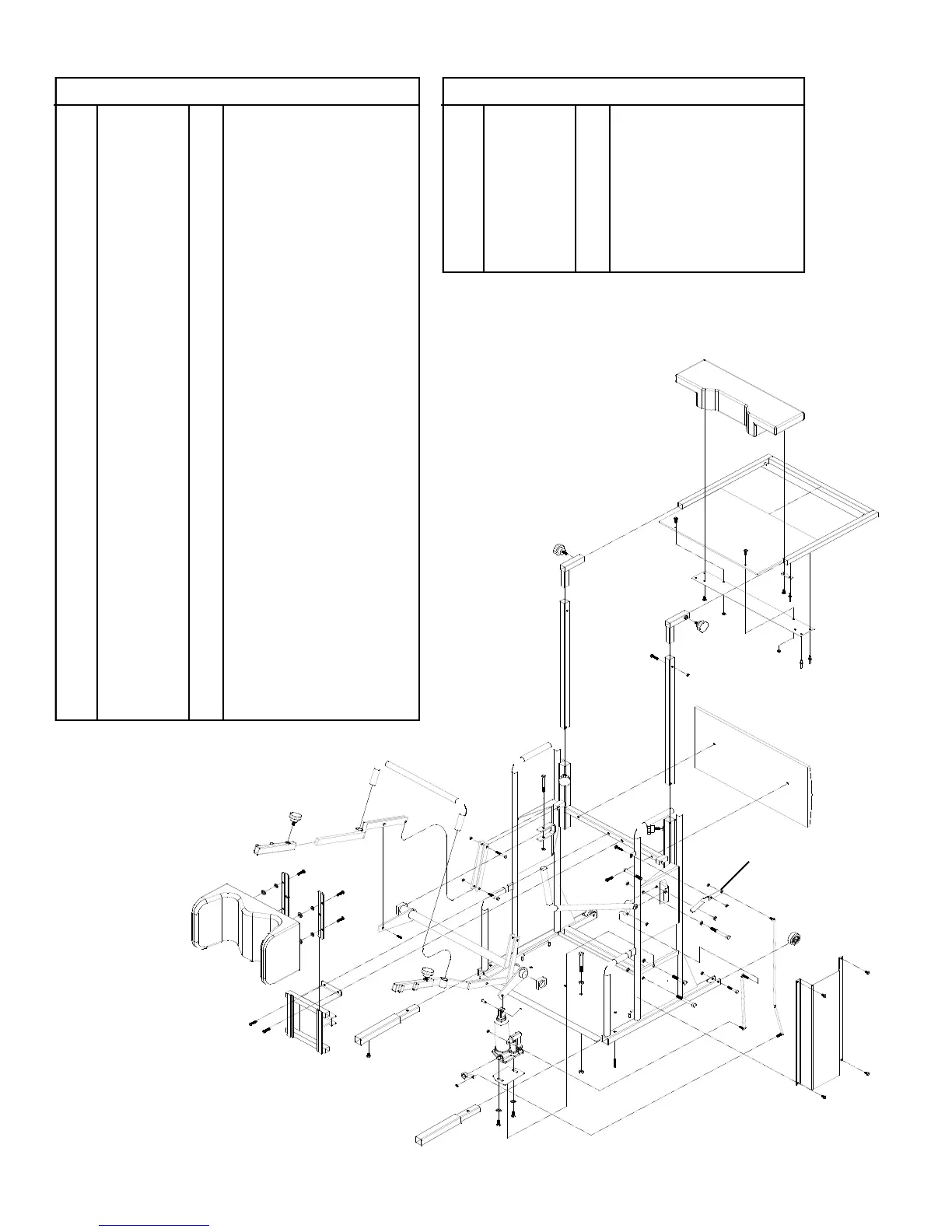

STAND AID 1600 PARTS BREAKDOWN and PARTS LIST
REF. # PART # QTY. DESCRIPTION
1
2
3
4
5
6
7
8
10
9
11
12
13
14
15
16
17 18
19
20
21
22
23
24
24
25
26
27
28
29
30
31
32
10
10
10
33
REF. # PART # QTY. DESCRIPTION
30. 2600-3003 1 Chest Pad
31. 8200-2013 2 Table Clip
32. 2500-3004 1 Jack Spring
33. 2600-3004 1 Medium Shroud
34. 2600-3005 1 Sling (not shown)
35. 2600-3006 1 Safety Belt (not shown)
36. 2600-3007 2 Heel Straps (not shown)
37. 2600-3008 1 Toe Strap (not shown)
38. 2500-3005 1 Jack Clevis Pin
Note: Assembly Instructions and fasteners used are
on page 9 & 10.
38
Page 8
* Optional sized lift arms are available. Contact Stand
Aid to fit individual needs.
