VLH-3000 Page 5
4 INSTALLATION
4.1 Optional MMB-84 Flush Mount Installation
1. To assist in flush mounting, a template has been included. Use this tem-
plate to find the mounting location.
2. Use the template to mark the location where the rectangular hole is to be
cut. Confirm the space behind the dash or panel is deep enough to ac-
commodate the VLH-3000 (at least 4.5 inches or 11.5 cm deep).
There should be at least 1/2 inch (1.3 cm) between the VLH-3000’s
heatsink and any wiring, cables or structures.
3. Cut out the rectangular hole and insert the VLH-3000.
4. Fasten the brackets to the sides of the VLH-3000 with the lock washer
nut combination; so that the mounting screw base faces the mounting
surface (see Figure 1).
5. Turn the adjusting screw to adjust the tension so that the VLH-3000 is
tight against the mounting surface.

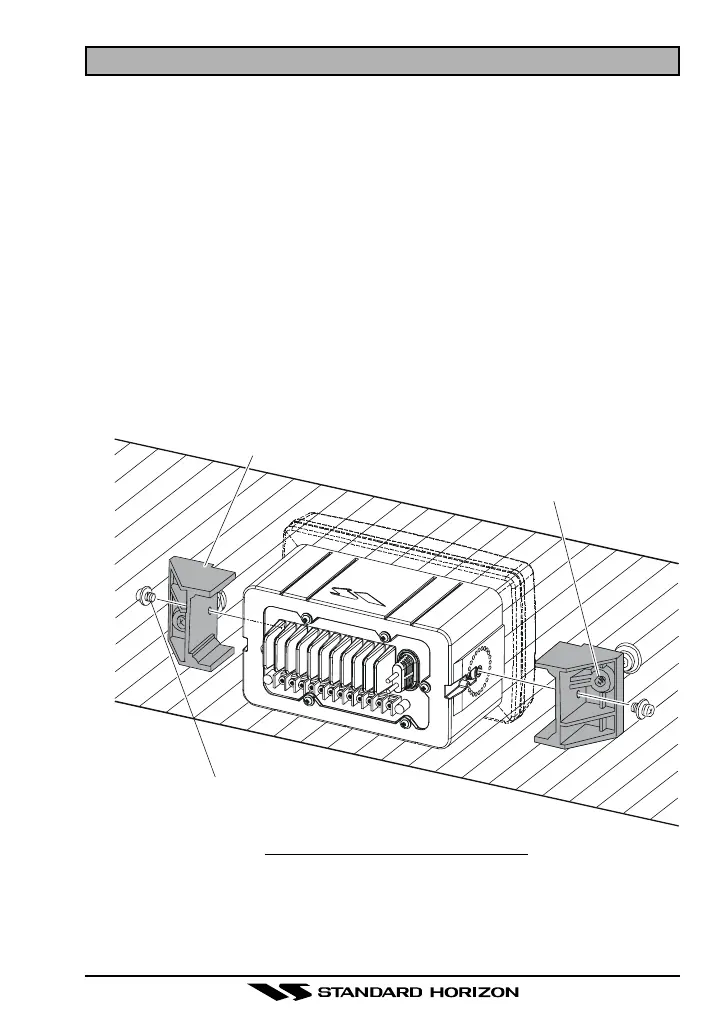

Figure 1. MMB-84 Flush Mount Installation
Bracket
Adjusting Screw
Lock-washer nut combination
