Stanley BR37 - Figure 2. Charging the Accumulator

BR37 User Manual ◄ 15

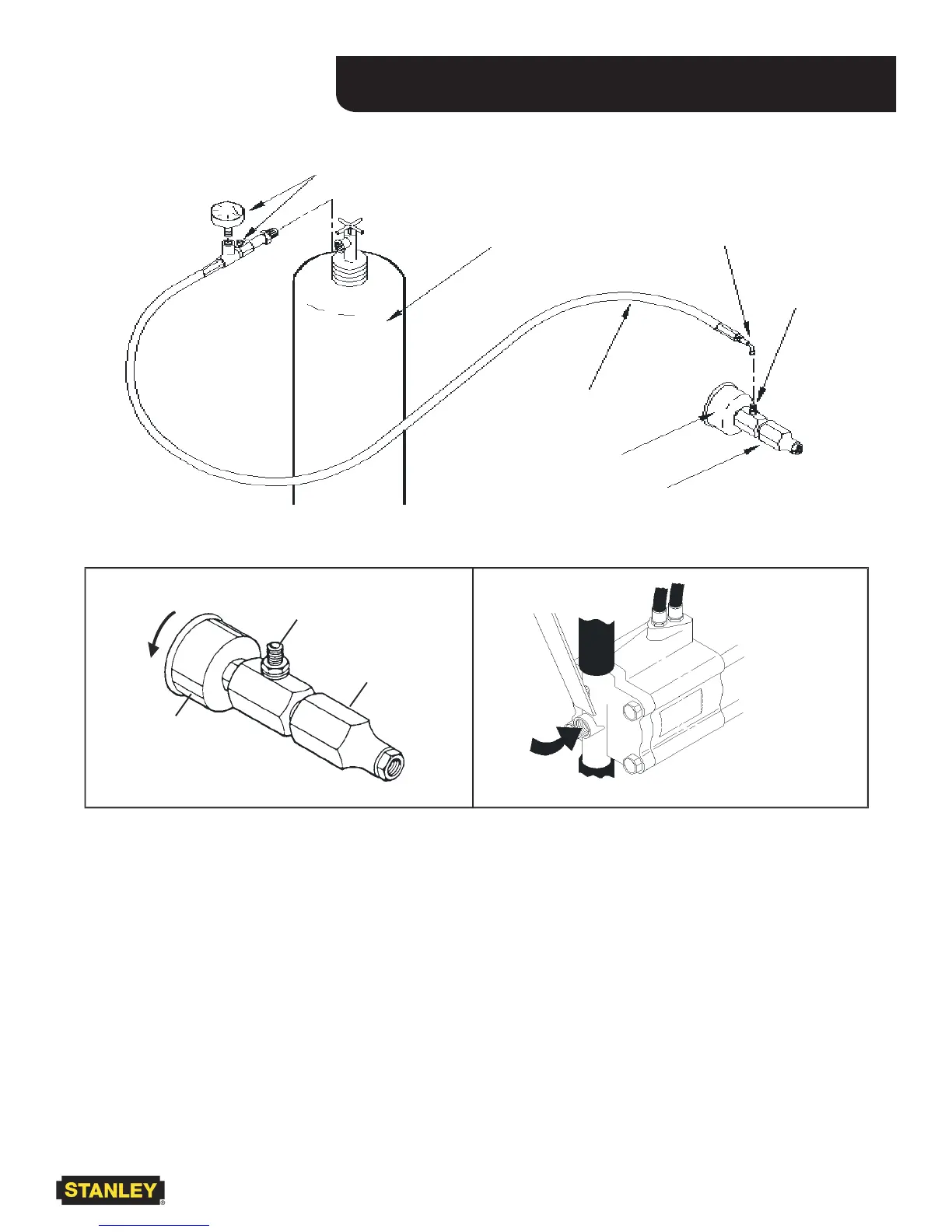

CHARGING THE ACCUMULATOR
GAUGE
CHUCK
TESTER CHARGING
VALVE
CW
ACCUMULATOR TESTER ( P/N 02835 )
Figure 2
LOCATION OF CHARGING VALVE
Liquid Filled Gauge w/Snub Valve
Nitrogen Tank
( )
Not included in Kit
Gauge
Hose
Chuck
Charge Fitting
Charging Valve
31254 ACCUMULATOR CHARGE KIT

Hose, Charge Fitting, 02835 Tester, and Box
(not pictured)
02835 TESTER
Figure 2. Charging the Accumulator
