ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal
injury, turn tool off and disconnect battery pack
before making any adjustments or removing/
installing attachments or accessories. An accidental
start‑up can causeinjury.
Description (Fig.A)

WARNING: Never modify the power tool or any part of it.
Damage or personal injury couldresult.
1
On/Off switch
2
Lock-off lever
3
Chain brake / front hand guard
4
Guide bar
5
Saw chain
6
Sprocket cover
7
Battery Pack
8
Bar adjust locking knob
9
Chain tensioning knob
10
Oil level indicator
11
Guide bar scabbard
12
Rear handle
13
Front handle
14
Battery housing
15
Battery release button
16
Oil cap (not shown)
Intended Use
The SFMCCS630 chainsaw is designed for cutting limbs or logs
up to 26cm indiameter.
DO NOT use under wet conditions or in presence of flammable
liquids orgases.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.
• Young children and the infirm. This appliance is not
intended for use by young children or infirm persons
without supervision.
• This product is not intended for use by persons (including
children) suffering from diminished physical, sensory or
mental abilities; lack of experience, knowledge or skills
unless they are supervised by a person responsible for their
safety. Children should never be left alone with thisproduct.
Date Code Position (Fig.A)
The date code
18
, which also includes the year of manufacture,
is printed into thehousing.
Example:
2022XX XX
Year and Week of Manufacture
3 Li-Ion battery packs (C3, D3, G3, L3, M3, P3, S3, T3, X3, Y3
models)
1 Instruction manual
NOTE: Battery packs, chargers and kitboxes are not included
with B models. Battery packs and chargers are not included with
NT models.
• Check for damage to the tool, parts or accessories which may
have occurred duringtransport.
• Take the time to thoroughly read and understand this manual
prior tooperation.

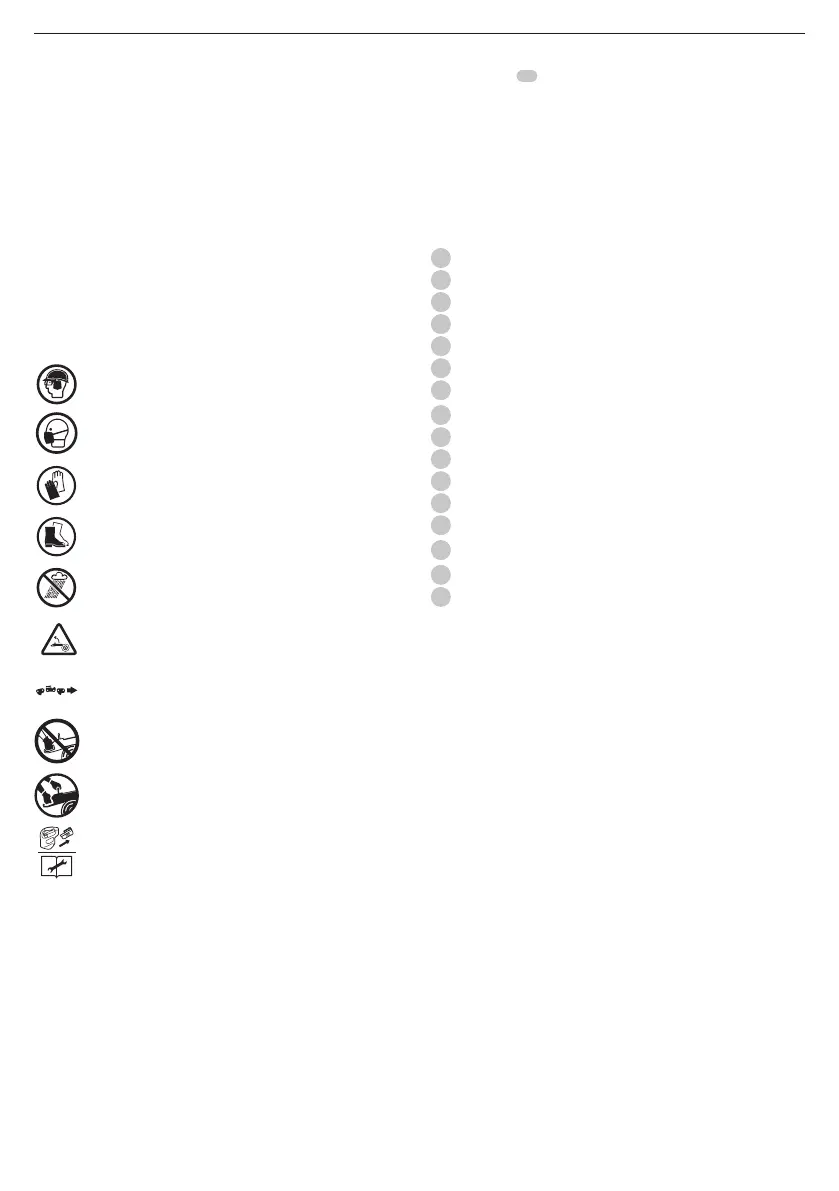

Markings on Tool
The following pictograms are shown on the tool:
a
Read instruction manual beforeuse.
Wear eye, ear and head protection
Wear respiratory protection
Wear gloves.
Wear proper foot protection.
Do not expose the tool to rain or high humidity or leave
outdoors while it israining.
Contact of the guide bar tip with any object should
beavoided.
Rotational direction of the sawchain.
Always use two hands when operating thechainsaw.
Switch the tool off. Before performing any maintenance
on the tool, remove the battery from thetool.

Stanley Fatmax SFMCCS630 Specifications

General

Brand	Stanley
Model	Fatmax SFMCCS630
Category	Chainsaw
Language	English
