Stanley Fionn User Manual

8

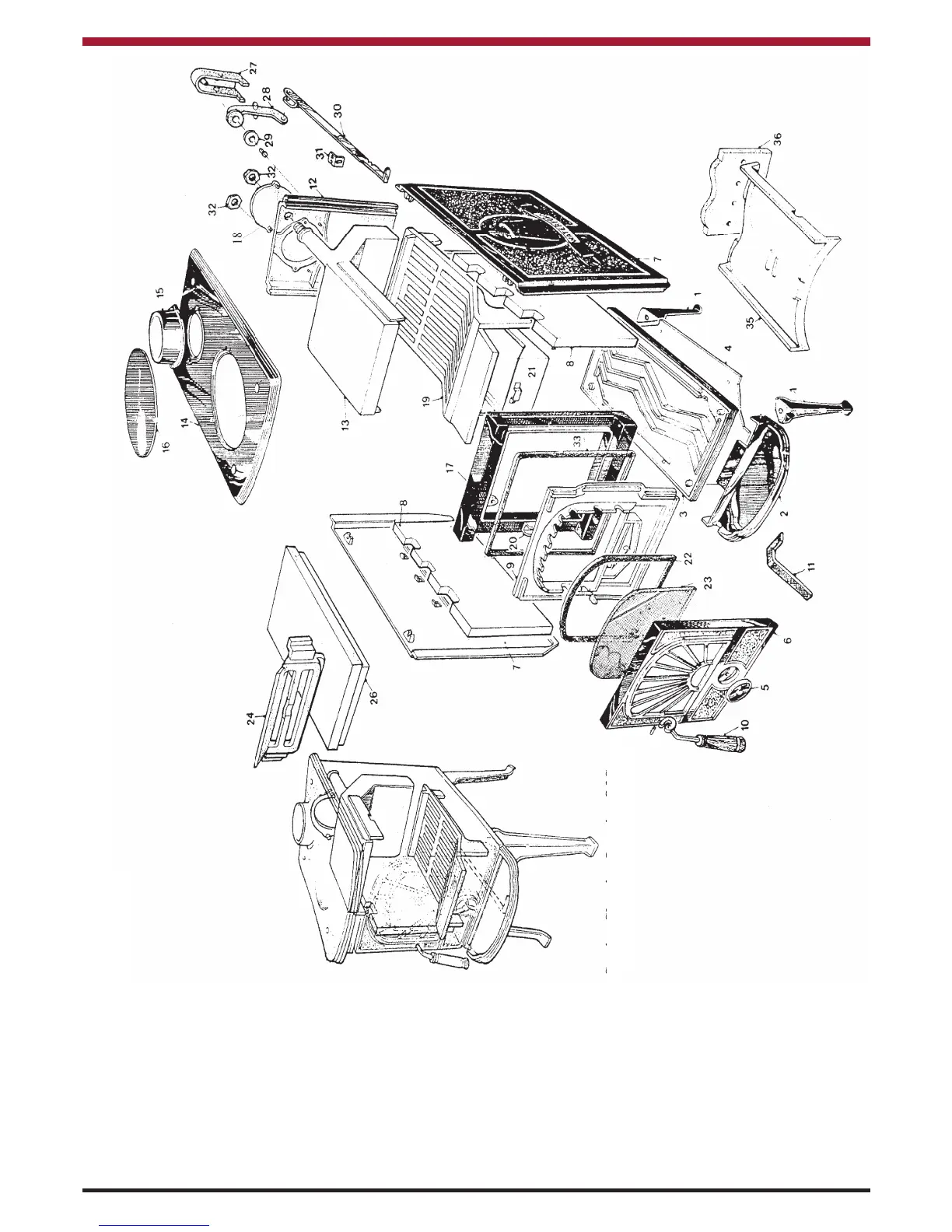

1. LEG 2. ASH TRAY 3. BASE 4. BASE BAFFLE 5. SPIN VALVE 6. FIRE DOOR 7. SIDE 8. SIDE BRICK 9. INSIDE FIRE DOOR 10. DOOR LATCH 11. ASH PAN LIFTING TOOL 12. BACK PANEL 13. BOILER (INDIRECT
CYLINDER)
14. HOB 15. SPIGOT 16. HOTPLATE 17. FRONT FRAME 18. BACK SEALING PLATE 19. COAL GRATE (COAL
BURNING)
20. DOOR CATCH 21. ASHPAN (COAL BURNING) 22. WINDOW INSULATION 23. WINDOW GLASS 24. FIRE FENCE (WOOD
BURNING)
26. HEARTH PLATE (WOOD
BURNING)
27. BACK AIR VALVE HOUSING 28. BACK AIR VALVE 29. SEAL TO AIR VALVE 30. CONNECTING ROD TO
BACK AIR VALVE
31. GUIDE BRACKET TO BACK
AIR VALVE
32. NUT TO BOILER 33. DOOR SEALING ROPE 35. TOP BAFFLE (NON-BOILER) 36. BACK BAFFLE (NON-
BOILER)
EXPLODED VIEW
SECTION SHOWING INTERIOR OF STOVE
