Stanley Magic-Swing User Manual

Pg. 7
203917 Rev. D
11/2019
Toll Free: 800 7 ACCESS (1 800 722-2377)
Service: 888-DOOR-444
ONE WAY TRAFFIC
Swinging doors serving only ingress
or egress. An “ARROW” sign must be
visible from the approach side and an
international
“DO NOT ENTER” must be
visible from the non-approach side.
Locate and affix the decals on the door
50” +/- 12” from the finished floor.
Place
“AUTOMATIC DOOR” decal
directly below both signs.
KNOWING ACT DOORS
The door shall have signage that states
“ACTIVATE SWITCH TO OPERATE”
along with other signage. The
“ACTIVATE SWITCH TO OPERATE”
sign(s) should be on the side(s) of the
door having the Knowing Act switch.
TWO WAY TRAFFIC
Swinging doors serving both ingress
and egress must be marked with
“CAUTION AUTOMATIC DOOR” decal
visible from the swing side of the door.
Locate and affix the decals on the door
50” +/- 12” from the finished floor. An
“ARROW” sign shall be visible from the
approach side of a swinging door
mounted on the door also at a height of
50” +/- 12” from the finished floor.
50" +/- 12"
50" +/- 12"
Decals for
One-Way
Traffic
50" +/- 12"
Decals for
Two-Way
Traffic
50" +/- 12"
A “Daily Safety Check” decal has also been provided as a reminder that your automatic swing door
equipment must be checked daily for safe operation. Affix this decal to the inside jamb tube.
For egress doors with key-operated locking devices on the egress side, signage stating
“THIS DOOR TO REMAIN UNLOCKED WHEN THE BUILDING IS OCCUPIED” must be posted on or
next to the door on the egress side. This decal is not supplied as part of the decal kit.

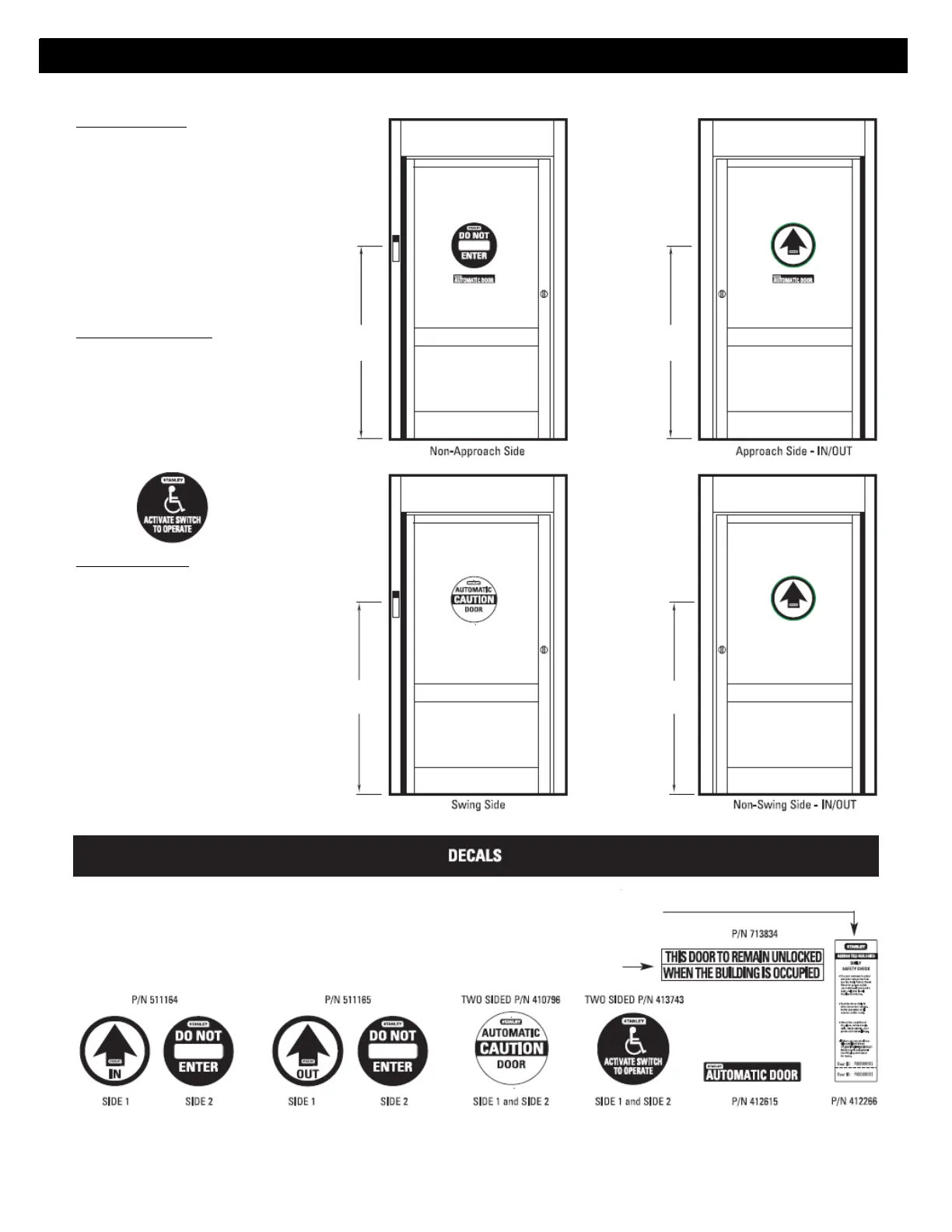

TYPICAL STANLEY SWING DOOR DECAL APPLICATION
