HOSE FITTINGS & CONNECTIONS

12 ► MHP3 Diesel User Manual

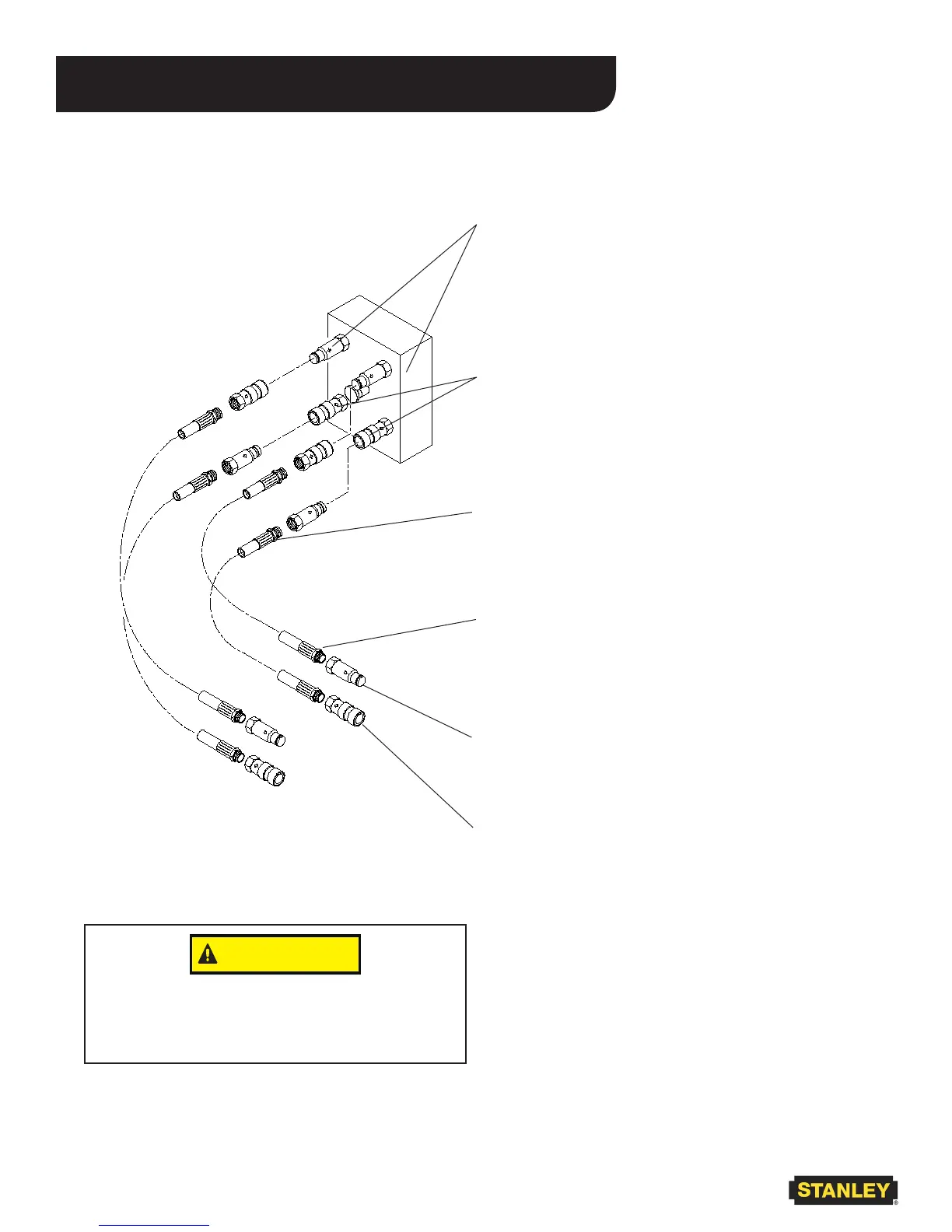

HOSE & FITTING CONNECTIONS FOR DUAL TOOL

CIRCUIT

HTMA 3/8 INCH FEMALE QUICK DISCONNECT

COUPLER (STANLEY P/N 03972 COUPLER BODY or

STANLEY P/N 03971 COUPLER SET – nose & body)

HTMA 3/8 INCH MALE QUICK DISCONNECT

COUPLER (STANLEY P/N 03973 COUPLER NOSE or

STANLEY P/N 03971 COUPLER SET – nose & body)

1/2 INCH I.D. HOSE, 25 FT TO 50 FT LONG.

(FOR 25 FEET, STANLEY P/N 31972 HYDRAULIC

HOSE or STANLEY P/N 58633 TWINNED HYDRAULIC

HOSES or 58451 2-wire braid HYDRAULIC HOSE)

(FOR 50 FEET, STANLEY P/N 31848 HYDRAULIC

HOSE or STANLEY P/N 58634 TWINNED HYDRAULIC

HOSES or 58448 2-wire braid HYDRAULIC HOSE)

1/2 INCH MALE PIPE HOSE END

HTMA 1/2 INCH MALE QUICK DISCONNECT COU-

PLER (STANLEY P/N 03975 COUPLER NOSE or

STANLEY P/N 03974 COUPLER SET – nose & body)

HTMA 1/2 INCH FEMALE QUICK DISCONNECT COU-

PLER (STANLEY P/N 03976 COUPLER BODY or

STANLEY P/N 03974 COUPLER SET – nose & body)

CAUTION

Before disconnecting hydraulic tools, ensure the tool

circuit control levers are in the down position and the

throttle is in the "SLOW" position.
