MHP3 Diesel User Manual ◄ 23
MHP3 DIESEL PARTS

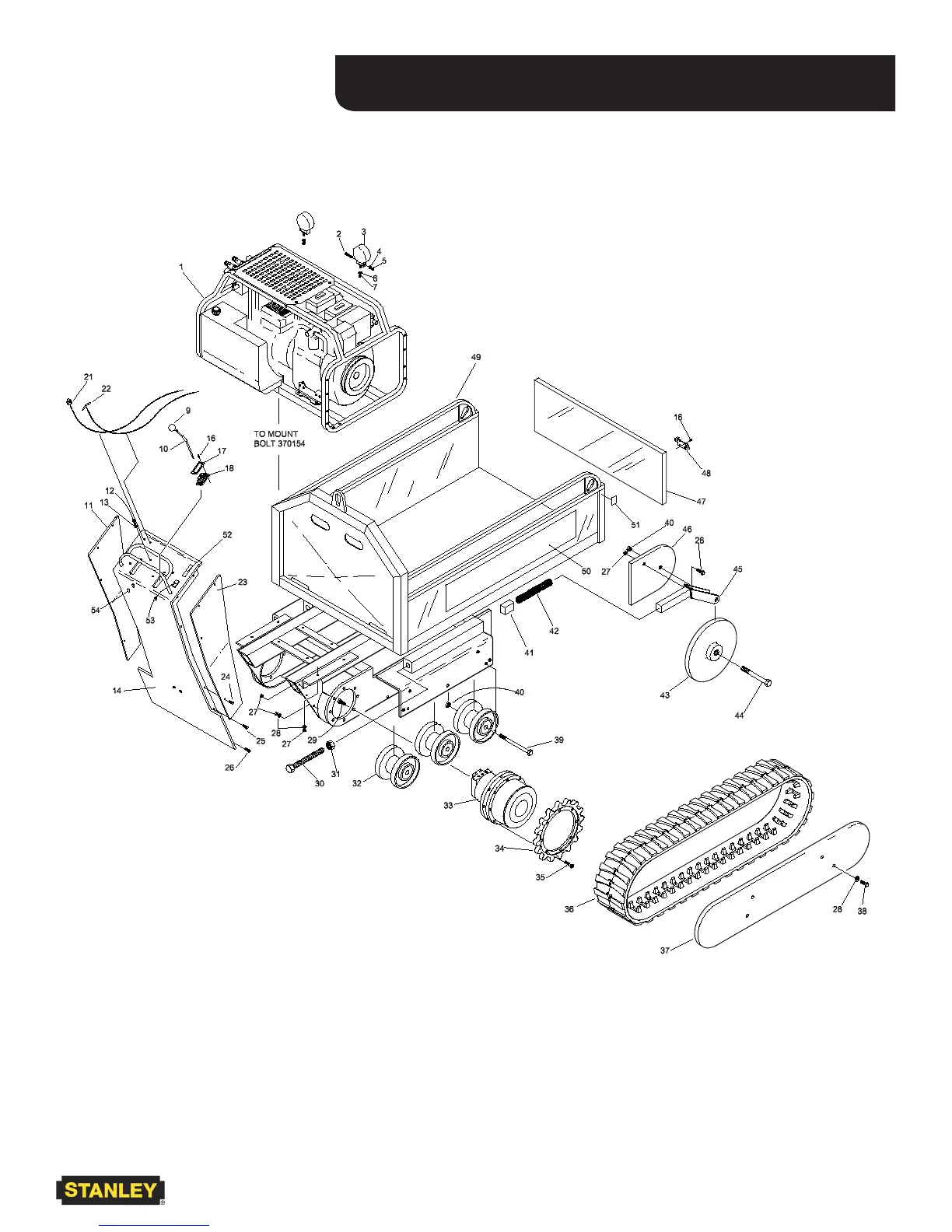

MHP3 DIESEL MAJOR ASSY PARTS ILLUSTRATION
• The track tension is adjusted with the unit lifted off
the ground. Between the drive wheel and front idler
wheel, there are 3 smaller rollers.
• Once the unit is lifted off the ground, adjust the track
tension to achieve 3/8” to ½” sag below the center
small roller.
ADJUSTING TRACK TENSION
