Stanley PS161-6 - Power Distribution Module Details

02140-11-E Copyright
©
Stanley Security, Inc. 2014
5/9

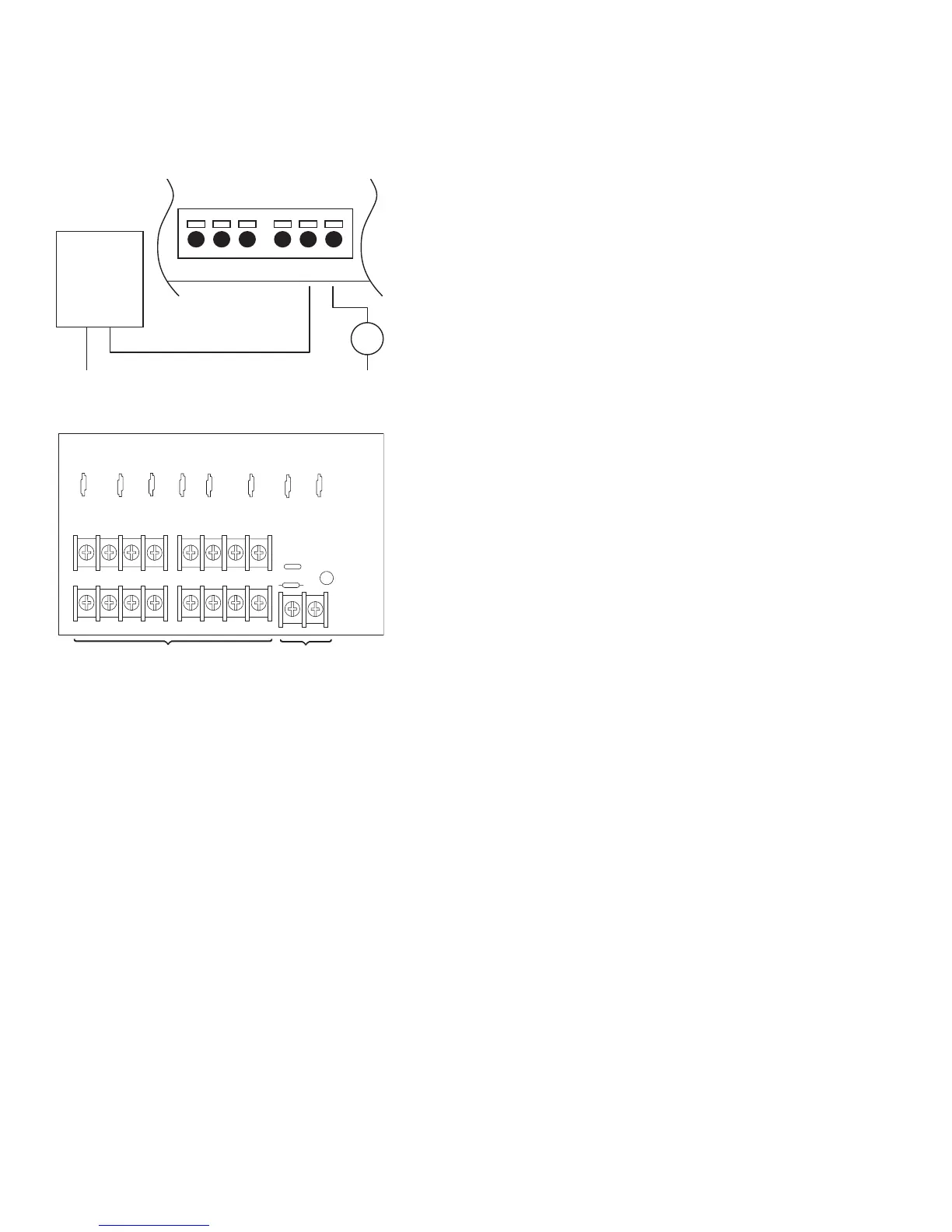

Figure 3 - Battery trouble indication
For Canadian use, a red indicating lamp must be visible from the exterior of this enclosure. Wire one leg of a UL Listed, power-limited power source to the
indicating lamp. Wire the second leg of the power source to the indicating lamp in series with the battery fail relay contact terminals marked [BAT FAIL - C,
NO].
Power Distribution Module:
Figure 4 - PD8ULCB - Power Distribution Board
Power-Limited Outputs
NC C NO NC C NO
BAT FAILAC FAIL
POWER
SOURCE
RED INDICA
TING
LAMP
N
COMMON POWER OUTPUTS
P
FUSED POWER OUTPUTS
1 2 3 4 5 6 7 8
D1
INPUT
R1
LED
From Power Supply
Board
(Factory Installed)
DC Output to devices
1P-8P Power Outputs,
1N-8N Common Outputs
()
