12 13
PIC. 6
PIC. 7
DUMP
TUBE
HOSE
CONNECTION

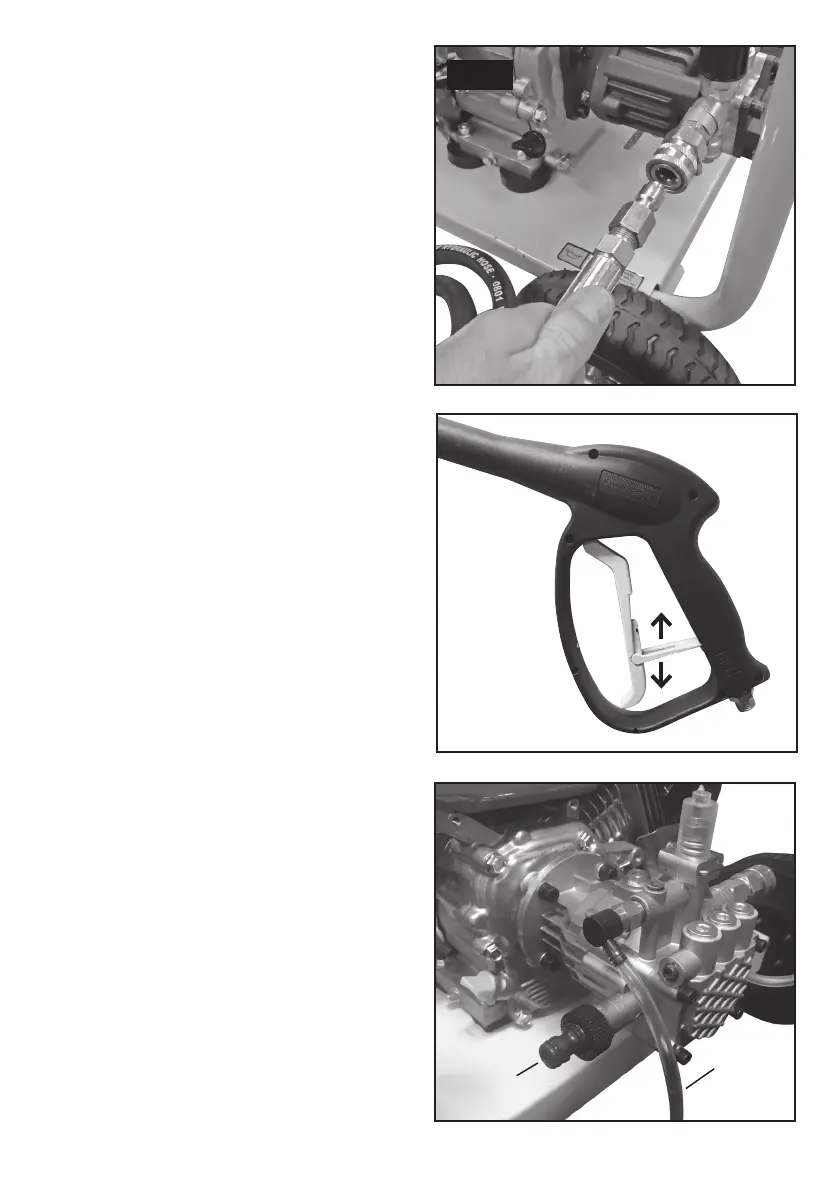

Pressure Hose to Gun Connection
Push hose fitting onto gun fitting and tighten nut fitting
To remove, loosen nut and remove hose.
Gun Safety Lock
Pic.6
To stop accidental use of the trigger, the gun is fitted with
a safety lock.
To lock;
Push lever up
To unlock;
Push lever down
Garden Connection
Pic. 7
Screw black garden hose connection to pump
Dump Tube
Pic. 7
During times of no water flowing whilst motor is running,
the pump will heat up. Periodically the pump will dump hot
water through the tube to cool down.
Hose to Pump
Pic. 5
1. Attach the high pressure hose to the pump. Pull back
collar and push male connector in fully. Release collar.
Ensure that the hose does not touch the muffler or goes
over the top of the fuel tank.
2. Have hose lay to the back of the pump and curve to the
hose hanger.
Note: Do not allow high pressure hose to touch the muffler.
Damage will occur and will not be covered by warranty.
PIC. 5
UP (LOCK)
DOWN
(UN-LOCK)
