Star Trac Pro Stepper - Diagnostics - LED Test

Pro Stepper Service Manual
Pro Stepper Service Manual 620-7619 Rev B
7

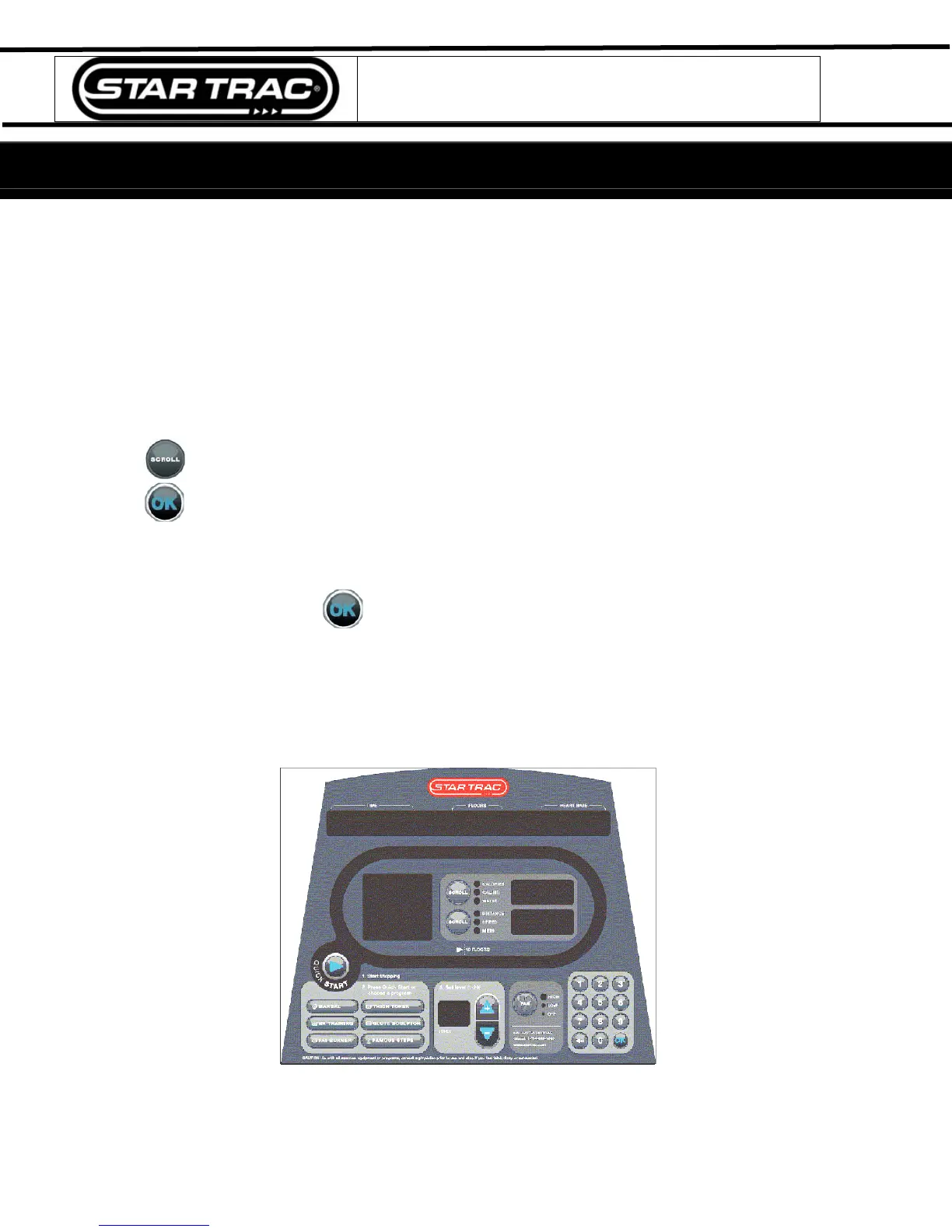

LED Test
The LED Test can be used to verify that all LED (lights) are functioning on the display assembly.
To engage the LED Test
Enter the Maintenance Mode (see Settings – Maintenance Mode).
Press until LED Test is displayed in the information window.
Press to enter the LED Test. All lights on the display should be on.
Check for any burned out lights.
To exit the LED Test, press .
If any of the LED’s do not illuminate, they may not be functioning and the display electronics
should be replaced.
Diagnostics - LED Test
