10

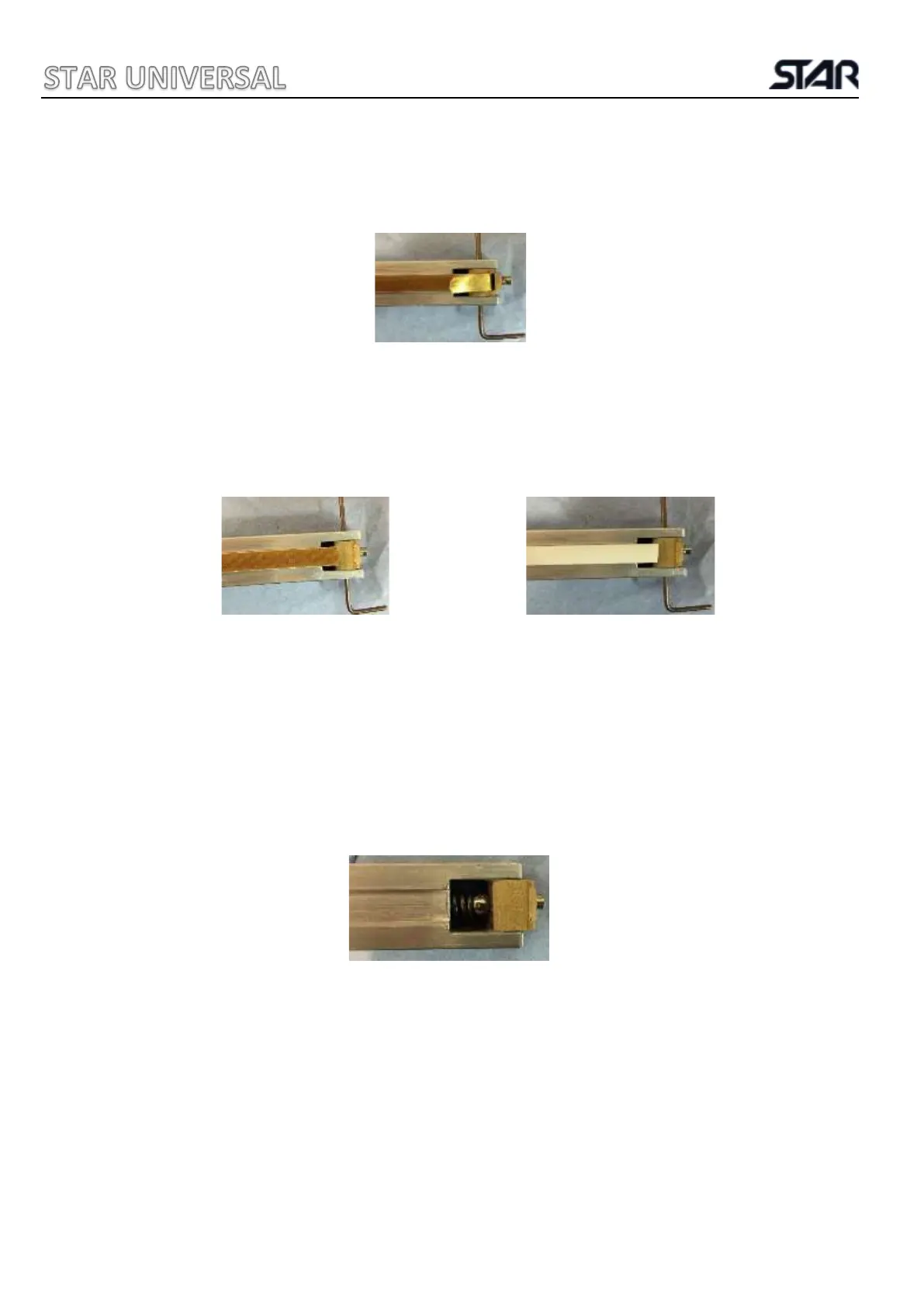

Brass Shim: Remove barrier tape and element ribbon as above. Remove the brass clamp by fully
unscrewing the Allen bolt. Replace the brass shim, attach the brass clamp and re fit the ribbon
and tape as above.
Silicone Rubber/Sponge – Heated Jaw: Remove the barrier tape and element ribbon as above.
Peel the silicone rubber away from the aluminium sealing jaw and clean any residual adhesive
left behind. Apply a NARROW bead of silicone adhesive to the channel, cut a piece of silicone
rubber to length and press into the channel ensuring a smooth surface. Replace the sealing
ribbon and barrier tape as above.
Clamp Bar Rubber: Remove the old barrier tape and rubber and clean the aluminium where it
was mounted. Apply a bead of silicone adhesive to the aluminium and stick the new rubber on.
Replace the barrier tapes over the rubber. To allow the adhesive to set fasten the top and
bottom clamp jaws together for around 2 hours.
Compression Spring and Ball Bearing: Remove barrier tape and element ribbon as above,
remove loading pin taking extra care due to the spring being under tension. Replace
Compression spring and ball bearing. Refit element ribbon and tape as above.
