Star 106 - Wiring Diagrams; Star 106 - 106 C Solenoid Wiring

15
SW1 ON/OFF SWITCH SW2 TRIGGER SW3 VACUUM PUMP SWITCH SKT 3 PIN PLUG/SOCKET VP VACUUM PUMP R1 POWER RELAY SOL SOLENOID D1 DIODE RS1 JAWS CLOSED MICRO SWITCH TR1 MAIN TRANSFORMER TH126 CIRCUIT BOARD F1 SOLENOID FUSE F2 MAIN FUSE TC THERMOCOUPLE
N/A
STAR UNIVERSAL (GOSPORT) LTD
R1
12 WIRING DIAGRAMS

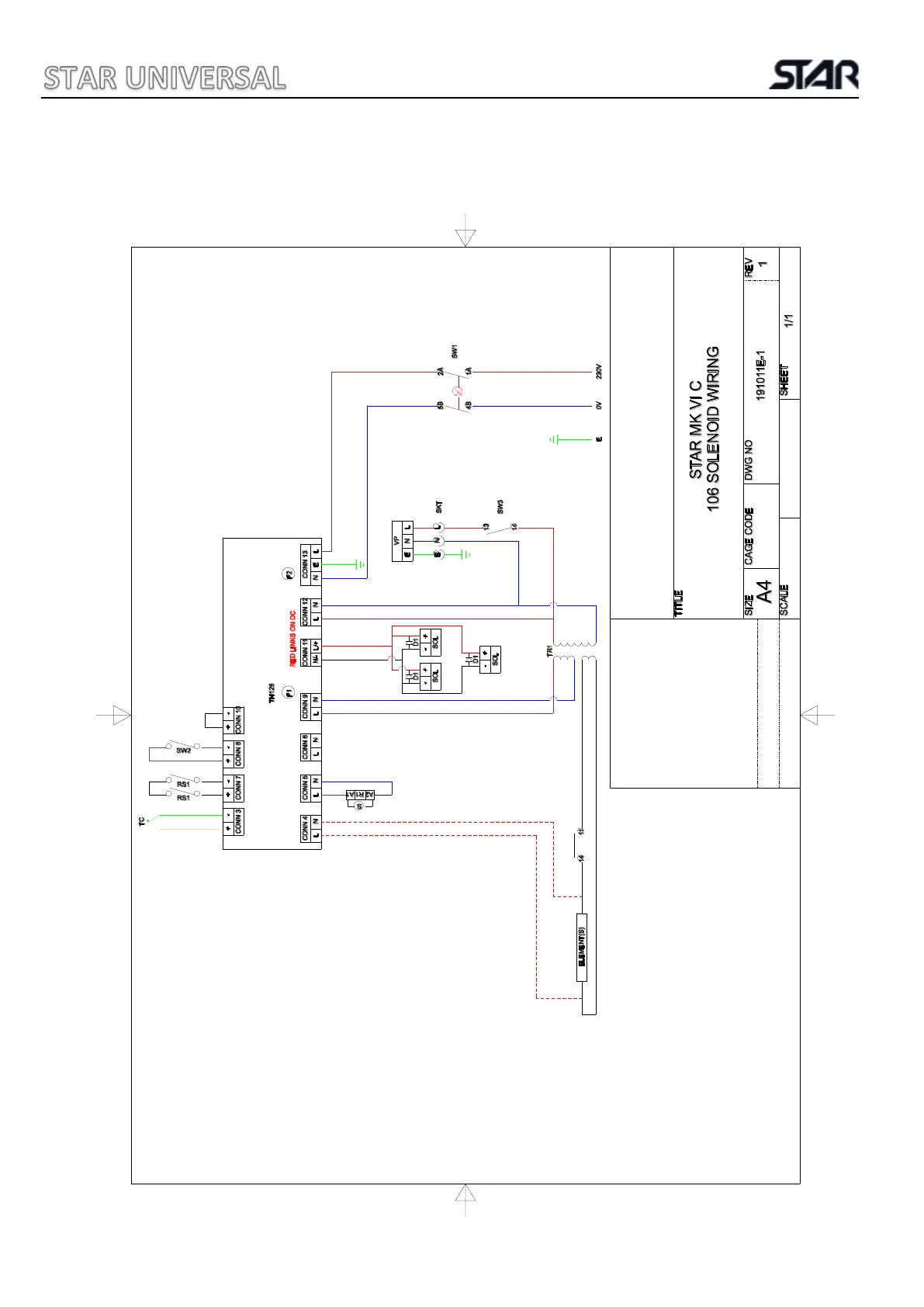

STAR 106 - 106C SOLENOID
(No connection 3 if it’s not a STAR 106C)
